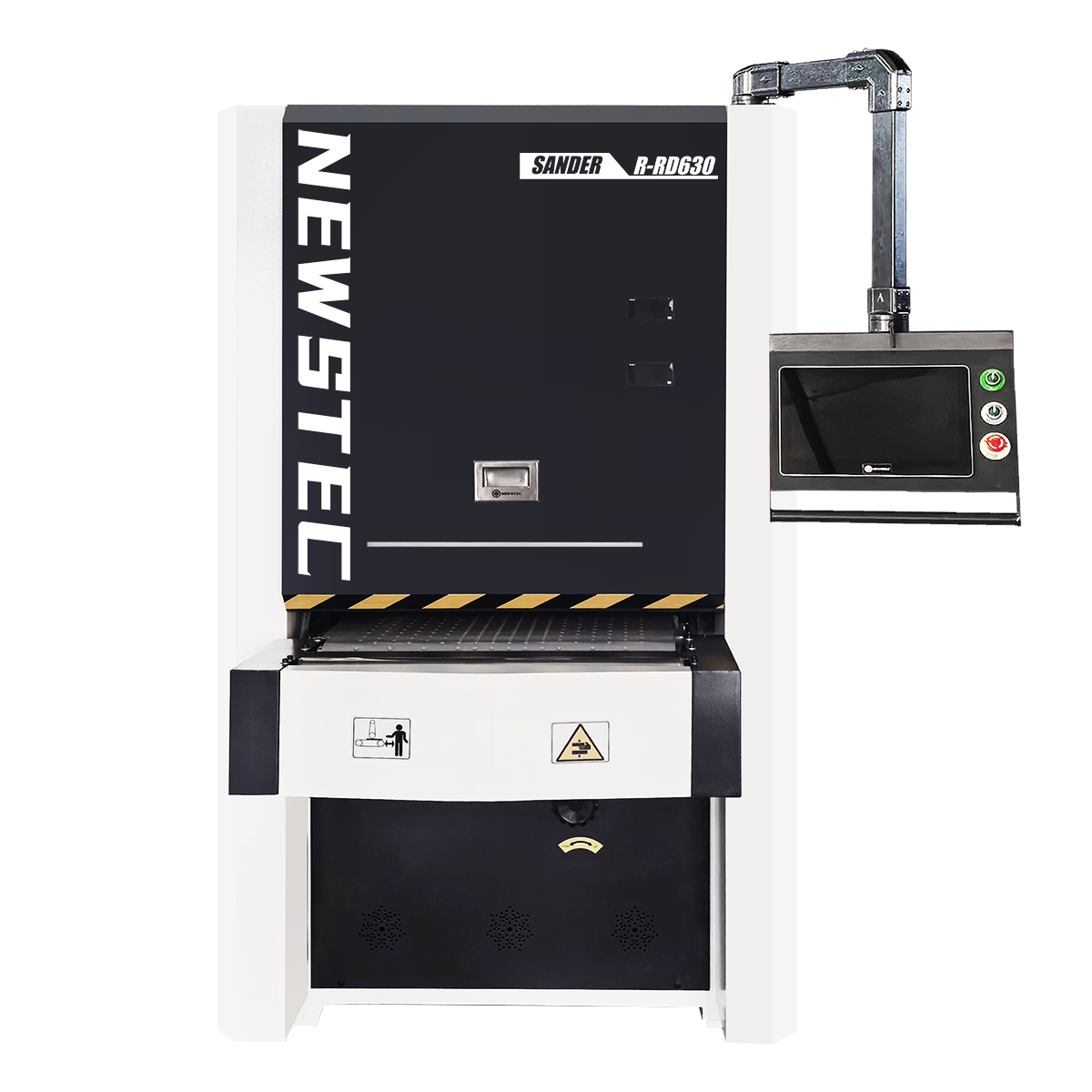

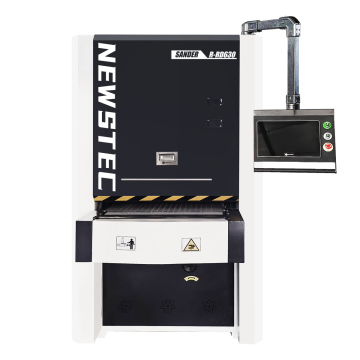

China R-RD630 Small Metal Sheet Deburring and Chamfering Machine - Quality Suppliers and Trusted Factory Equipment
| Working width（mm） | 800 |
| Min.Working length（mm） | 300 |
| Working thickness（mm） | 0-100 |
| Abrasive belt motor（kw） | 11KW |
| Rotary brush motor power（kw） | 1.5kwX2 |
| Total Power | 28kw |
| Transmission motor power（kw） | 4 |
| Lift motor power | 0.55 |
| No.1 unit of belt shelf | 210mm |
| Adsorption | 11kw 2900RPM |
| Controller system | Delta PLC |
| Rotary brush size(mm) | 300x300x25 |
| Rotary brush quantity | 4 |
| Voltage | 220v/380V 3PH |
| Power | 50/60HZ |
| Abrasive belt size（mm） | 650*1900mm |
| Overall dimensions（mm） | Machine: 2700*1500*2000mm Vacuum pump: 1000*1000*2000mm |
| Gross Weight(with wooden case)（kg） | 3200KGS |
Deburring machines are widely used in industries such as automotive manufacturing, aerospace, electronics, medical devices, and machinery manufacturing.
Metal deburring machines play a vital role in modern metal processing. They not only improve the quality and precision of parts but also enhance the production environment, efficiency, and safety. As the manufacturing industry continues to demand higher precision and surface quality, the automation and intelligence of deburring machines are constantly evolving, making them an indispensable piece of equipment in modern metal processing production lines.
UNIT STRUCTURE
Each unit is independently controlled and can be combined as needed.
ROTARY
Deburring, chamfering and finishing of internal and external contours.
MOTOR
Copper core motor, stable and durable, long service life.
PLATFORM LIFTING
0-100mm lifting platform precise lifting, high stability and large load-bearing capacity.
The machine is designed for various metal parts, providing deburring, chamfering, and surface finishing for materials used in automotive, aerospace, and electronics industries.
The system features 4 rotary brushes that handle both internal and external contours simultaneously, ensuring uniform edge rounding and consistent surface quality that manual processing cannot match.
The machine features a precise platform lifting system that can accommodate workpieces with a thickness ranging from 0mm up to 100mm.
Yes, each unit structure is independently controlled, allowing for flexible combinations to meet specific processing requirements and production line configurations.
The machine utilizes a Delta PLC controller system, which provides an intuitive interface, making the automated deburring process much safer and simpler than traditional manual methods.
The machine is equipped with high-quality copper core motors designed for stability and durability. Regular inspection and standard cleaning will ensure a long service life.
