China Metal Sanding Machine Suppliers - High-Quality Wide Belt Grinding Factory Equipment for Surface Treatment
Technical Parameters
| Working width(mm) | 630 |
| Min.Working length(mm) | 300 |
| Working thickness(mm) | 0-110 |
| First motor(kw) | 11 |
| Second motor(kw) | 7.5 |
| Total Power | 19.97 |
| Transmission motor power(kw) | 1.1 |
| Abrasive belt size(mm) | 650*1900 |
| Overall dimensions(mm) | 1800*1200*2100 |
| Weight(kg) | 1300 |
Product Description
Automatic sheet metal deburring machine mainly includes control system, power system, conveying system, lifting system, and grinding system. The power system provides machine power. According to the length and thickness of the work-piece, the corresponding number is input by the control system, the lifting system adjusts the height of the platform, and the conveying system sends the work-piece to the grinding system to complete the grinding process of the work-piece.
Automatic Wide Belt Sheet Metal Sander wild uesd in sheet metal processing, aviation, aerospace, electronics, subway accessories, automobiles, food machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, metal decoration, advertising etc.
SANDING BELT
By grinding the stainless steel, carbon steel, molybdenum plate, etc., cleaning the plate due to laser cuting, stamping burs, grinding to remove the oxide layer, deburing, so as to show the metal bright surface, processing plate width 600mm, 1000mm, 1300mm, 1600mm, etc.
CONVEYOR BELT
Working table for the thickened marble, conveyor belt for five layers of rubber material, not afraid of rain, not afraid of sun, long service life.
INTERNAL CIRCUIT
All the electrical parts are made of Chint electric appliances with stable performance. The machine internal wire connection is clear, no clutter.
CONTROL PANEL
The control panel is simple and clear, the self-reset control button has high control precision and easy operation.
Video Demonstration

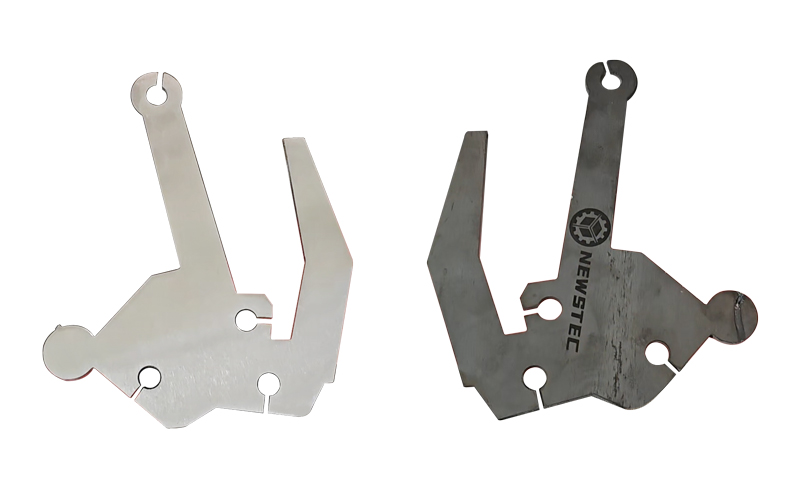

Application & Samples
Rust removal, deburring, oxidation removal, wire drawing grinding and polishing of the metal plate.
Frequently Asked Questions
What materials can this machine process?
It is ideal for stainless steel, carbon steel, molybdenum plates, and other metal sheets requiring deburring or oxide layer removal.
What is the maximum working width of the machine?
The standard working width for this model is 630mm, but we also offer processing widths of 1000mm, 1300mm, and 1600mm.
Is the machine easy to operate for new users?
Yes, the control panel is designed to be simple and clear, featuring self-reset buttons with high precision for easy operation.
What are the main applications for this sheet metal sander?
It is widely used for rust removal, deburring after laser cutting or stamping, oxidation removal, and wire drawing polishing.
How durable is the conveyor belt system?
The conveyor belt is made of five layers of rubber material, which is resistant to environmental factors like rain and sun, ensuring a long service life.
What kind of electrical components are used in the machine?
We use high-quality Chint electric appliances to ensure stable performance and clear, organized internal wiring.
