1300mm Wide Belt Metal Sanding Machine for Surface Treatment - China Suppliers & Factory Quality
Parameters
| Working width(mm) | 1300 |
| Min.Working length(mm) | 300 |
| Working thickness(mm) | 0-110 |
| First motor(kw) | 11 |
| Second motor(kw) | 7.5 |
| Total Power | 19.97 |
| Transmission motor power(kw) | 1.1 |
| Abrasive belt size(mm) | 1320*2200 |
| Overall dimensions(mm) | 1800*1200*2100 |
| Weight(kg) | 1300 |
Product Description
The equipment is widely used in a variety of metal materials such as carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, etc. For the oxide layer formed after long-term storage or processing, the sander can peel off the oxide skin on the metal surface layer by layer through the precisely controlled grinding force, and restore the original gloss and performance of the substrate. In the rust removal treatment, it can effectively remove the rust, rust and oxidation spots on the surface of the plate.
It adopts a working mode of multiple sets of sanding belts, and ensures uniform force on the metal surface through an adjustable speed linear conveying system. The surface grinding function can achieve different levels of precision processing according to needs, from rough grinding to remove surface defects to fine grinding effects can be accurately completed, and at the same time, it can eliminate scratches, pits and other defects on the surface of the plate.
This equipment can be seamlessly connected with production lines such as laser cutting and CNC processing. Whether it is strong rust removal of thick plates or fine grinding of thin plates, it can maintain stable processing quality and significantly improve the surface finish and flatness of metal plates, laying a good foundation for subsequent painting, welding and other processes.
SANDING BELT
By grinding the stainless steel, carbon steel, molybdenum plate, etc., cleaning the plate due to laser cuting, stamping burs, grinding to remove the oxide layer, deburing, so as to show the metal bright surface, processing plate width 600mm, 1000mm, 1300mm, 1600mm, etc.
CONVEYOR BELT
LED touch screen controls data settings. Human-machine interaction is more intuitive and easy to understand.
INTERNAL CIRCUIT
All the electrical parts are made of Chint electric appliances with stable performance. The machine internal wire connection is clear, no clutter.
CONTROL PANEL
The control panel is simple and clear, the self-reset control button has high control precision and easy operation.
Video
Application

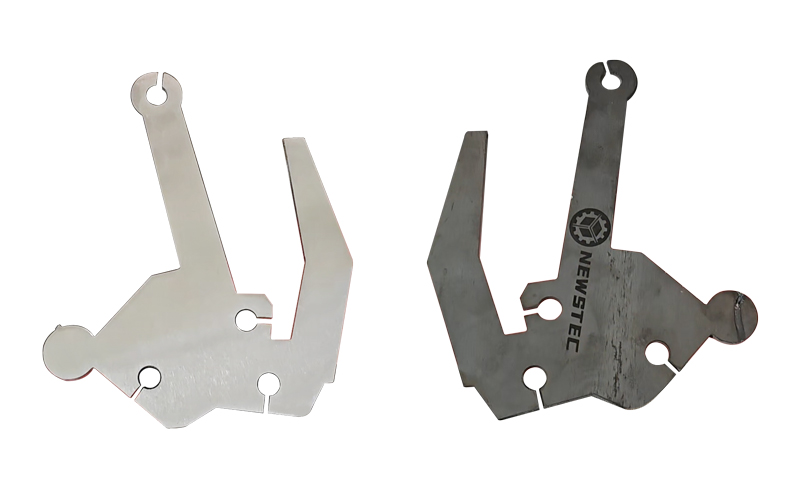

Rust removal, deburring, oxidation removal, wire drawing grinding and polishing of the metal plate.
Frequently Asked Questions
What types of metal materials can this machine process?
The equipment is compatible with a wide range of metals, including carbon steel, stainless steel, aluminum, copper, titanium alloys, and molybdenum plates.
Can it remove heavy rust and oxide layers?
Yes, the machine uses multiple sanding belts and precisely controlled grinding force to peel off oxide skins and remove rust from metal surfaces layer by layer.
What are the available processing widths for this equipment?
We offer multiple processing width options including 600mm, 1000mm, 1300mm, and 1600mm to suit different production requirements.
Is the machine easy to operate for new users?
Absolutely. The machine features an LED touch screen for intuitive data setting and a simple, clear control panel with self-reset buttons for high precision and ease of use.
Can this machine be integrated into an automated production line?
Yes, it is designed to connect seamlessly with existing production lines such as laser cutting and CNC processing systems to improve overall efficiency.
What brand of electrical components are used in the machine?
All internal electrical parts are high-quality Chint electric appliances, ensuring stable performance and a clear, organized internal circuit.
