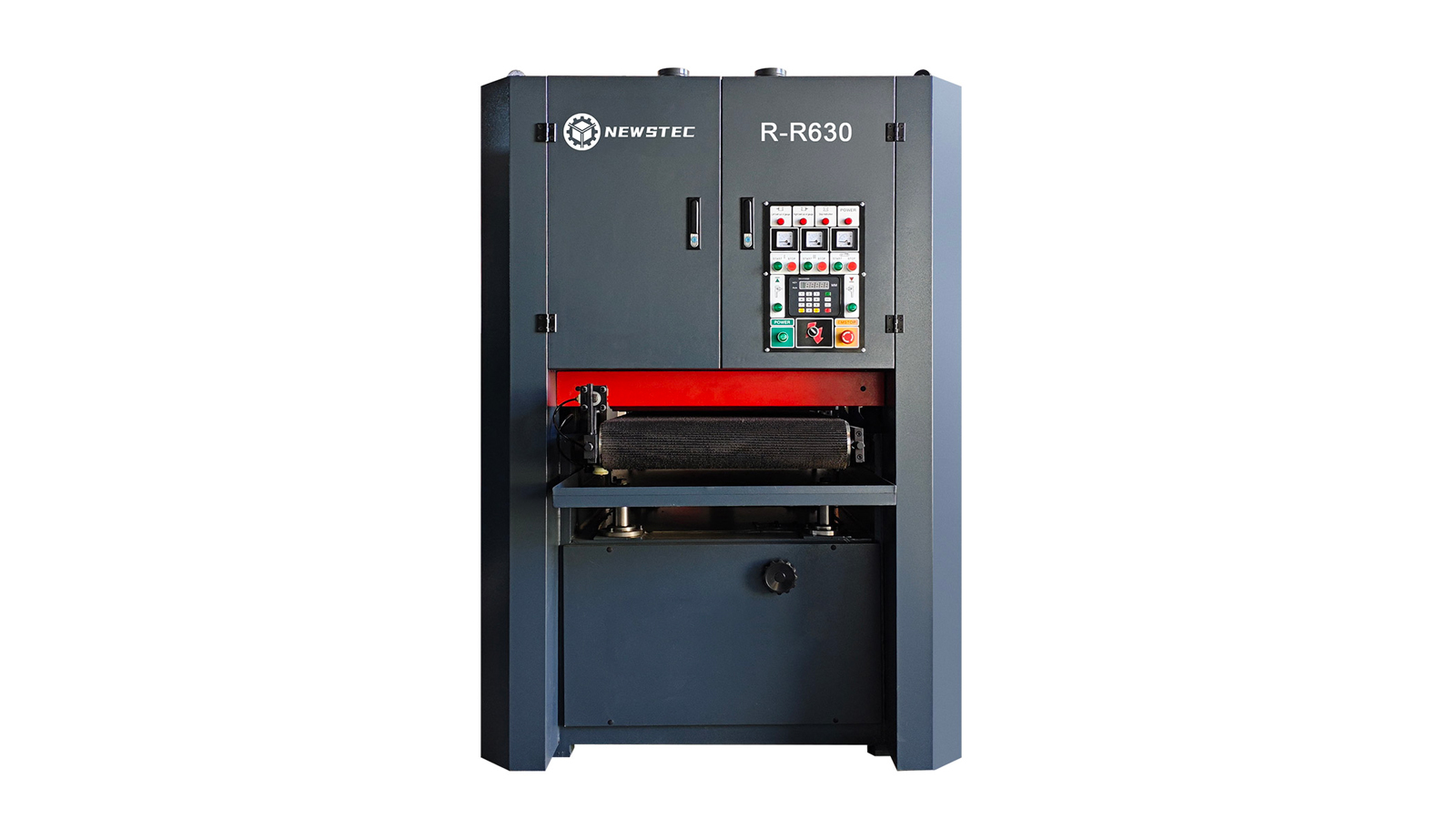

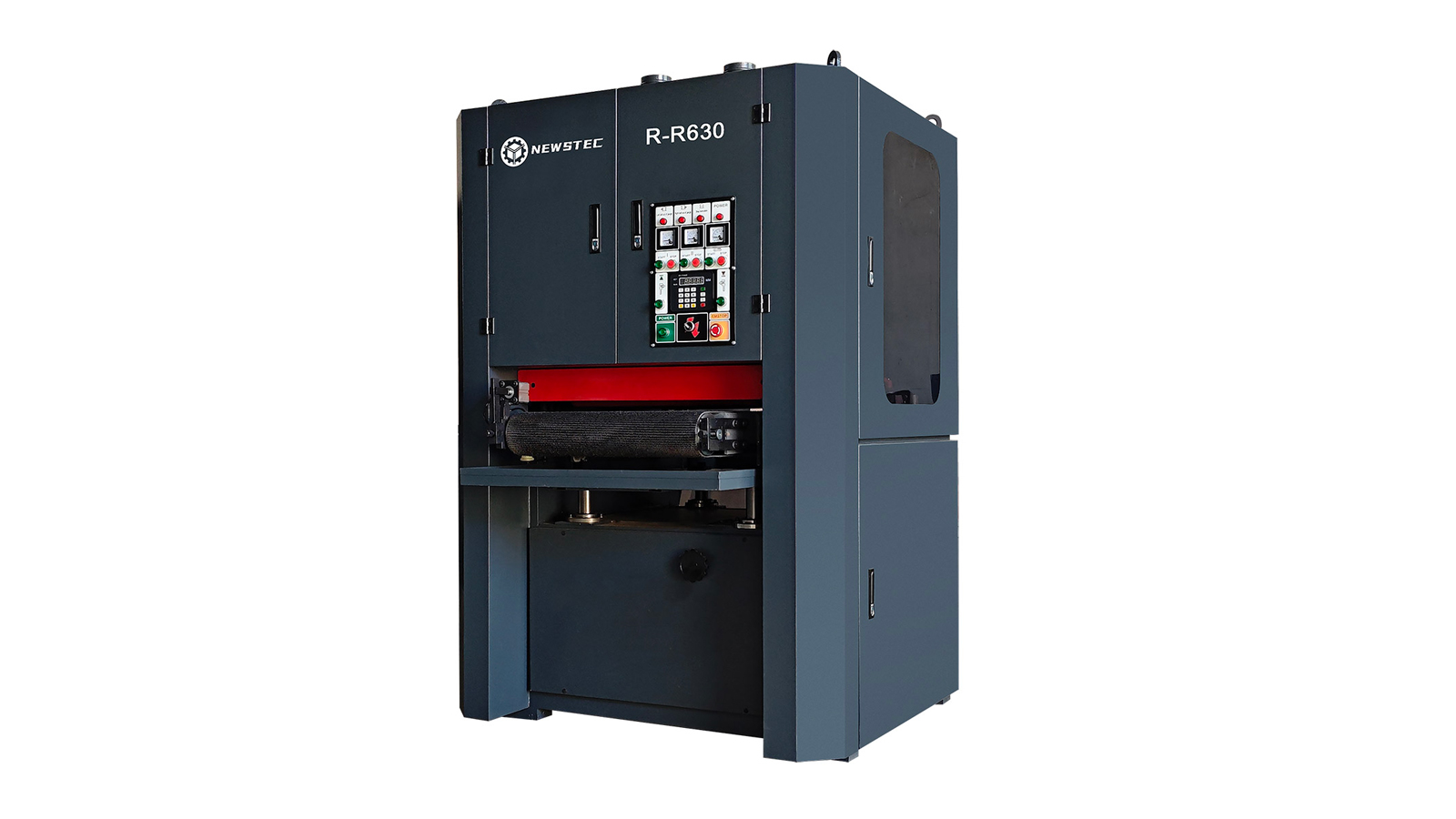

Wet Wide Belt Metal Sanding Machine
Parameters
| Working width(mm) | 630 |
| Min.Working length(mm) | 300 |
| Working thickness(mm) | 0-110 |
| First motor(kw) | 11 |
| Second motor(kw) | 7.5 |
| Total Power | 19.97 |
| Transmission motor power(kw) | 1.1 |
| Abrasive belt size(mm) | 650*1900 |
| Overall dimensions(mm) | 1800*1200*2100 |
| Weight(kg) | 1300 |
product description
Automatic 630mm Wide Metal Sheet Belt Sander is a high-performance deburring and polishing machine for metal surfaces, featuring adjustable conveying speed, automatic sand belt correction, and dual feeding guarantees (high friction roller magnetic adsorption).
It ensures precise sanding dimensional tolerance of 0.03-0.06mm and supports processing thicknesses from 0.5-100mm.
With a powerful 16.5kW motor and commercial-grade consumables, it offers safe, reliable, and efficient performance for industries

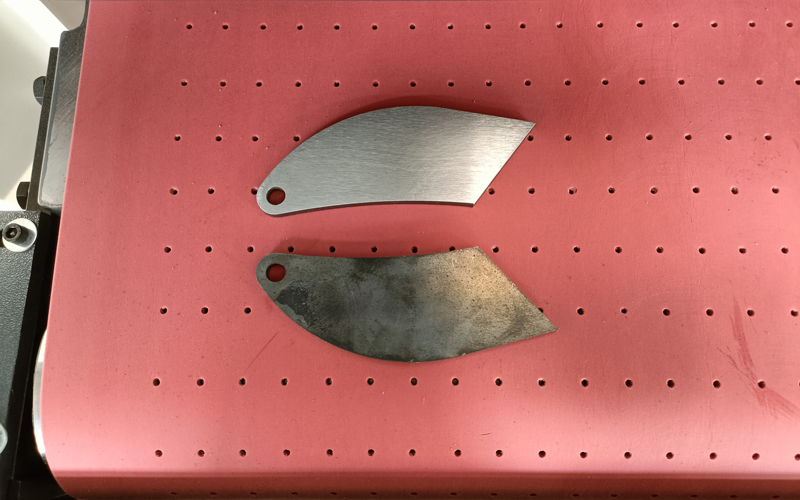

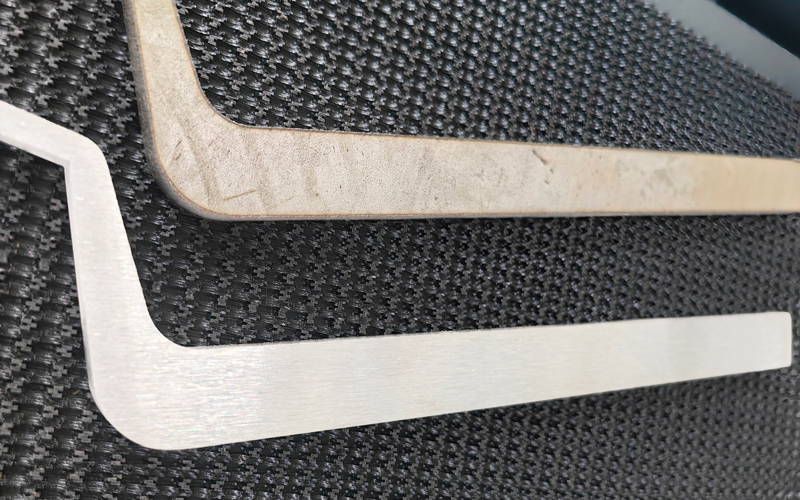

Rust removal, deburring, oxidation removal, wire drawing grinding and polishing of the metal plate.
-

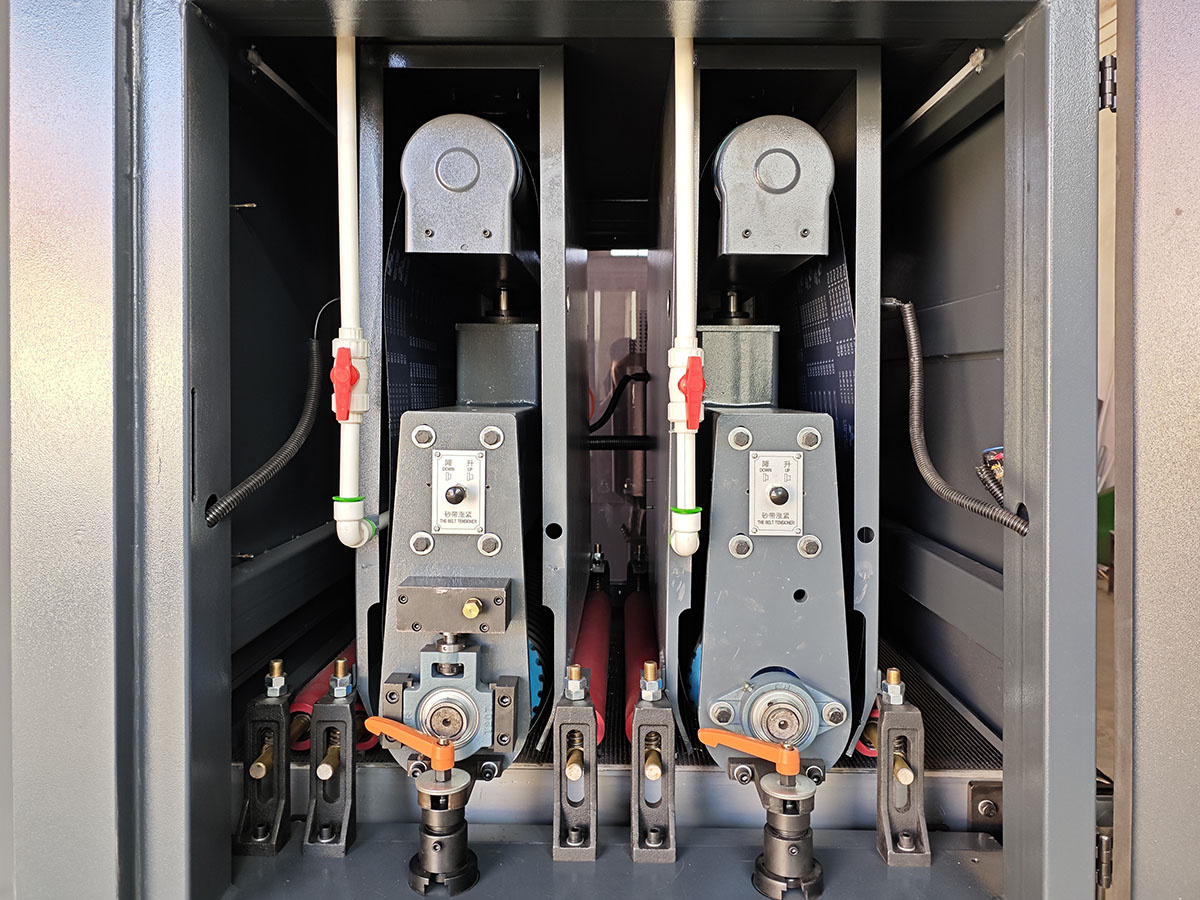

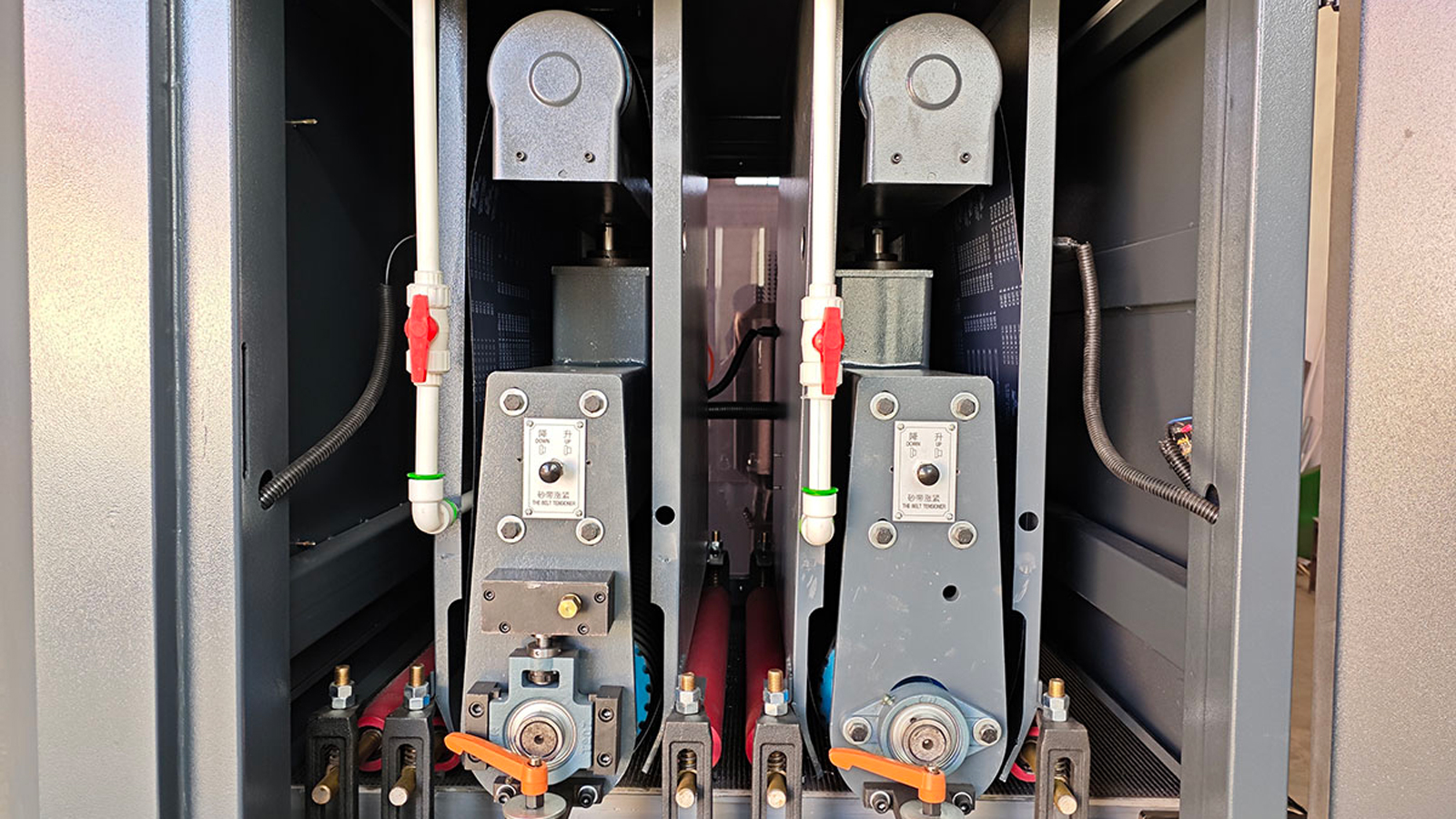

SANDING BELT

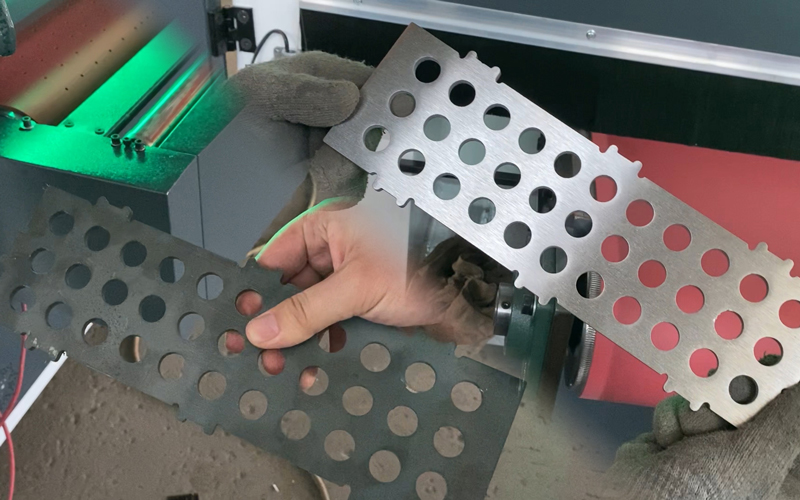

By grinding the stainless steel, carbon steel, molybdenum plate, etc., cleaning the plate due to laser cuting, stamping burs,grinding to remove the oxide layer, deburing, so as to show the metal bright surface, processing plate width 600mm, 1000mm, 1300mm, 1600mm, etc
-

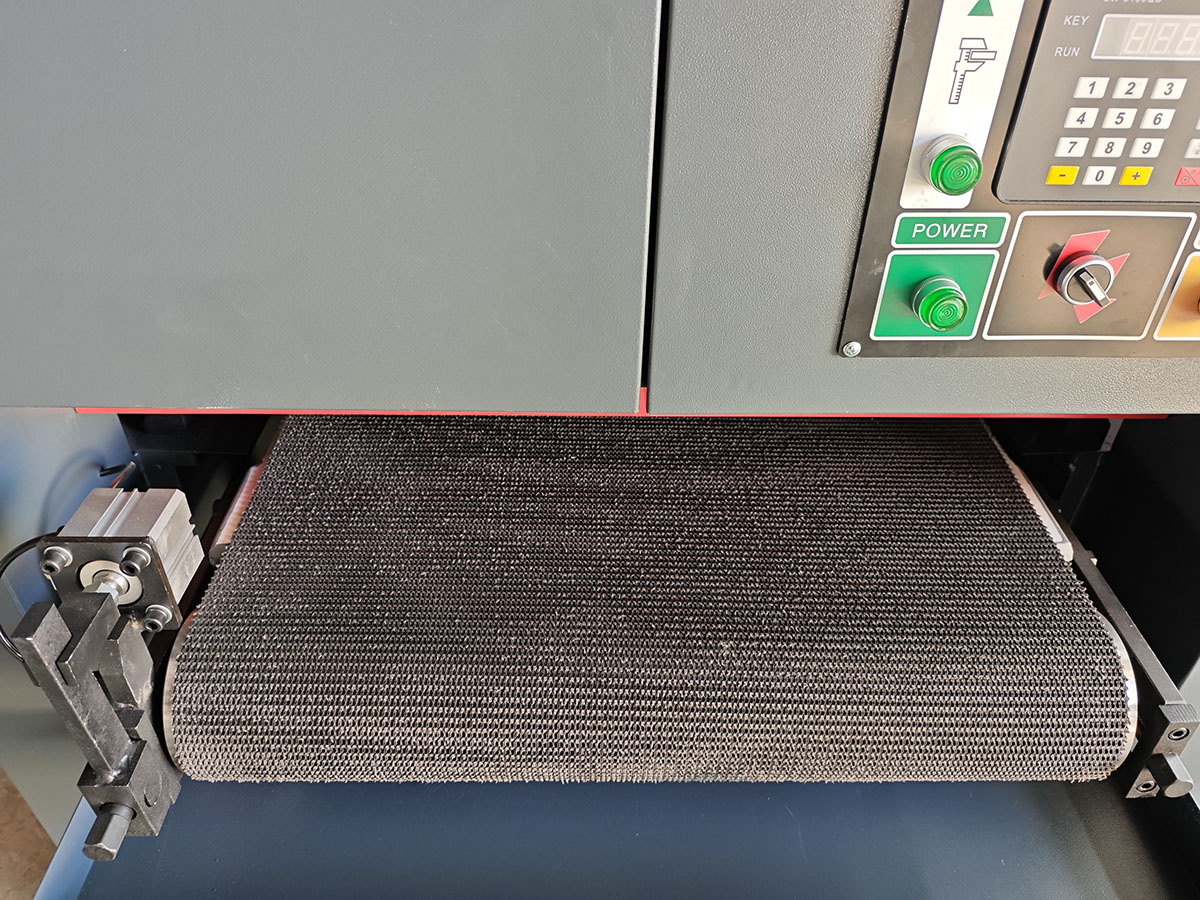

CONVEYOR BELT
Working table for the thickened marble, conveyor belt for five layers of rubber material, not afraid of rain, not afraid of sun, long service life.
-

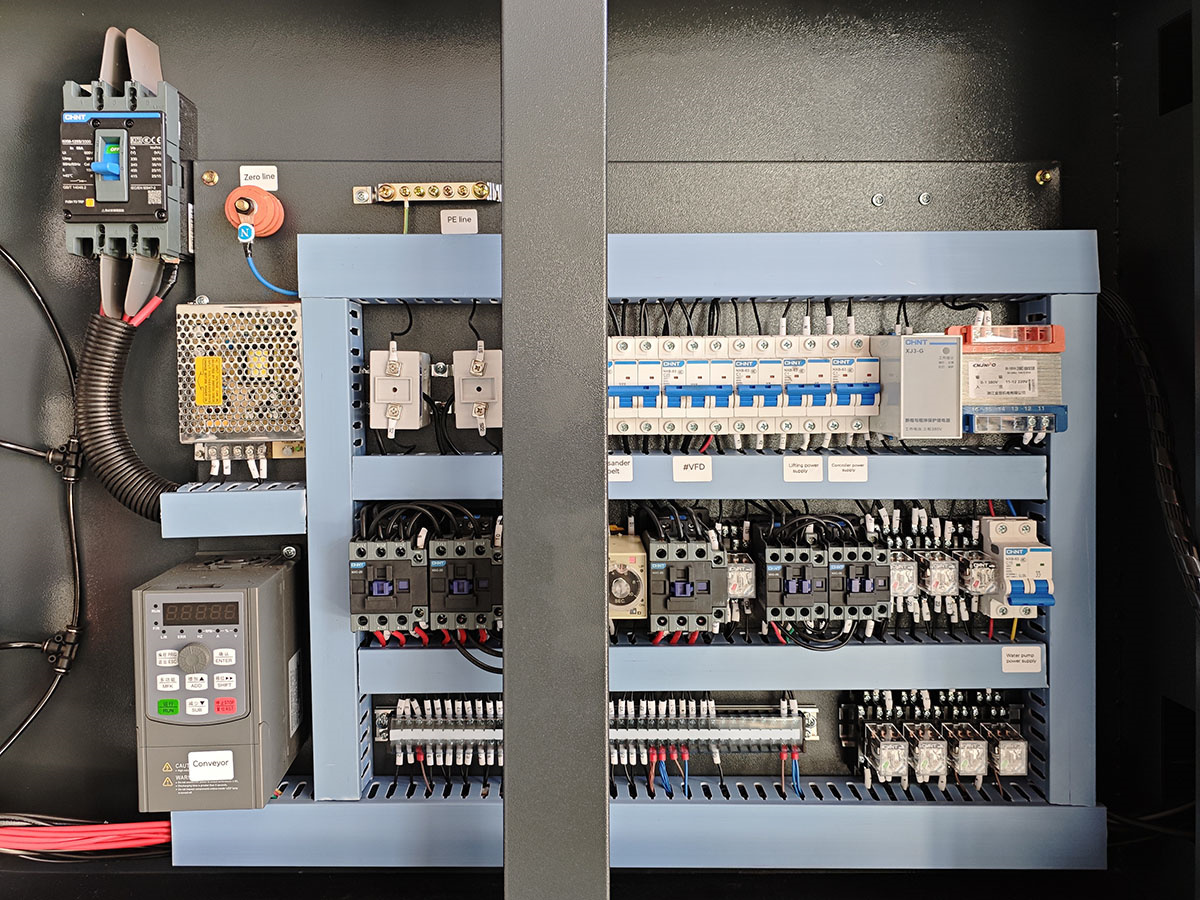

INTERNAL CIRCUIT
All the electrical parts are made of Chint electric appliances with stable performance. The machine internal wire connection is clear, no clutter.
-

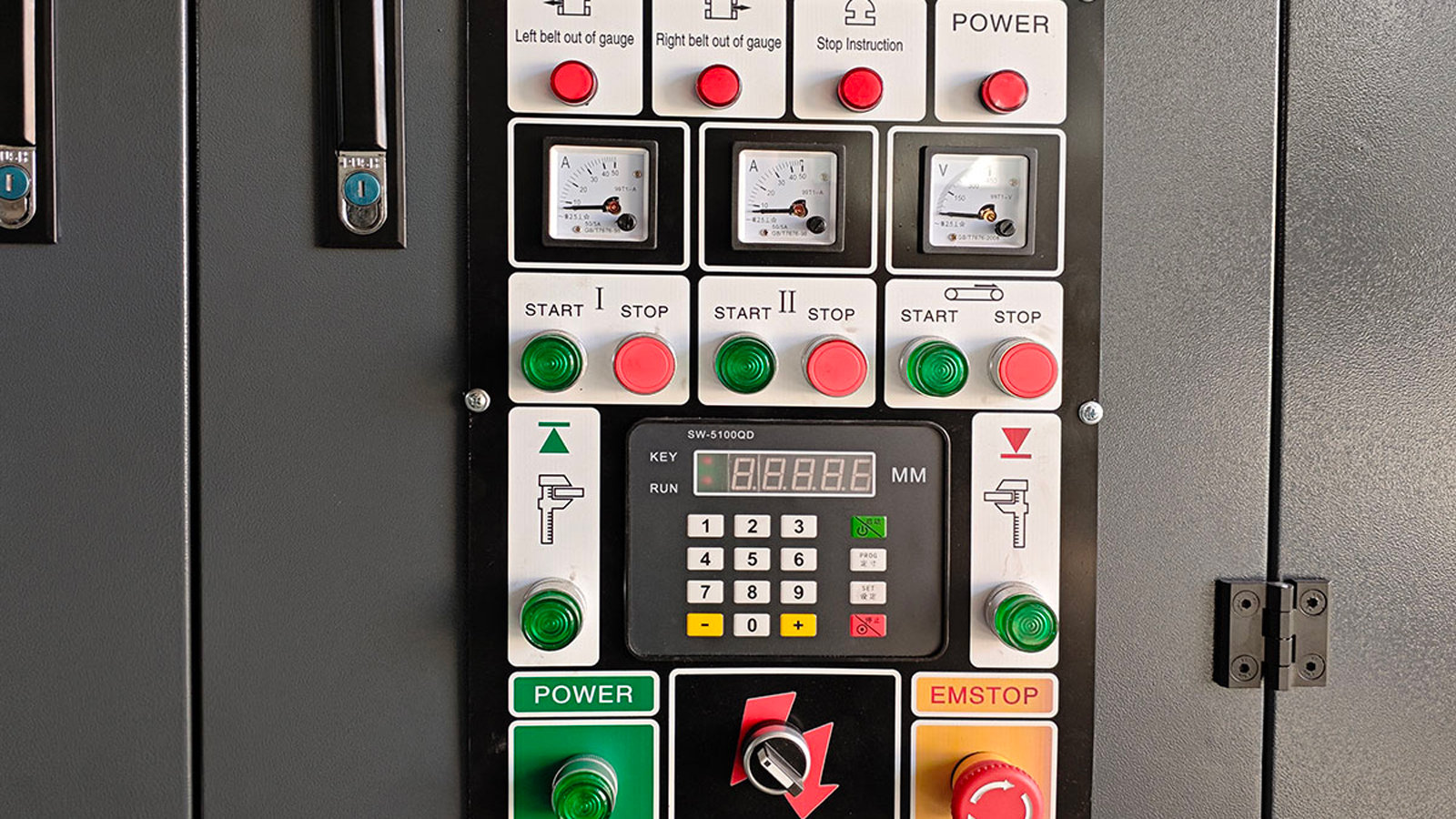

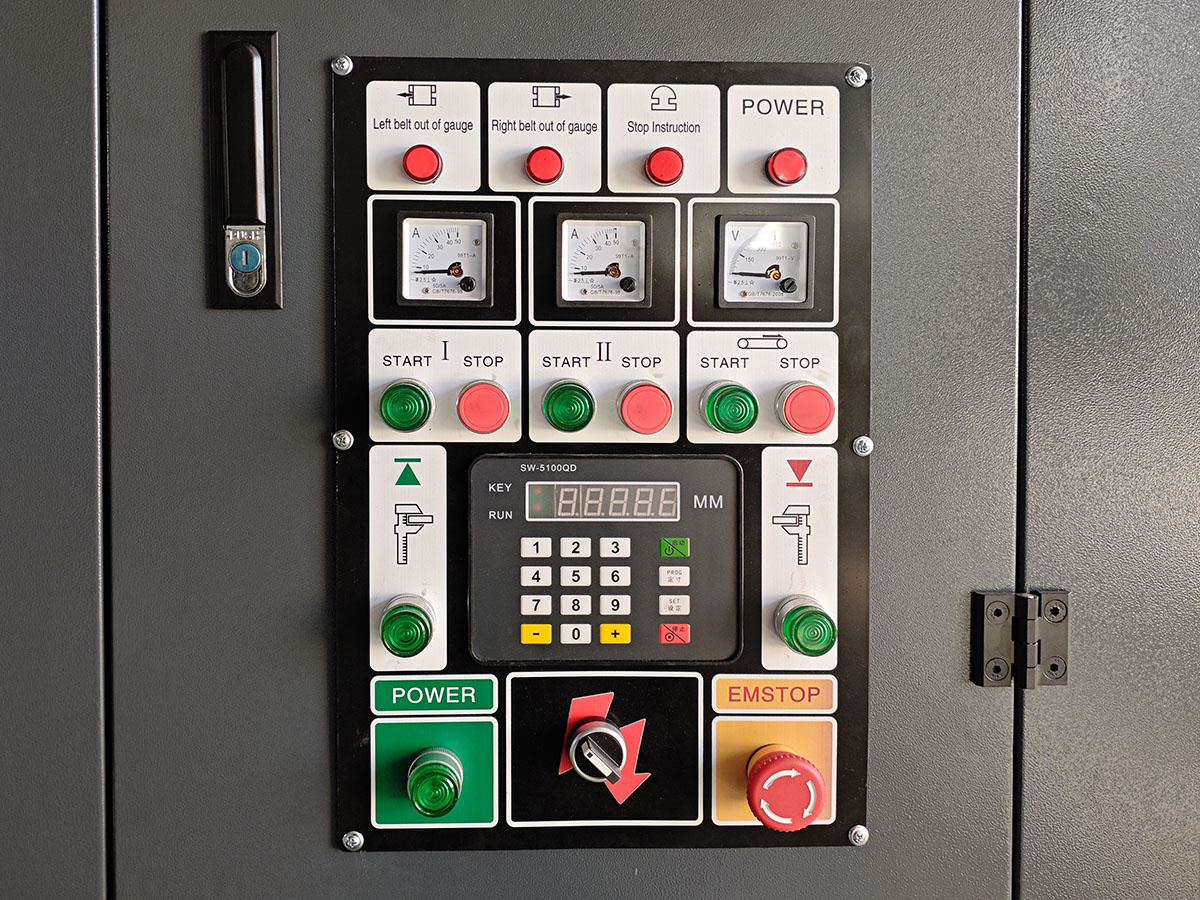

CONTROL PANEL
The control panel is simple and clear, the self-reset control button has high control precision and easy operation.
Video

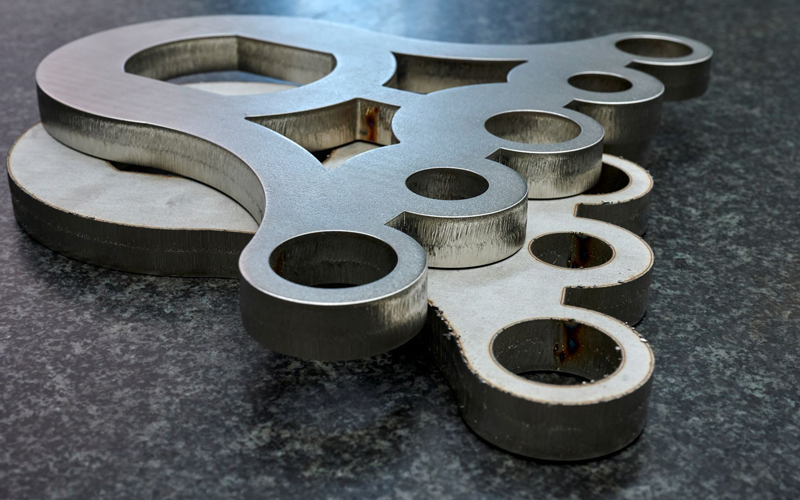

Application
Rust removal, deburring, oxidation removal, wire drawing grinding and polishing of the metal plate.
