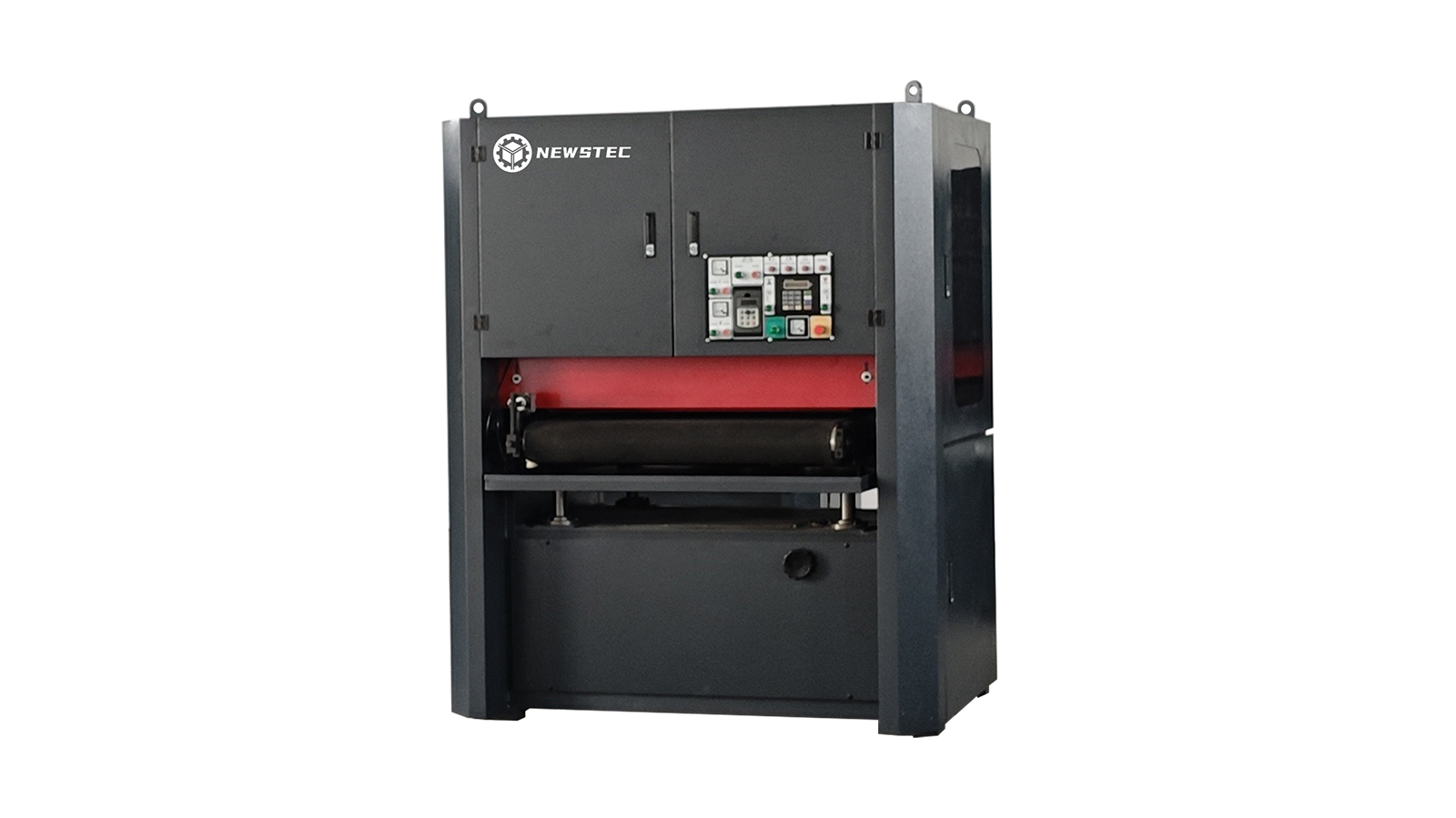

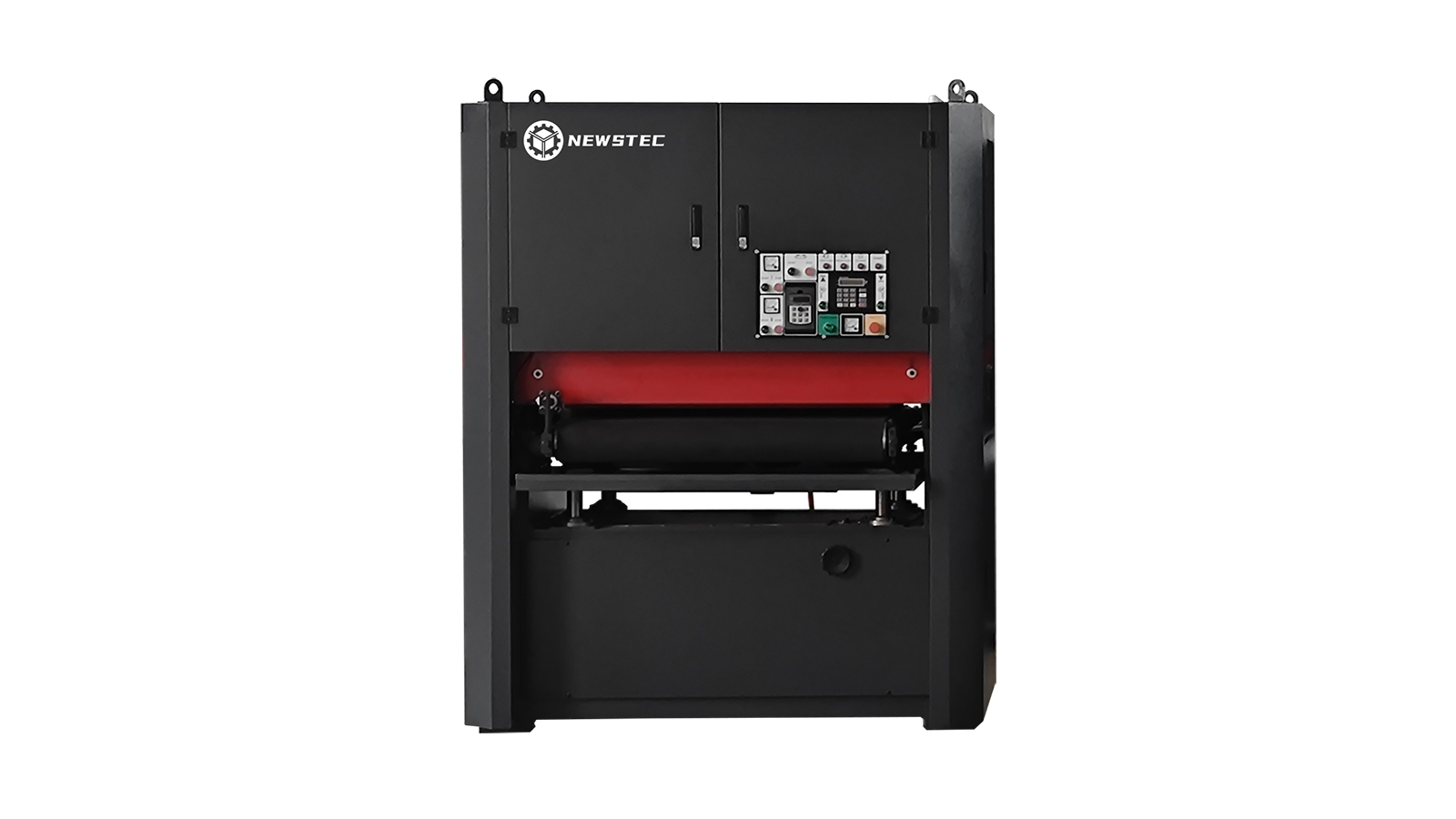

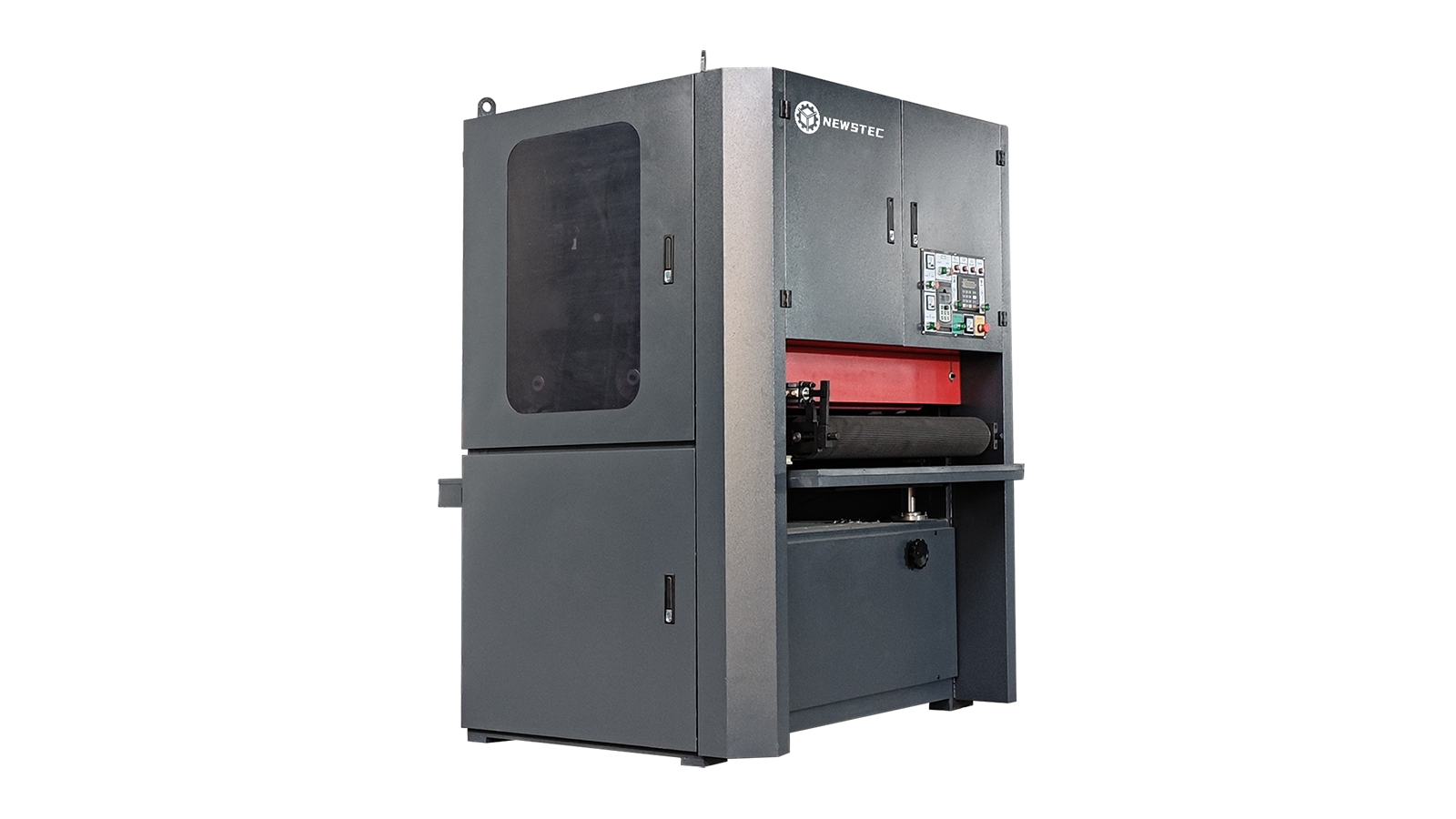

1000mm Wide Belt Metal Sanding Machine
Parameters
|
Working width(mm) |
1000 |
|
Min.Working length(mm) |
300 |
|
Working thickness(mm) |
0-110 |
|
First motor(kw) |
18.5 |
|
Second motor(kw) |
15 |
|
Total Power |
36.55 |
|
Transmission motor power(kw) |
2.2 |
|
Abrasive belt size(mm) |
1020*2200 |
|
Overall dimensions(mm) |
1900*1600*2100 |
|
Weight(kg) |
1800 |
product description
The rust removal function is even more practical and can effectively extend the service life of the metal sheet. The surface grinding operation is simple and efficient, and the surface of the sheet can be polished to the required roughness or smoothness according to different needs. In the daily metal processing workshop, it provides solid guarantee for various metal sheet processing tasks with its stable and reliable performance, and is a powerful assistant to improve production efficiency.

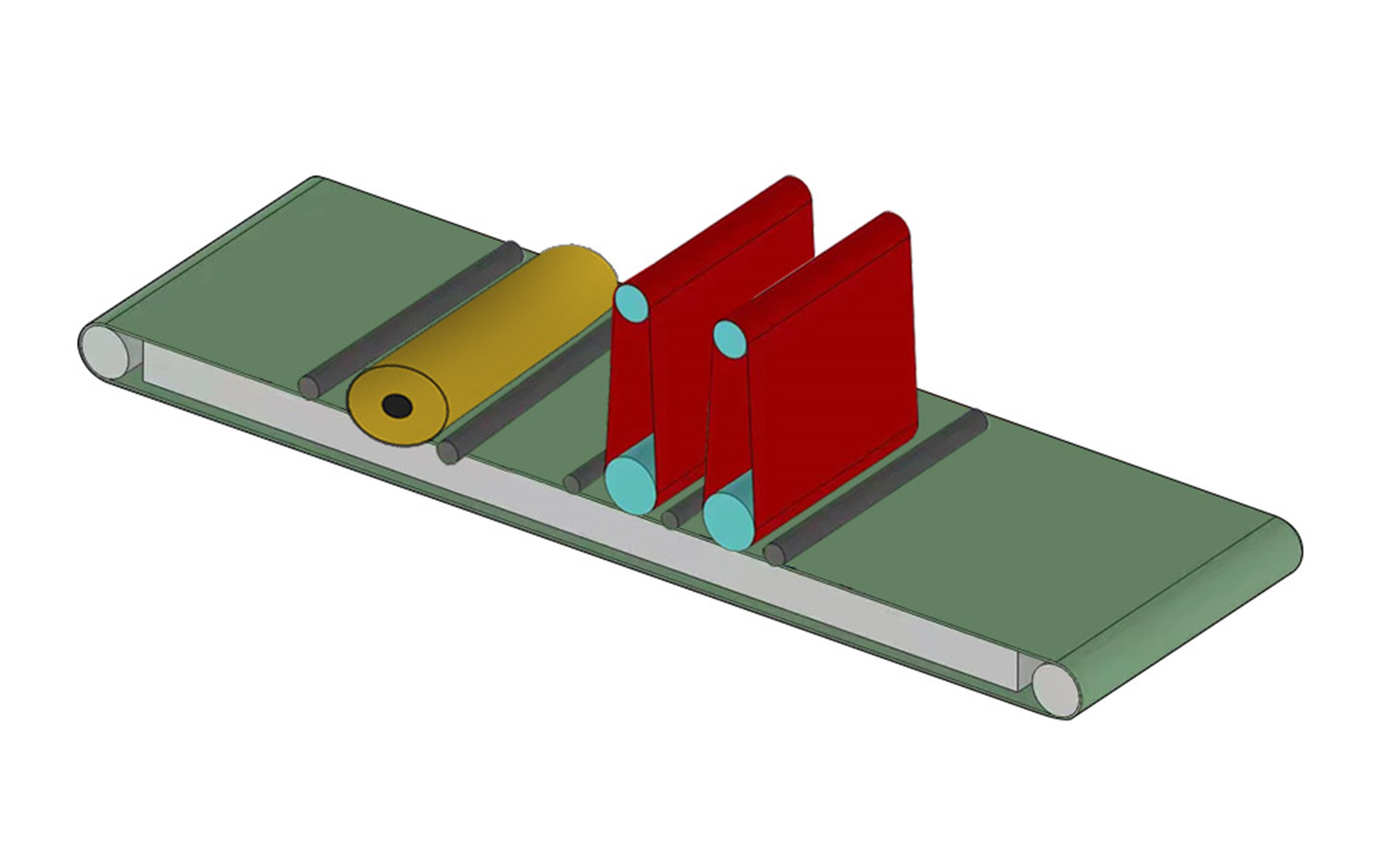

The sanding station can be used to process metal sheet surfaces such as wire drawing, polishing, descaling, and deburring. It is suitable for flat plate parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber and plastic materials, etc. Automatic sheet metal deburring machine mainly includes control system, power system, conveying system, lifting system, and grinding system.
The power system provides machine power. According to the length and thickness of the work-piece, the corresponding number is input by the control system, the lifting system adjusts the height of the platform, and the conveying system sends the work-piece to the grinding system to complete the grinding process of the work-piece.

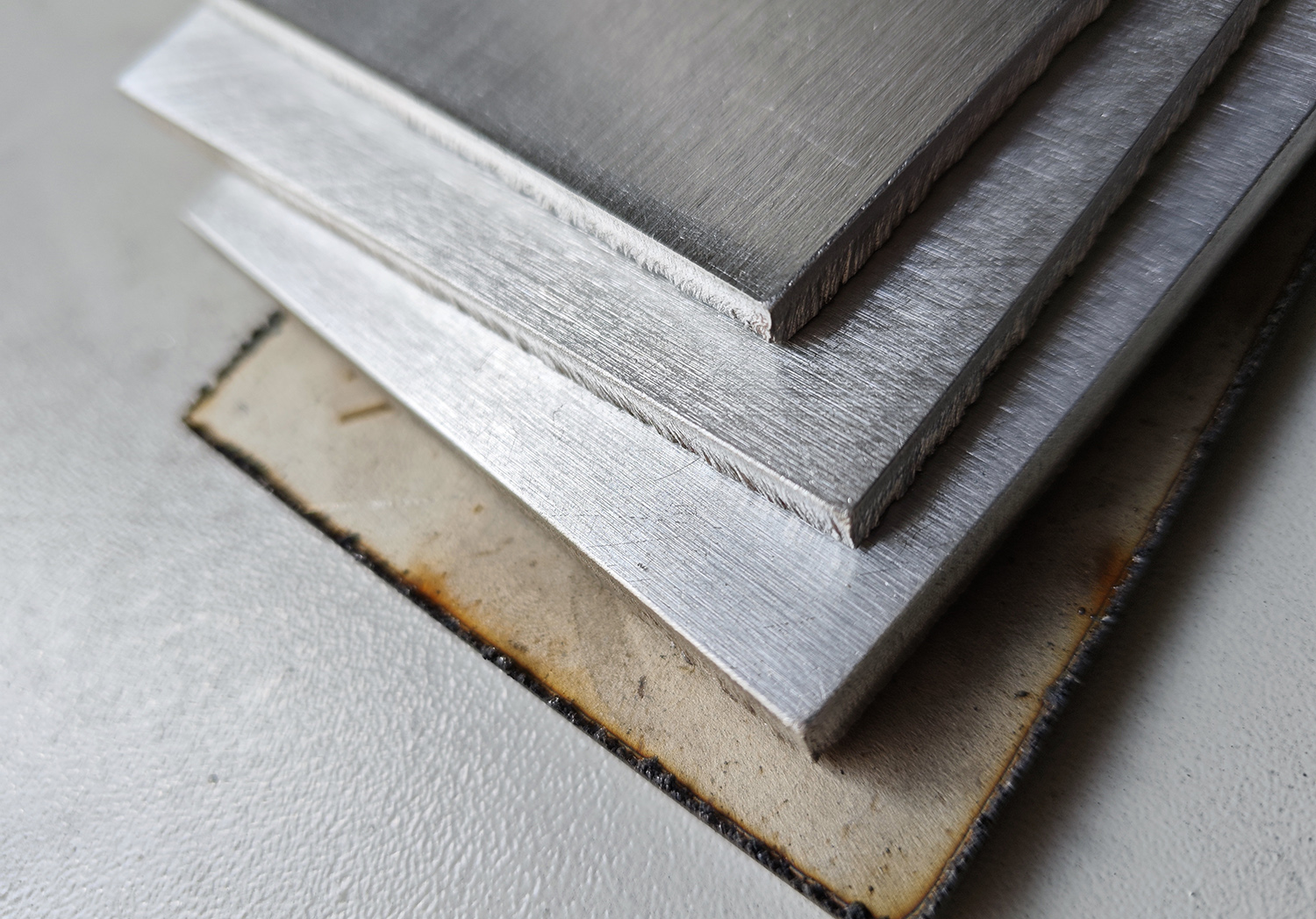

Rust removal, deburring, oxidation removal, wire drawing grinding and polishing of the metal plate.
-

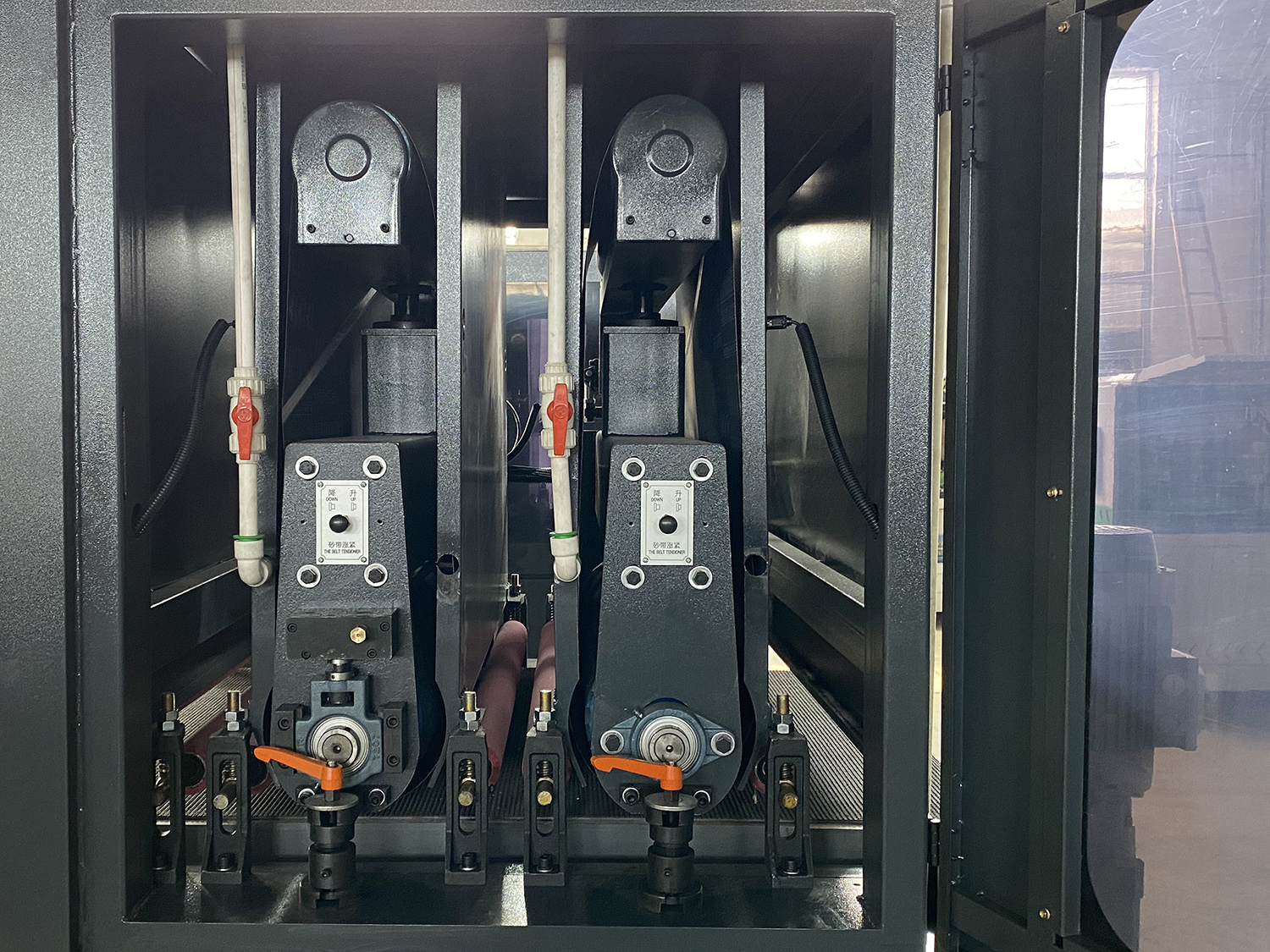

SANDING BELT

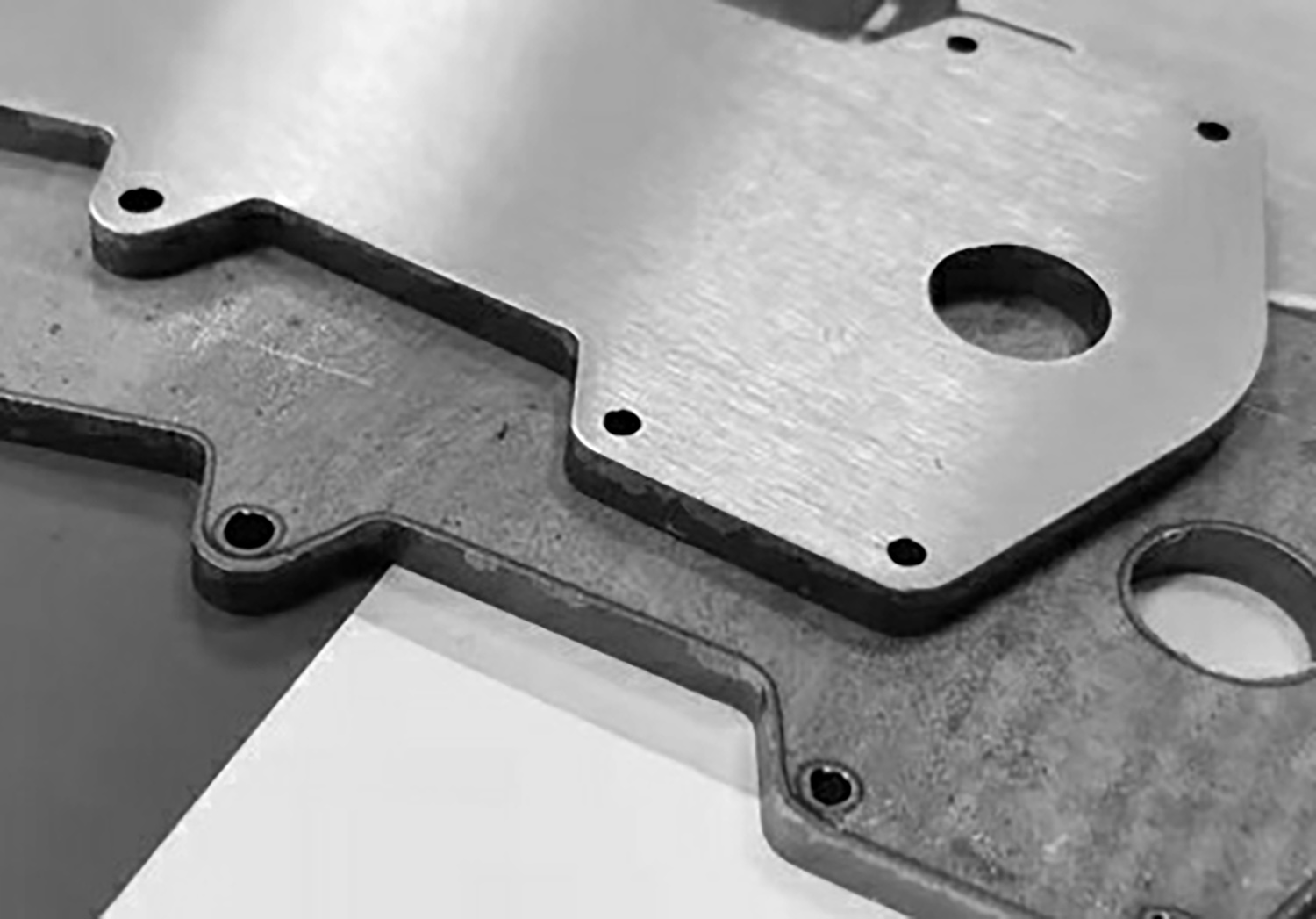

By grinding the stainless steel, carbon steel, molybdenum plate, etc., cleaning the plate due to laser cuting, stamping burs,grinding to remove the oxide layer,deburing,so as to show the metal bright surface, processing plate width 600mm,1000mm,1300mm,1600mm, etc
-

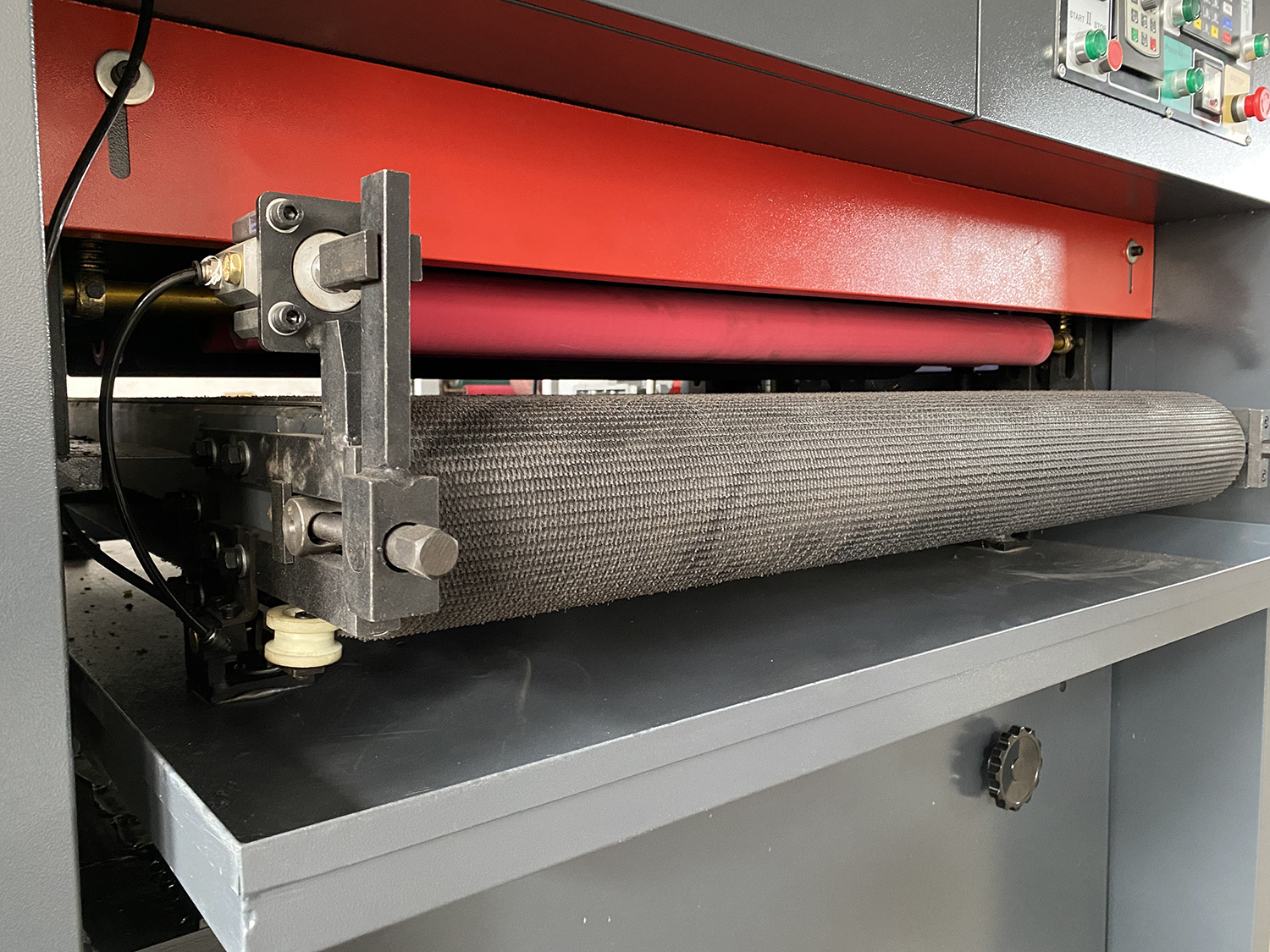

CONVEYOR BELT
Working table for the thickened marble, conveyor belt for five layers of rubber material, not afraid of rain, not afraid of sun, long service life
-

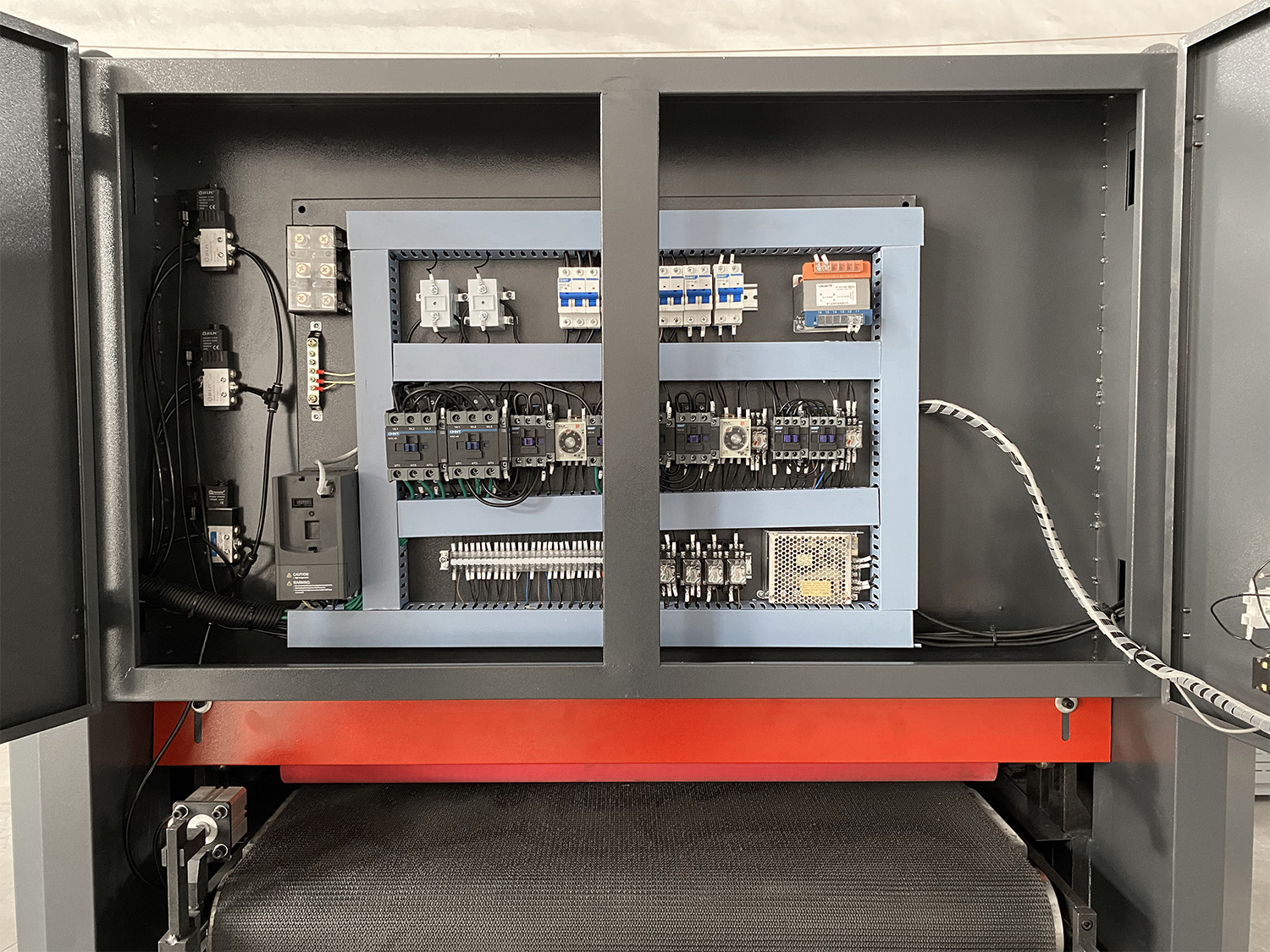

INTERNAL CIRCUIT
All the electrical parts are made of Chint electric appliances with stable performance. The machine internal wire connection is clear, no clutter.
-

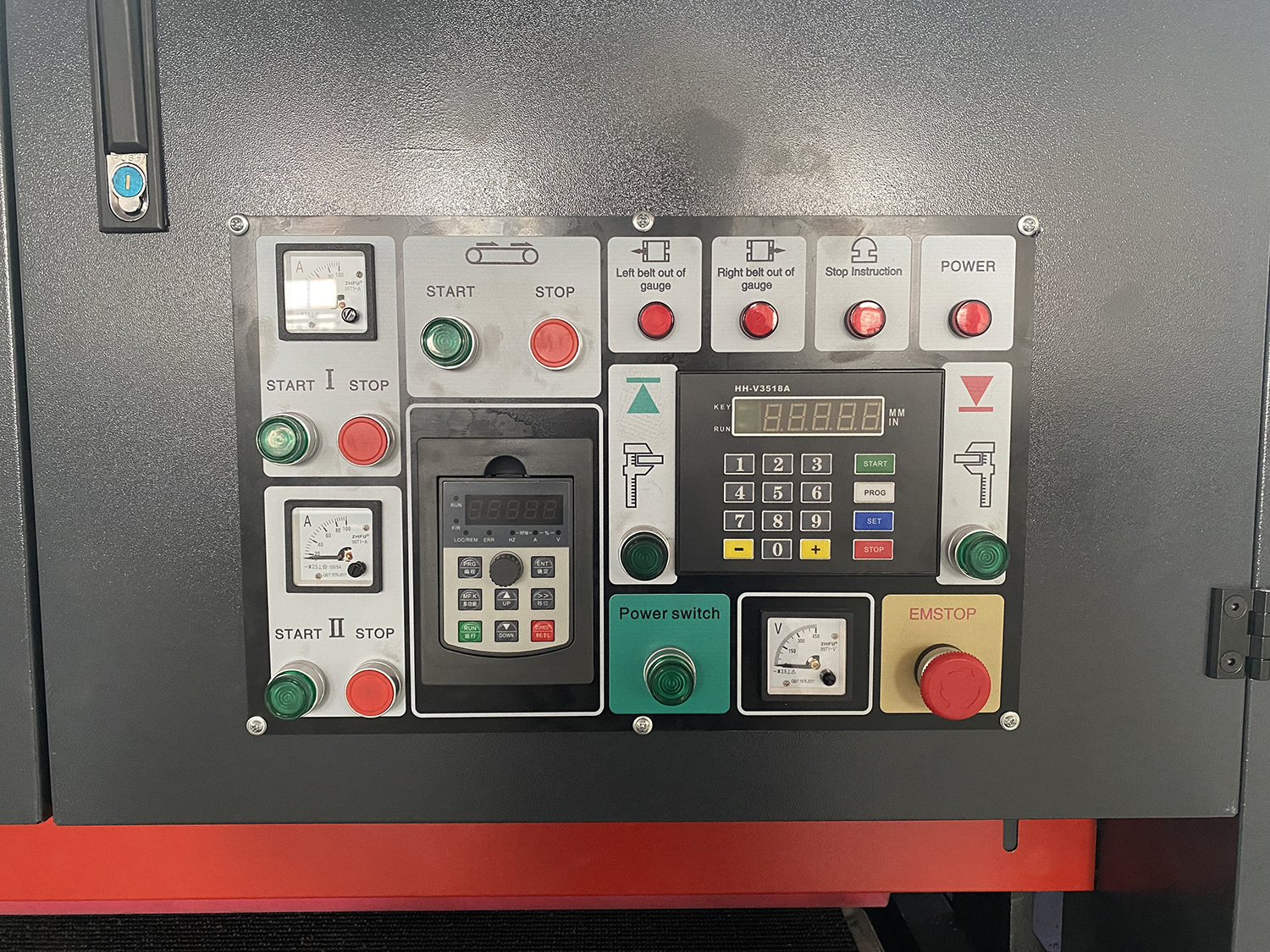

CONTROL PANEL
The control panel is simple and clear, the self-reset control button has high control precision and easy operation.
Video

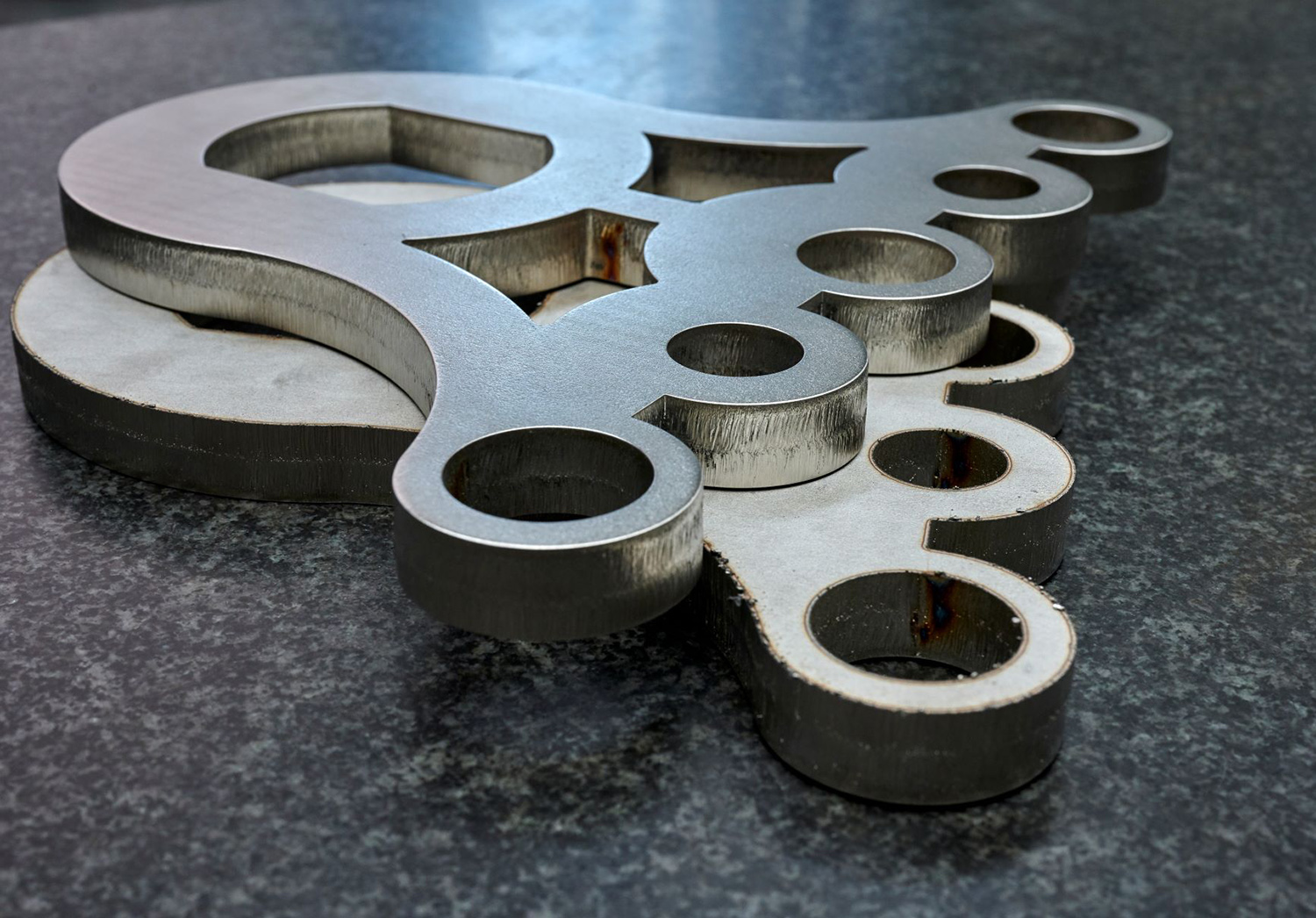

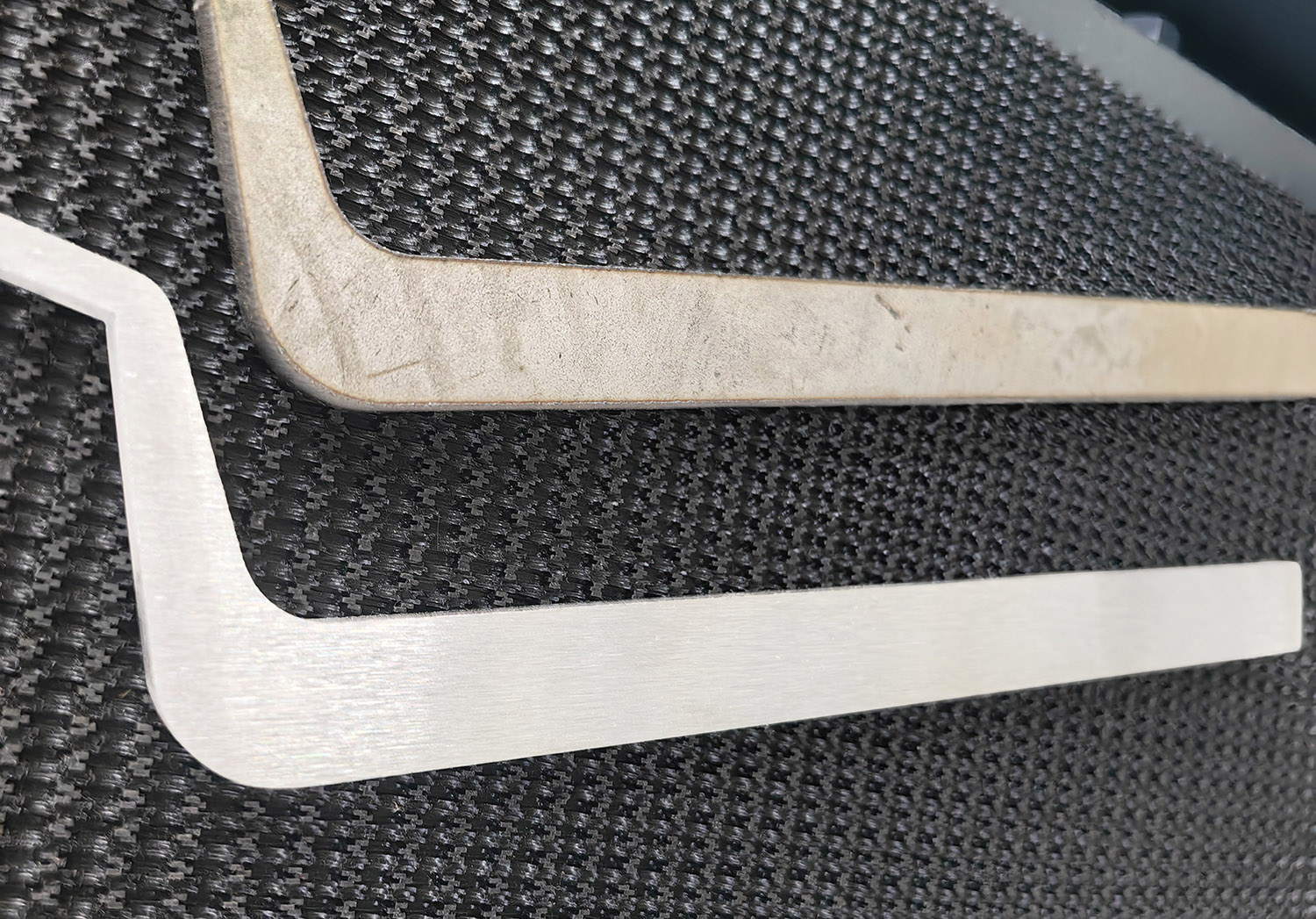

Application
Rust removal, deburring, oxidation removal, wire drawing grinding and polishing of the metal plate.
