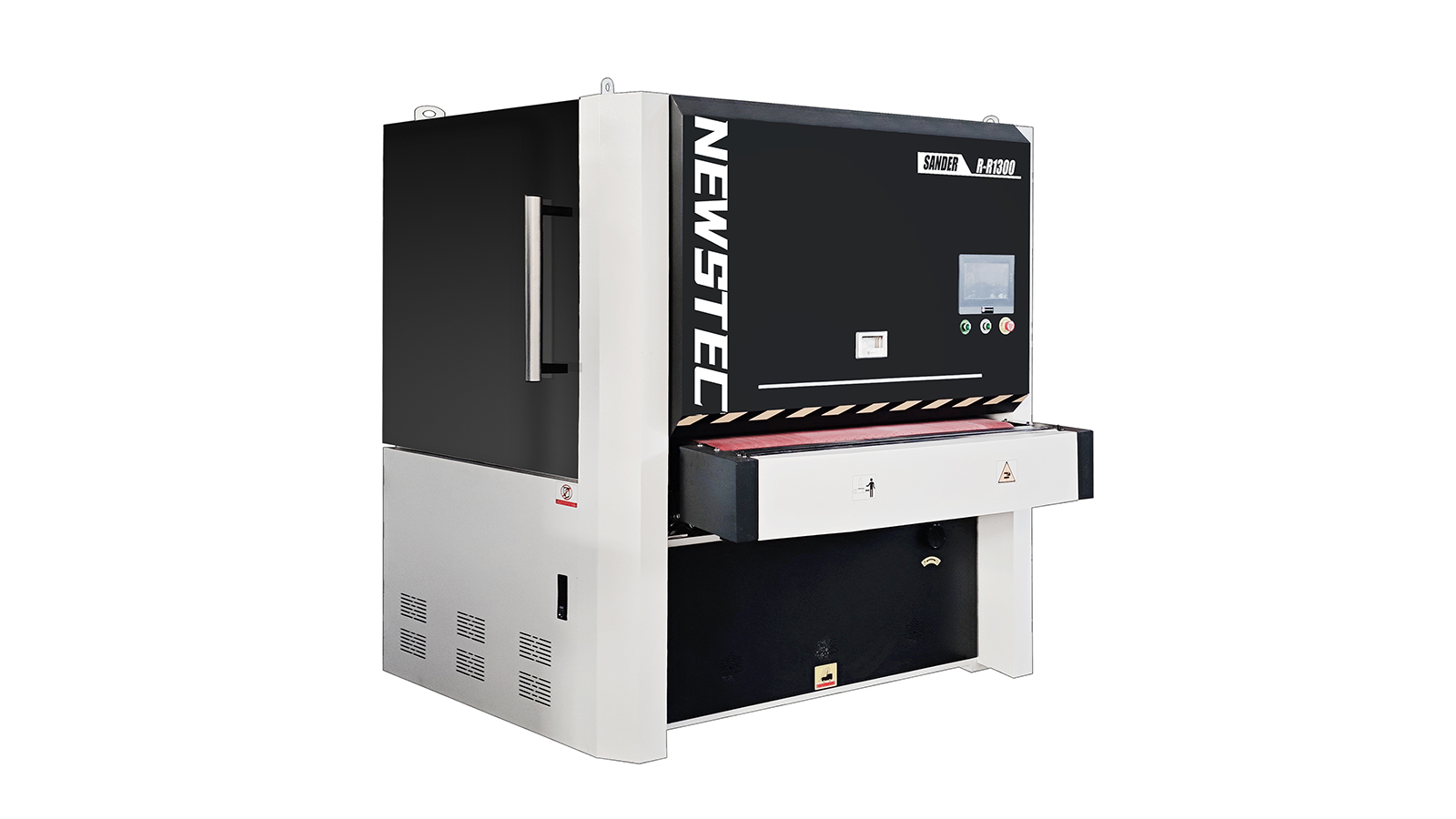

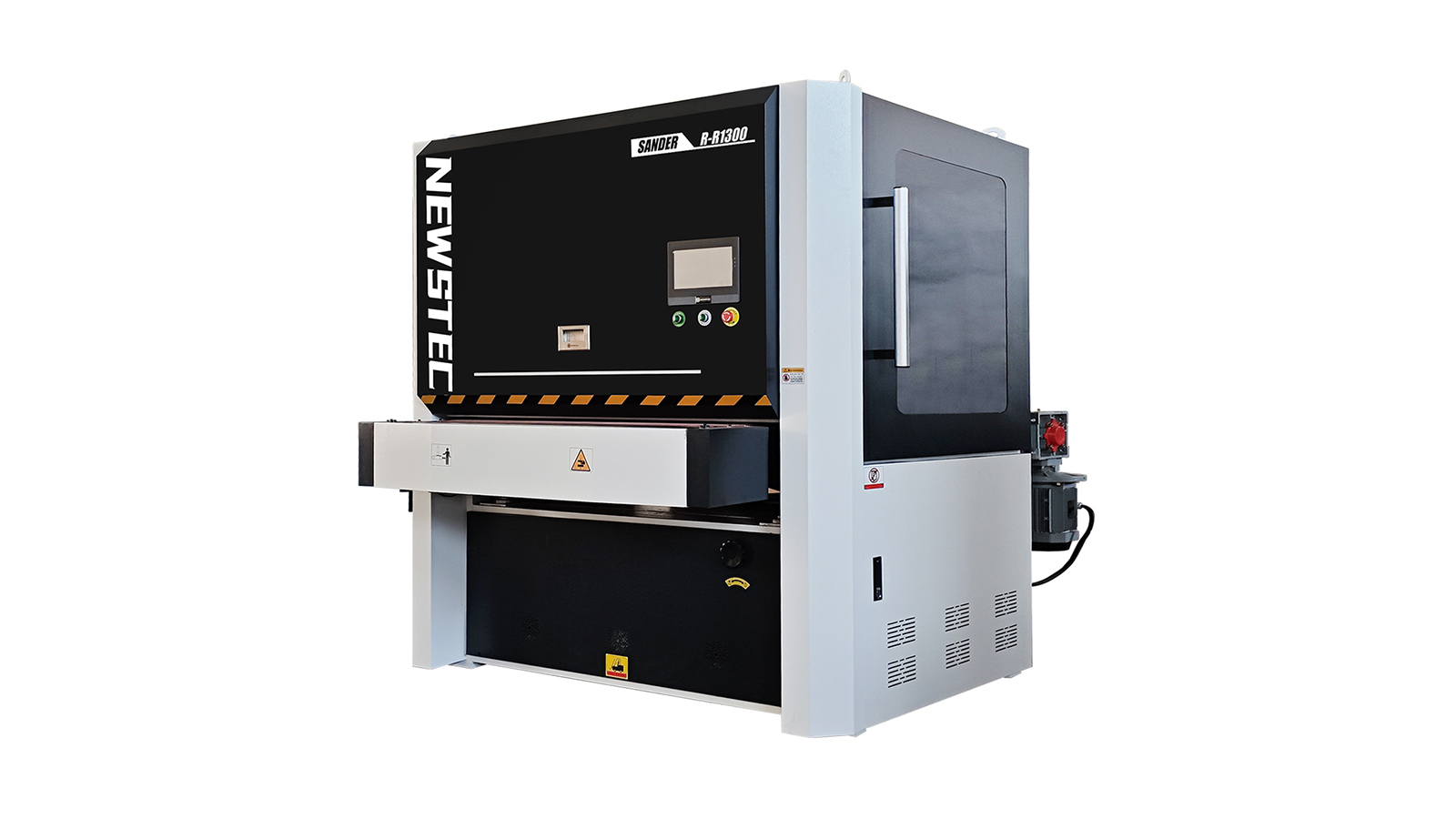

1300mm Wide Belt Metal Sanding Machine
Parameters
|
Working width(mm) |
1300 |
|
Min.Working length(mm) |
300 |
|
Working thickness(mm) |
0-110 |
|
First motor(kw) |
11 |
|
Second motor(kw) |
7.5 |
|
Total Power |
19.97 |
|
Transmission motor power(kw) |
1.1 |
|
Abrasive belt size(mm) |
1320*2200 |
|
Overall dimensions(mm) |
1800*1200*2100 |
|
Weight(kg) |
1300 |

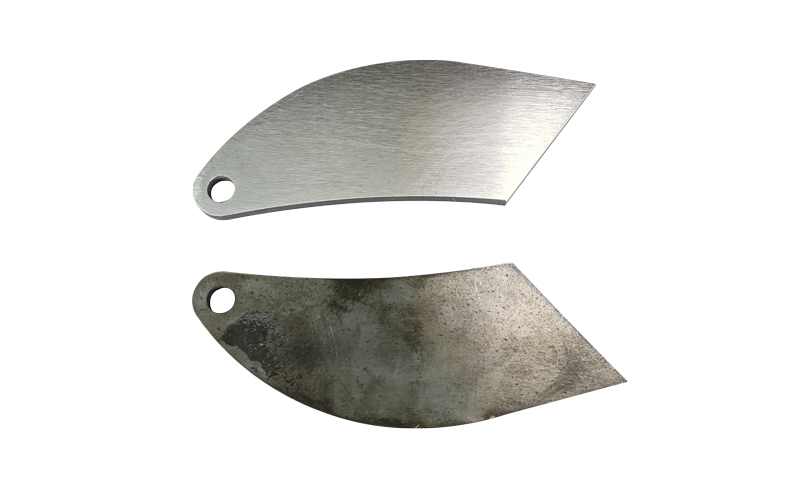

product description

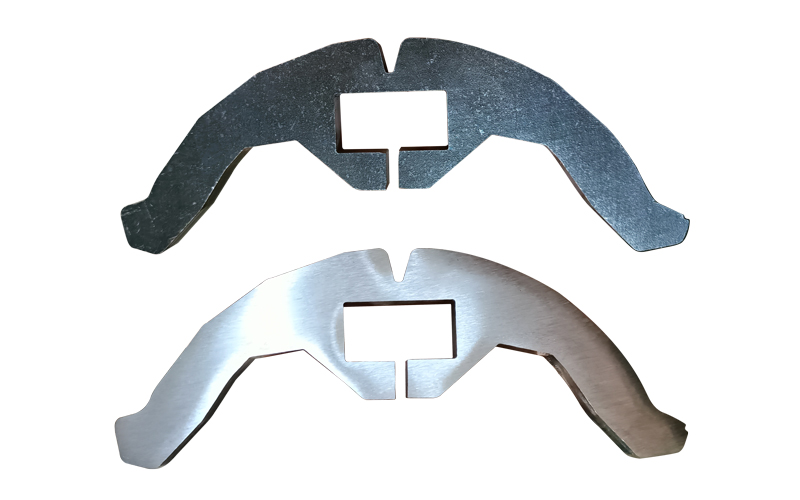

The equipment is widely used in a variety of metal materials such as carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, etc. For the oxide layer formed after long-term storage or processing, the sander can peel off the oxide skin on the metal surface layer by layer through the precisely controlled grinding force, and restore the original gloss and performance of the substrate. In the rust removal treatment, it can effectively remove the rust, rust and oxidation spots on the surface of the plate.

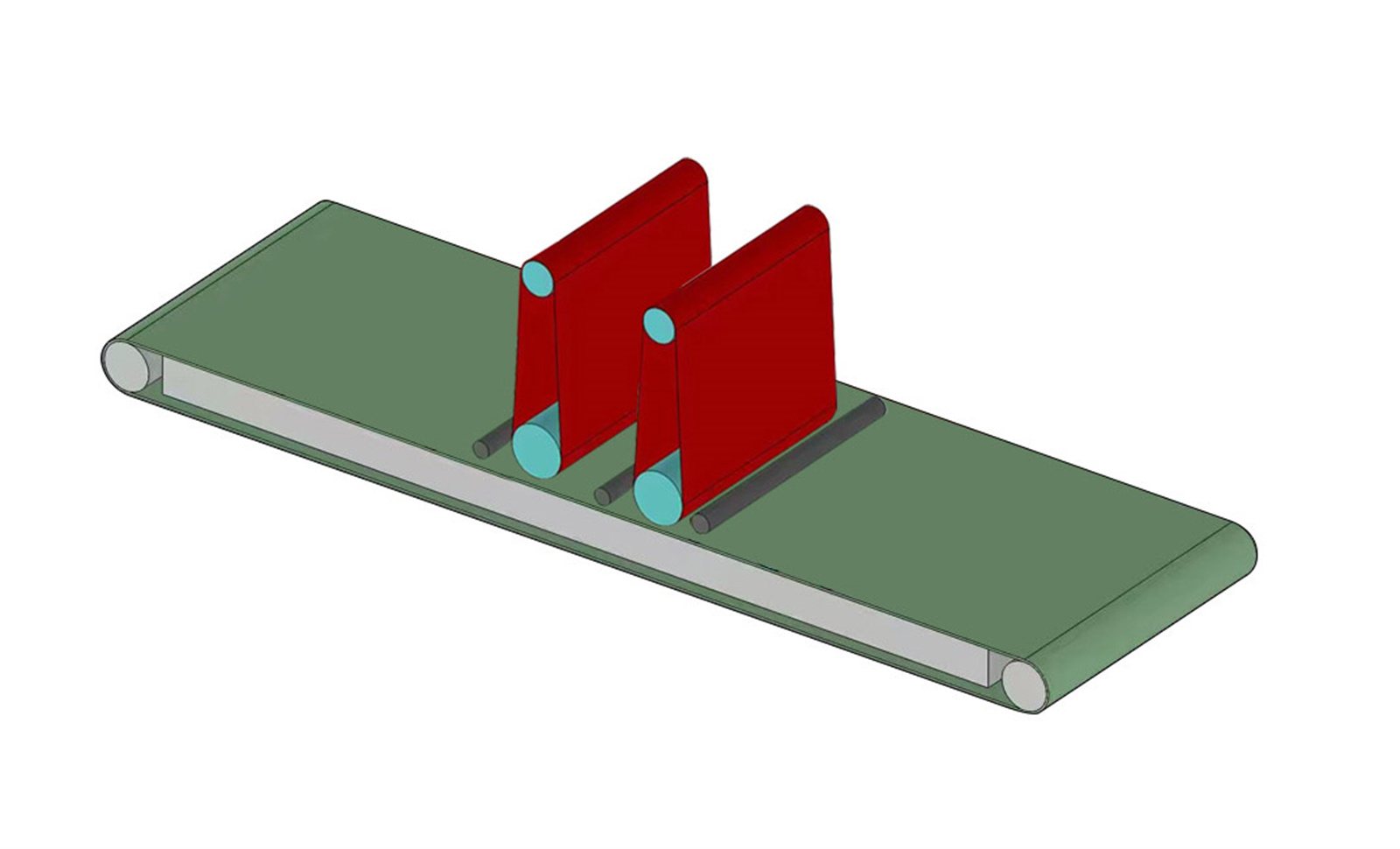

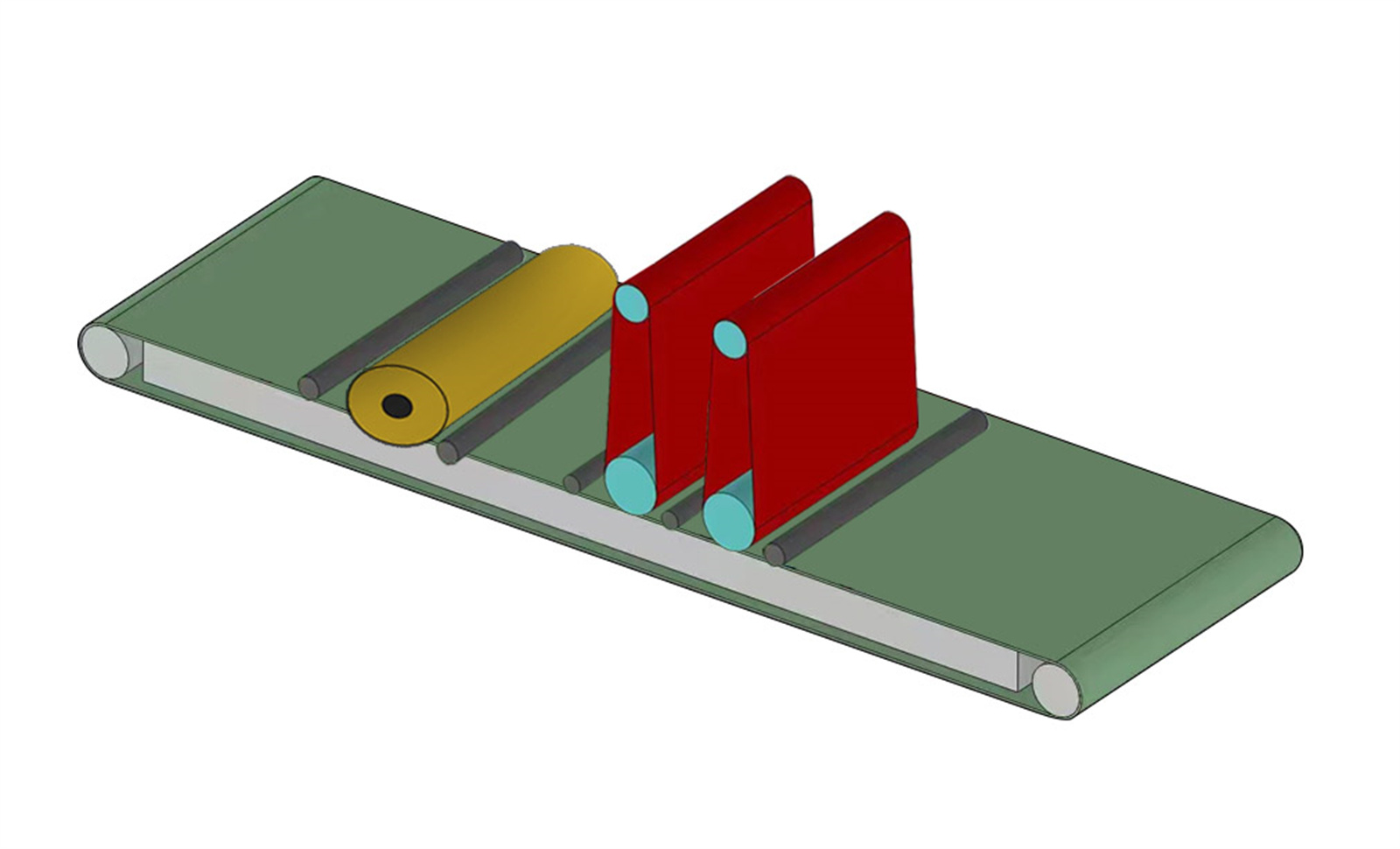

It adopts a working mode of multiple sets of sanding belts, and ensures uniform force on the metal surface through an adjustable speed linear conveying system. The surface grinding function can achieve different levels of precision processing according to needs, from rough grinding to remove surface defects to fine grinding effects can be accurately completed, and at the same time, it can eliminate scratches, pits and other defects on the surface of the plate.
This equipment can be seamlessly connected with production lines such as laser cutting and CNC processing. Whether it is strong rust removal of thick plates or fine grinding of thin plates, it can maintain stable processing quality and significantly improve the surface finish and flatness of metal plates, laying a good foundation for subsequent painting, welding and other processes.
-

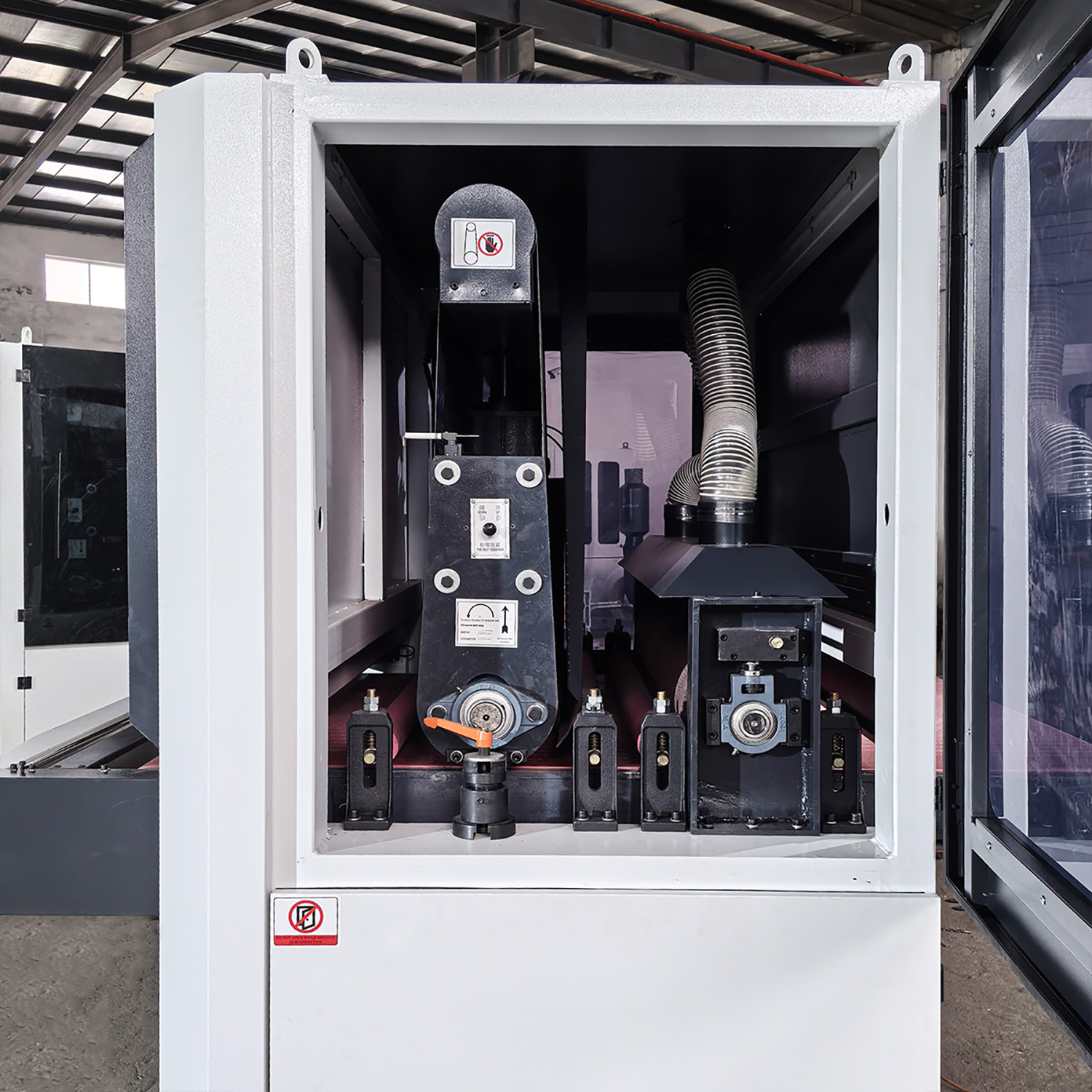

SANDING BELT

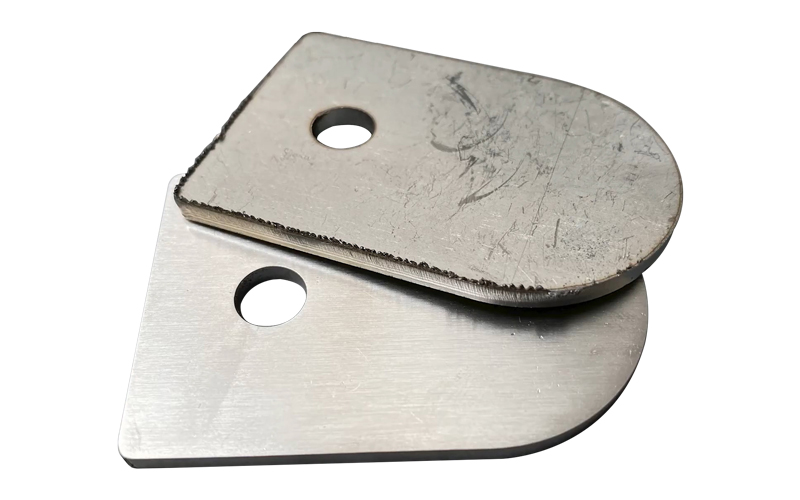

By grinding the stainless steel, carbon steel, molybdenum plate, etc., cleaning the plate due to laser cuting, stamping burs, grinding to remove the oxide layer, deburing, so as to show the metal bright surface, processing plate width 600mm, 1000mm, 1300mm, 1600mm, etc.
-

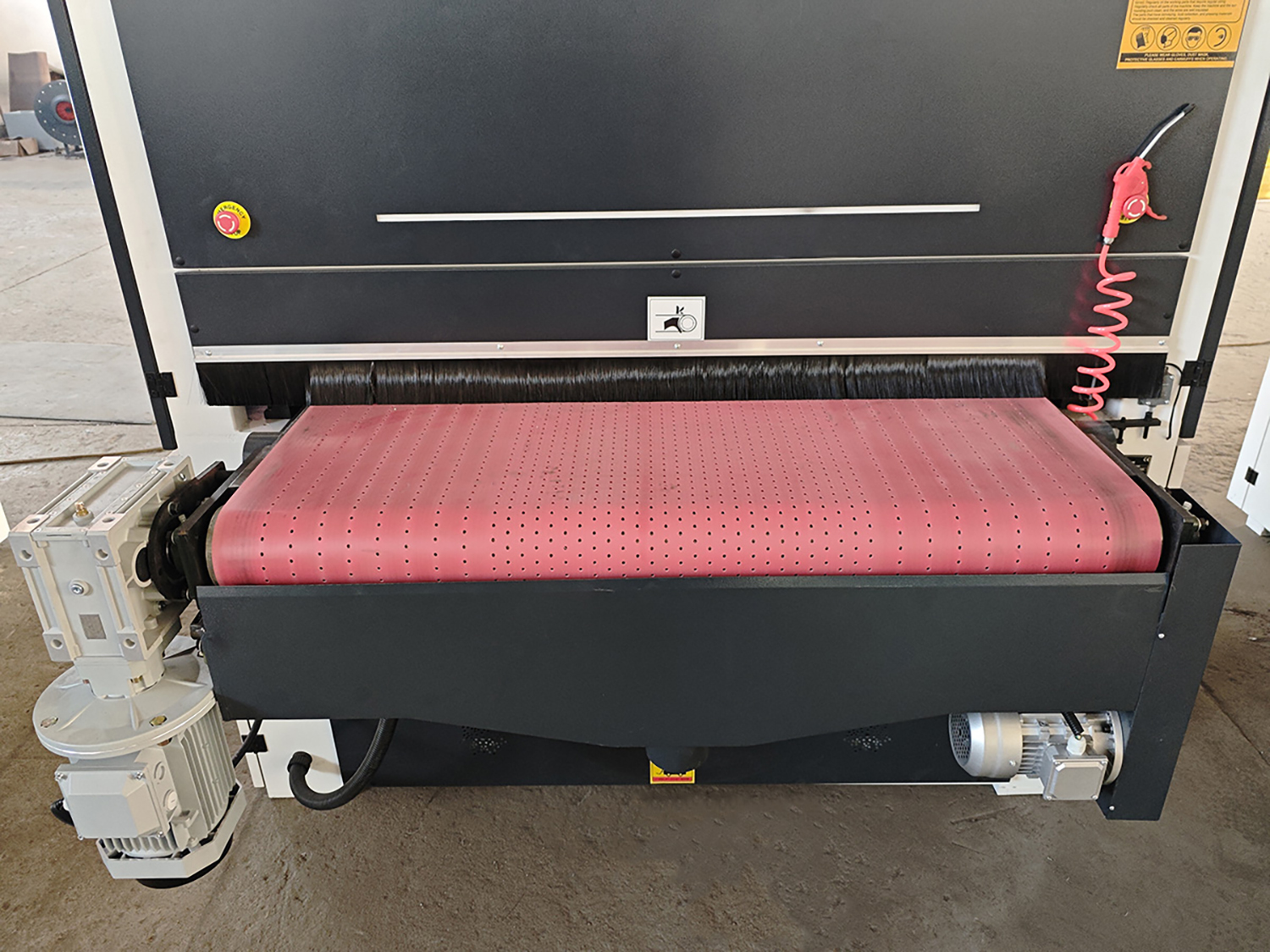

CONVEYOR BELT

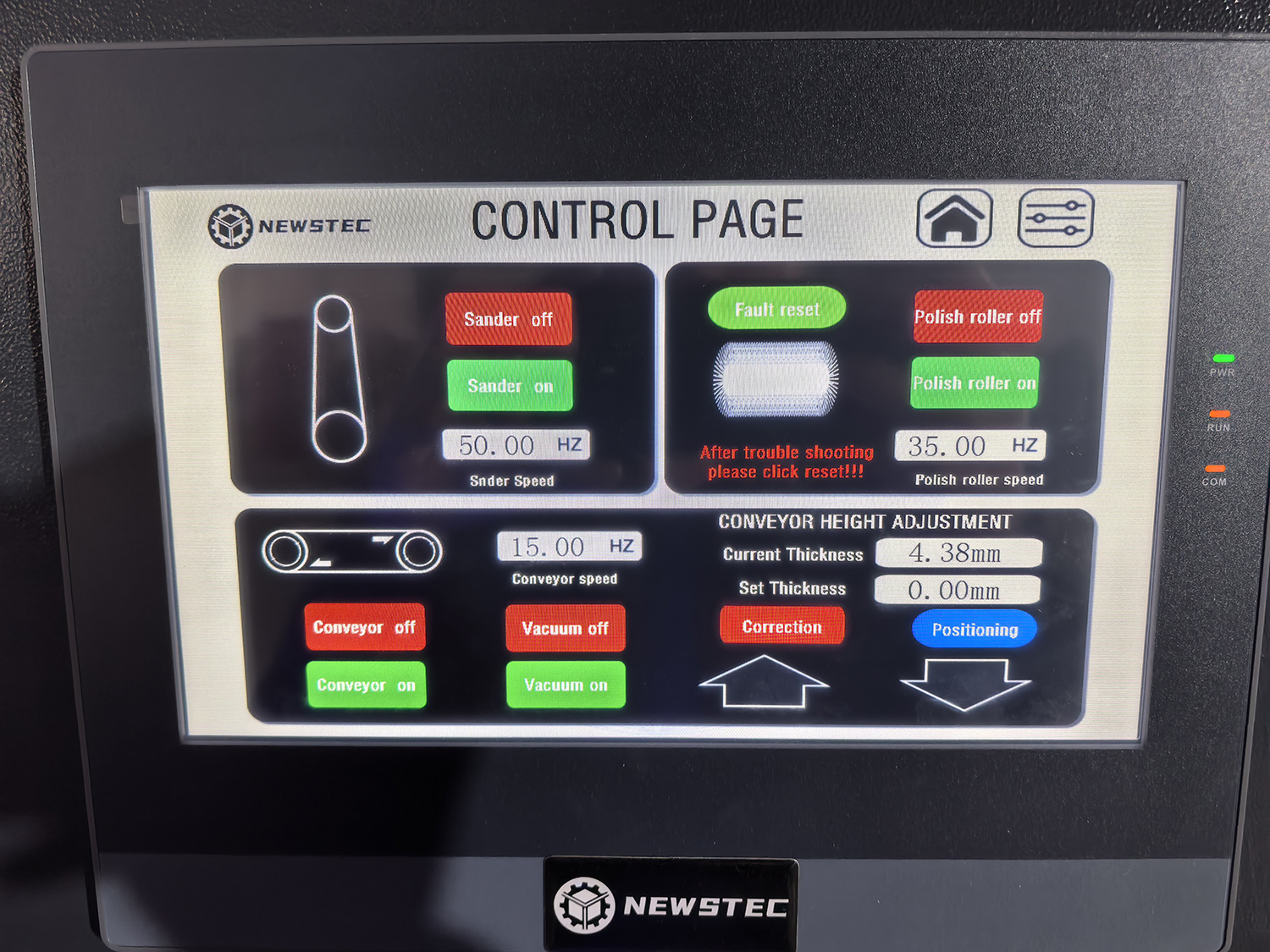

LED touch screen controls data settings Human-machine interaction is more intuitive and easy to understand
-

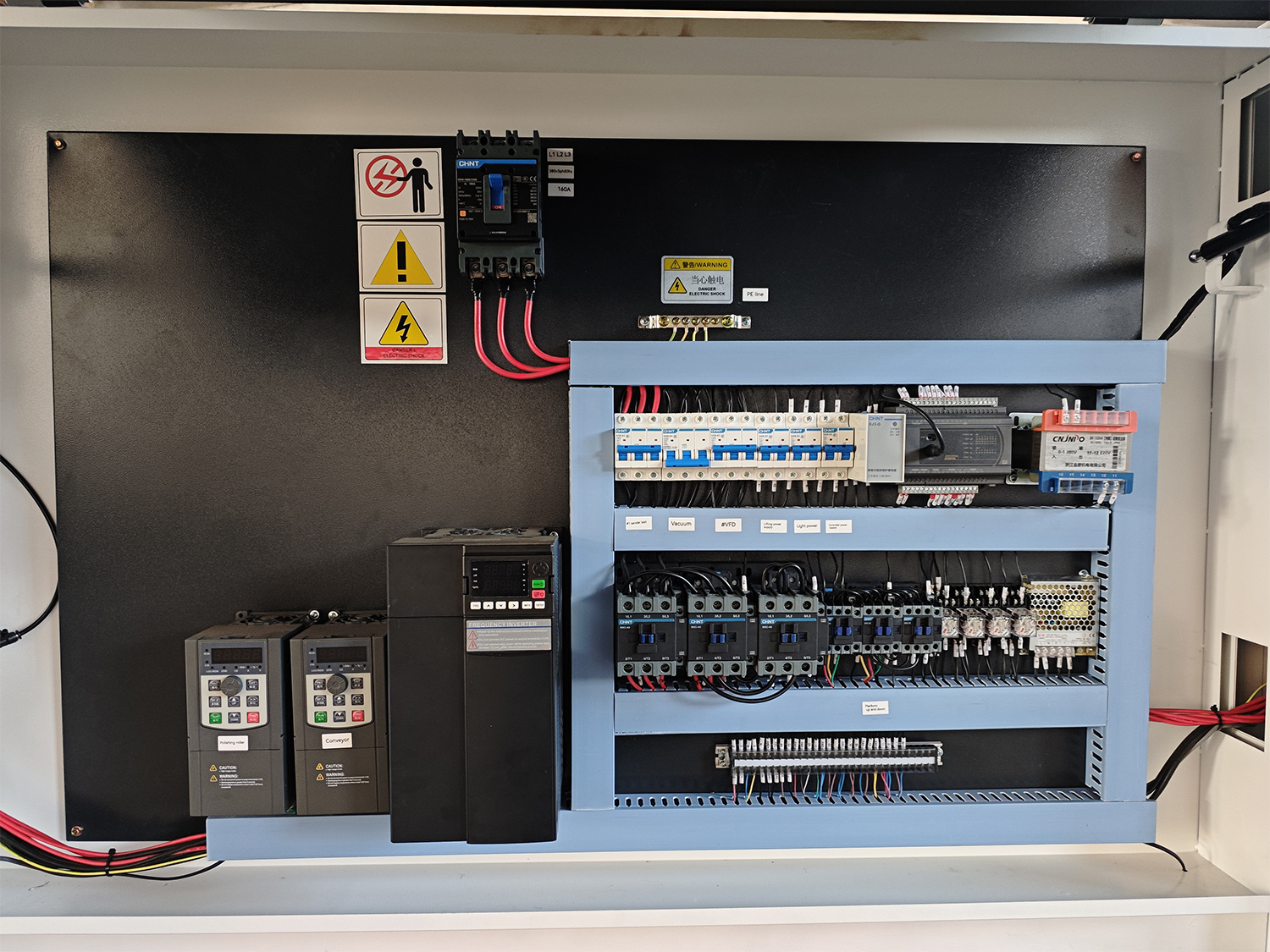

INTERNAL CIRCUIT
All the electrical parts are made of Chint electric appliances with stable performance. The machine internal wire connection is clear, no clutter.
-
CONTROL PANEL
The control panel is simple and clear, the self-reset control button has high control precision and easy operation.
Video
Application
Rust removal, deburring, oxidation removal, wire drawing grinding and polishing of the metal plate.
