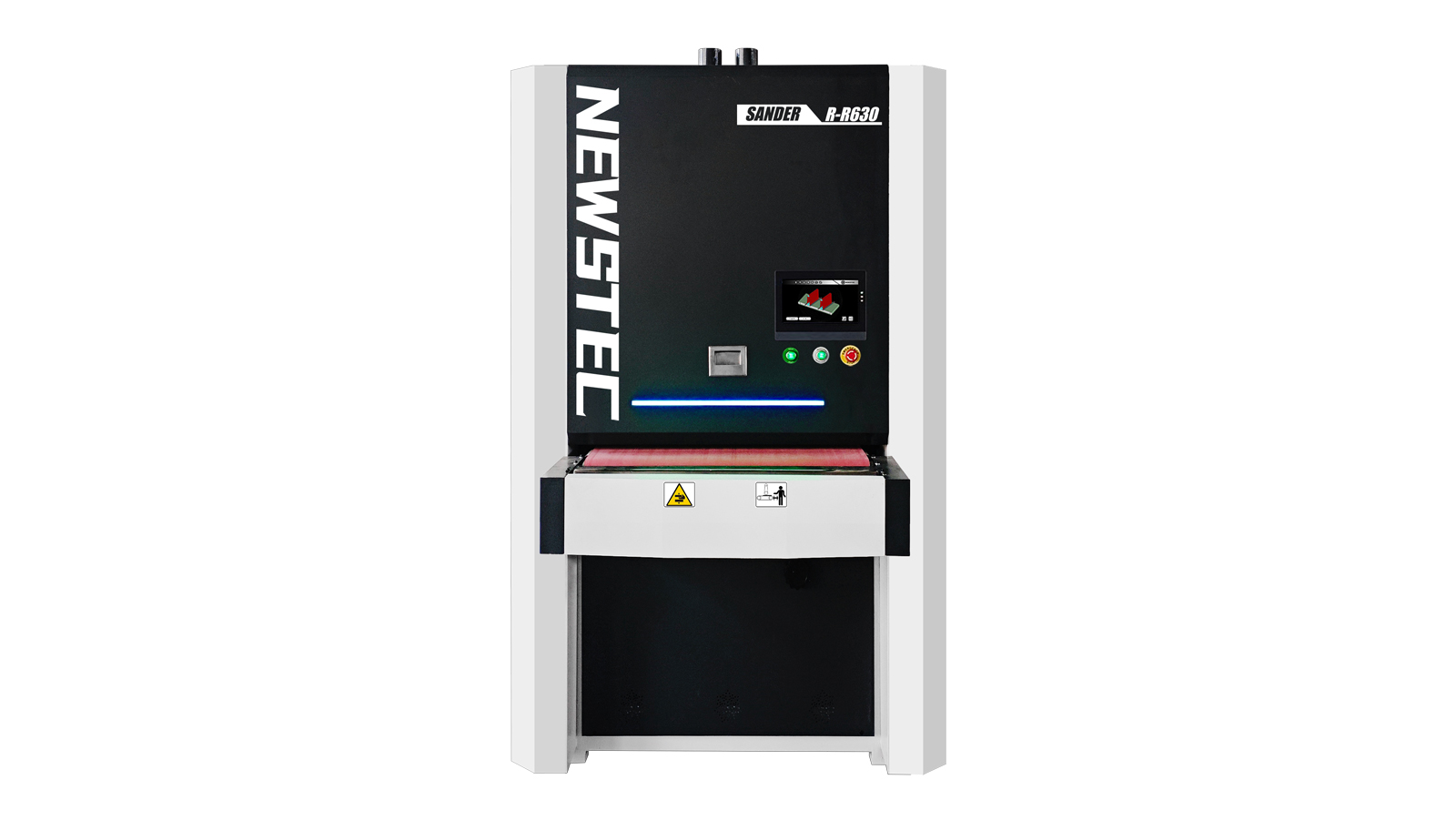

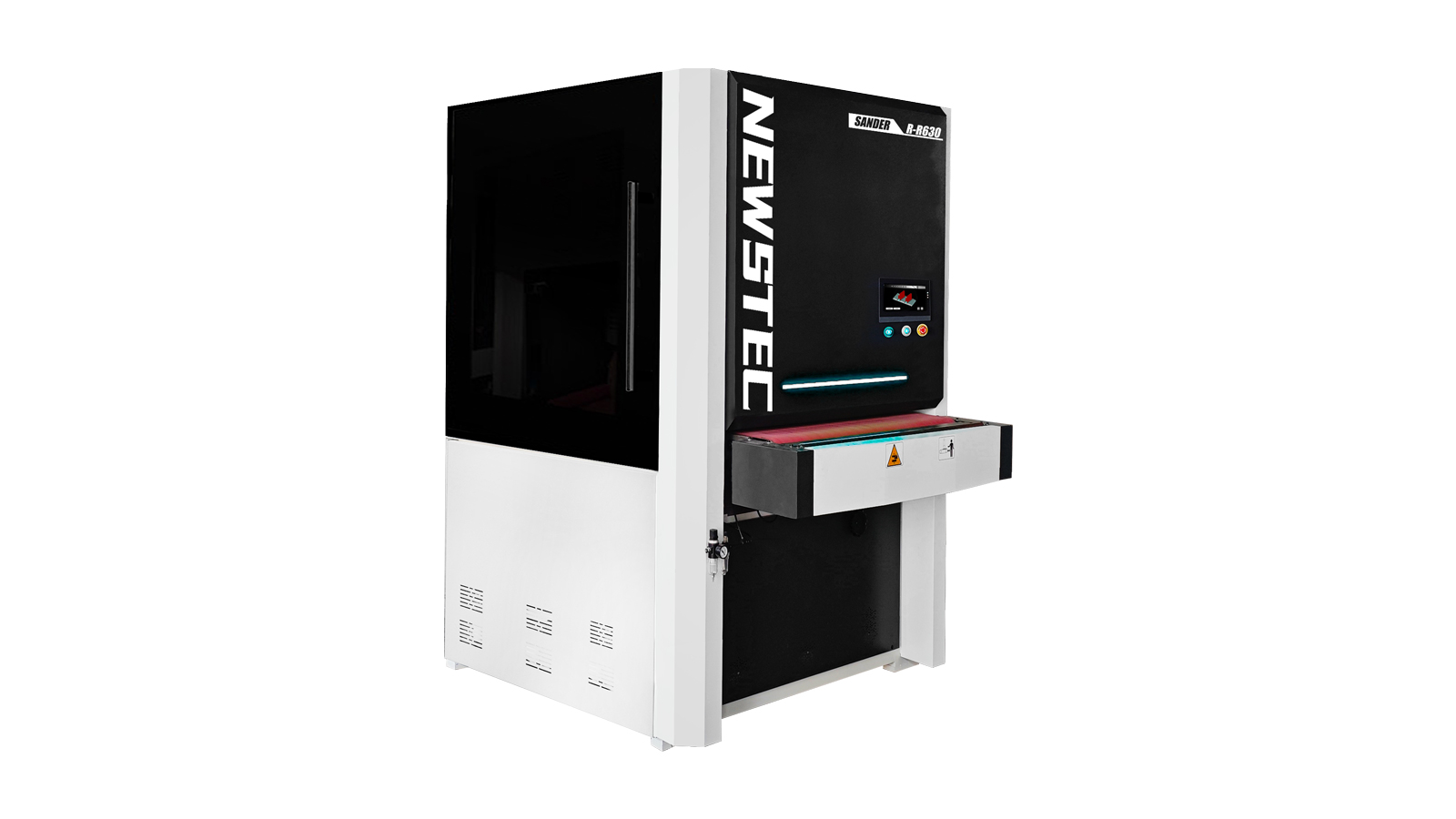

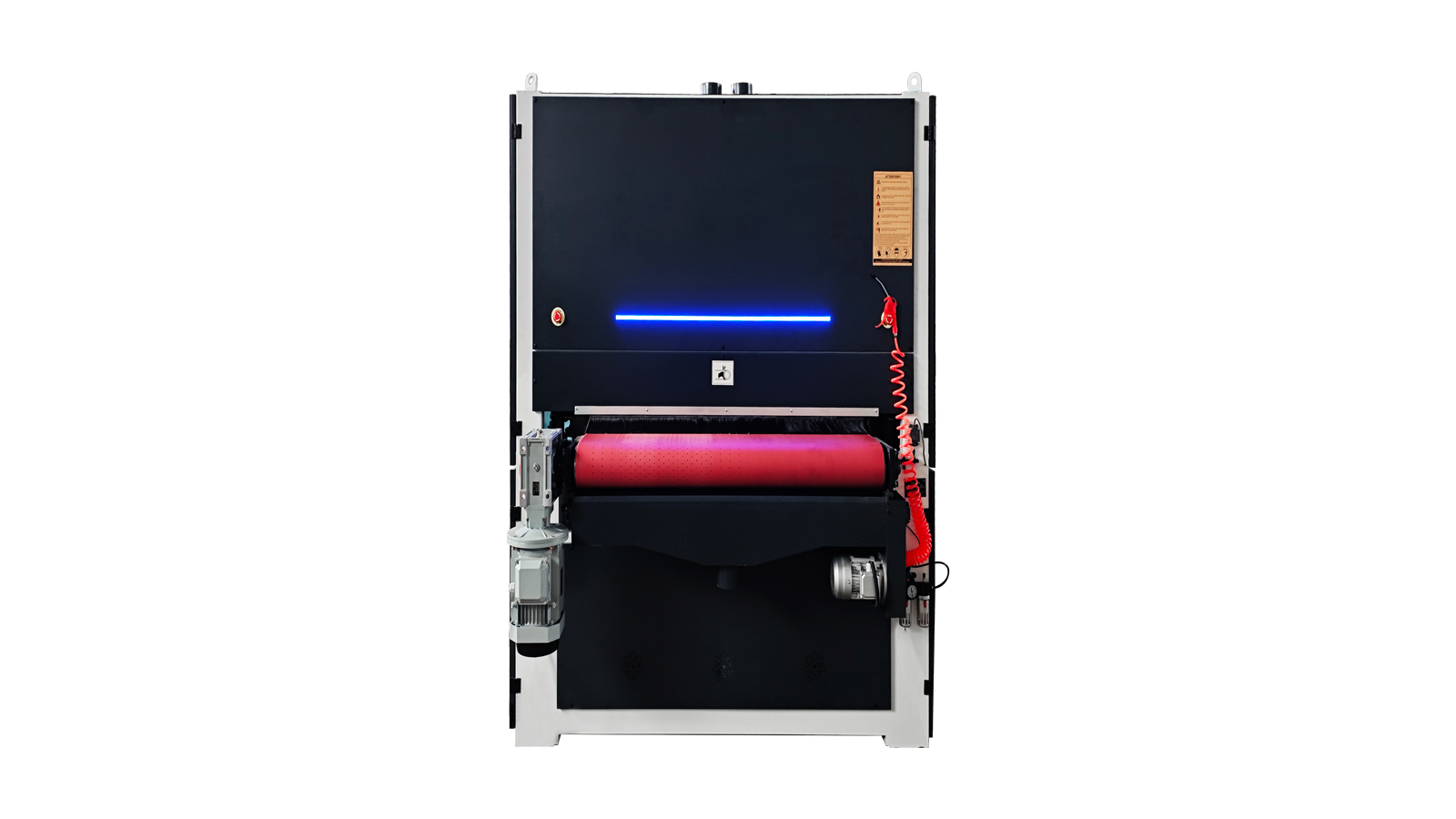

630mm Wide Belt Metal Sanding Machine
Parameters
| Working width(mm) | 630 |
| Min.Working length(mm) | 300 |
| Working thickness(mm) | 0-110 |
| First motor(kw) | 11 |
| Second motor(kw) | 7.5 |
| Total Power | 19.97 |
| Transmission motor power(kw) | 1.1 |
| Abrasive belt size(mm) | 650*1900 |
| Overall dimensions(mm) | 1800*1200*2100 |
| Weight(kg) | 1300 |
product description
Aiming at the burr produced in the process of stamping, shearing, laser machine cutting, plasma cutting and so on, it can remove the burr in all directions at one time, and the processing process is safe and reliable, so that the workpiece can achieve the perfect effect.
The conveying speed is adjustable by frequency conversion, and the conveying table is equipped with automatic lifting function.
High friction roller +magnetic adsorption, so that the feed has a double guarantee.

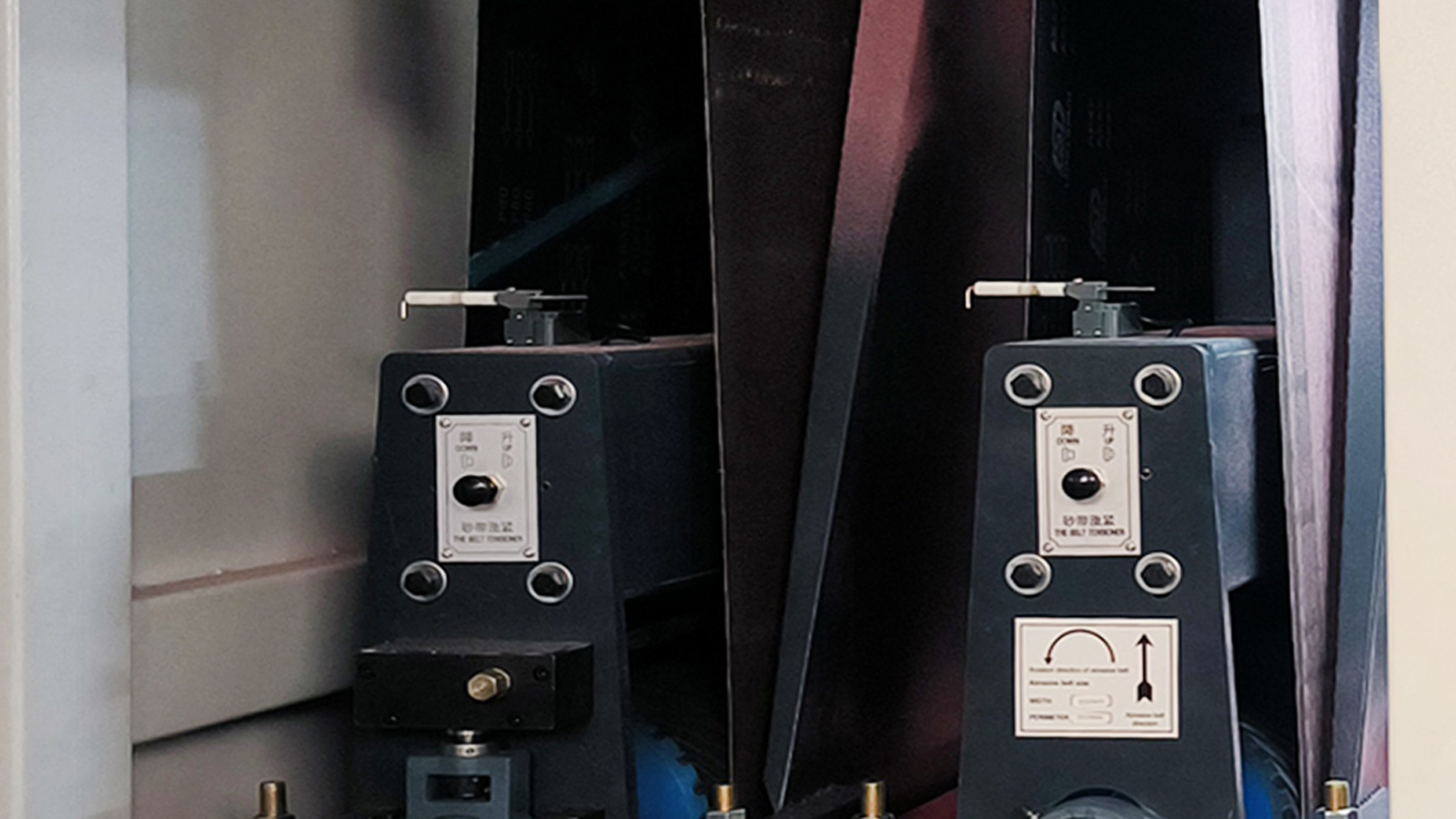

Sand belt automatic correction ensures stable operation and processing effect.
Use of commercially available consumables without special customization or purchase from designated suppliers
Rust removal, deburring, oxidation removal, wire drawing grinding and polishing of the metal plate.
-

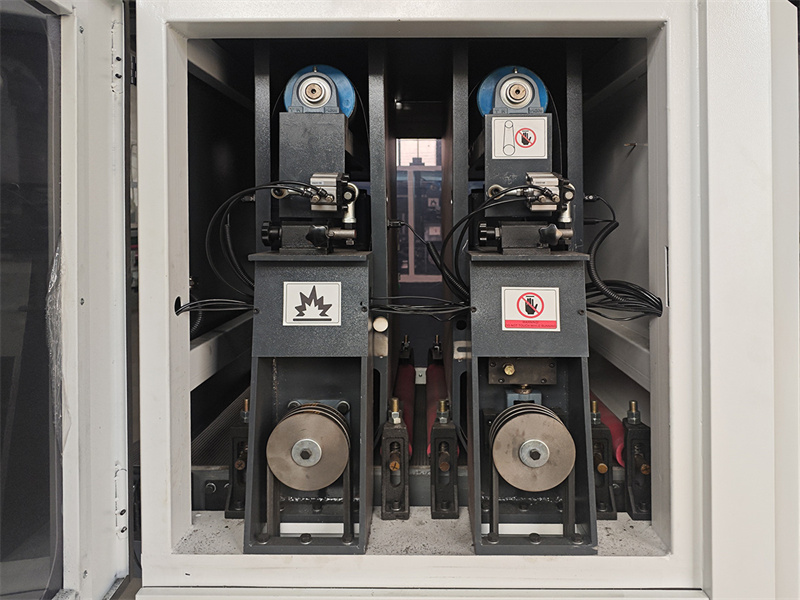

SANDING BELT
By grinding the stainless steel, carbon steel, molybdenum plate, etc., cleaning the plate due to laser cuting, stamping burs, grinding to remove the oxide layer, deburing, so as to show the metal bright surface, processing plate width 600mm, 1000mm, 1300mm, 1600mm, etc.
-

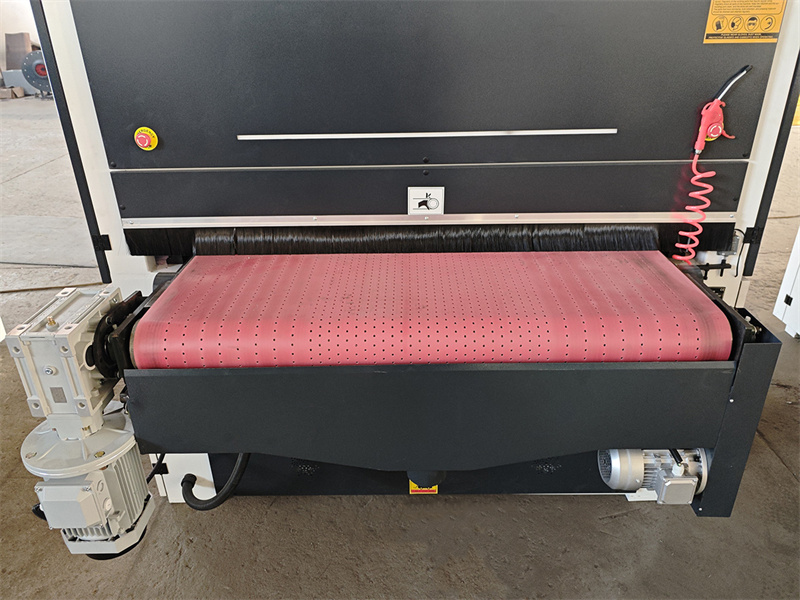

CONVEYOR BELT
Working table for the thickened marble, conveyor belt for five layers of rubber material, not afraid of rain, not afraid of sun, long service life.
-

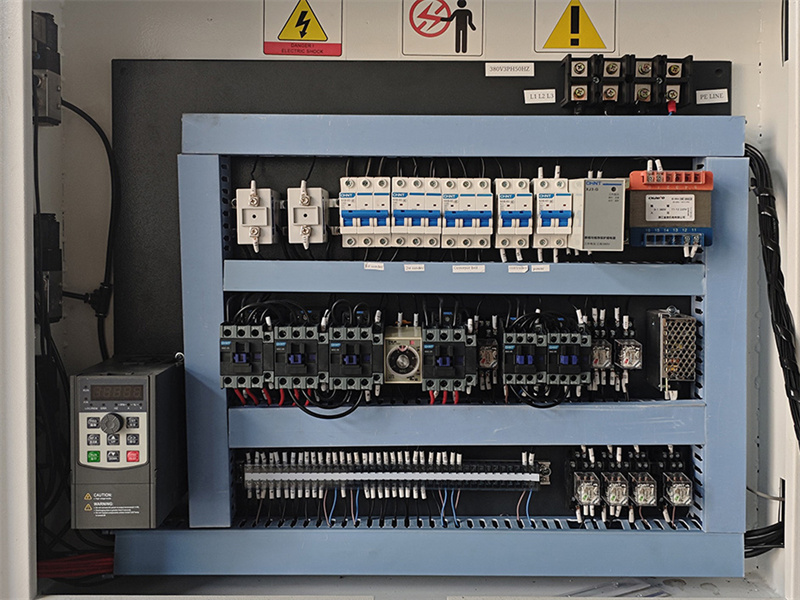

INTERNAL CIRCUIT
All the electrical parts are made of Chint electric appliances with stable performance. The machine internal wire connection is clear, no clutter.
-
CONTROL PANEL
The control panel is simple and clear, the self-reset control button has high control precision and easy operation.
Video

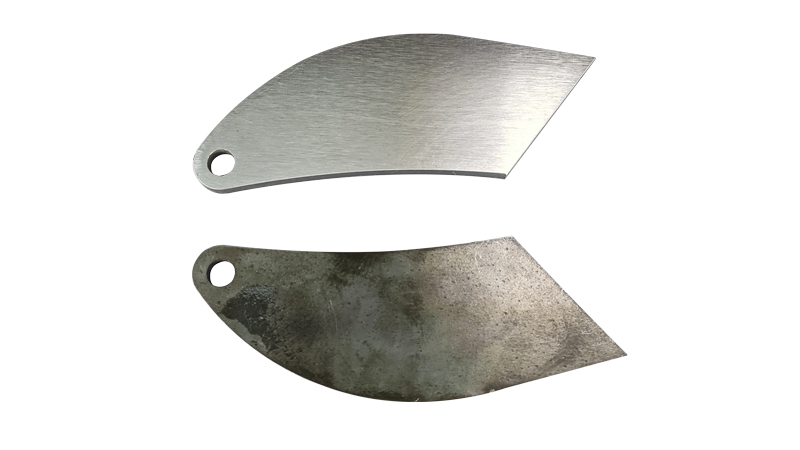

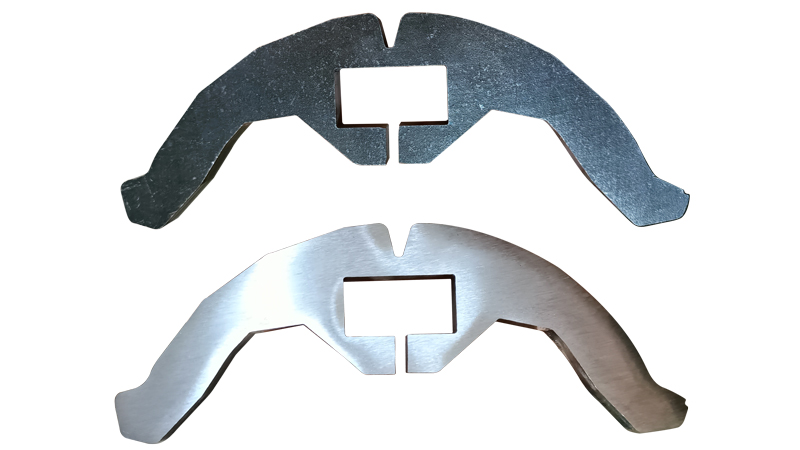

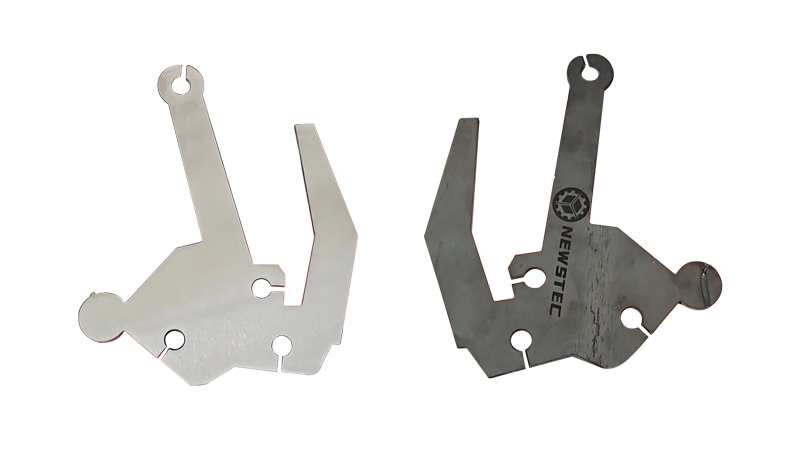

Application
Rust removal, deburring, oxidation removal, wire drawing grinding and polishing of the metal plate.
