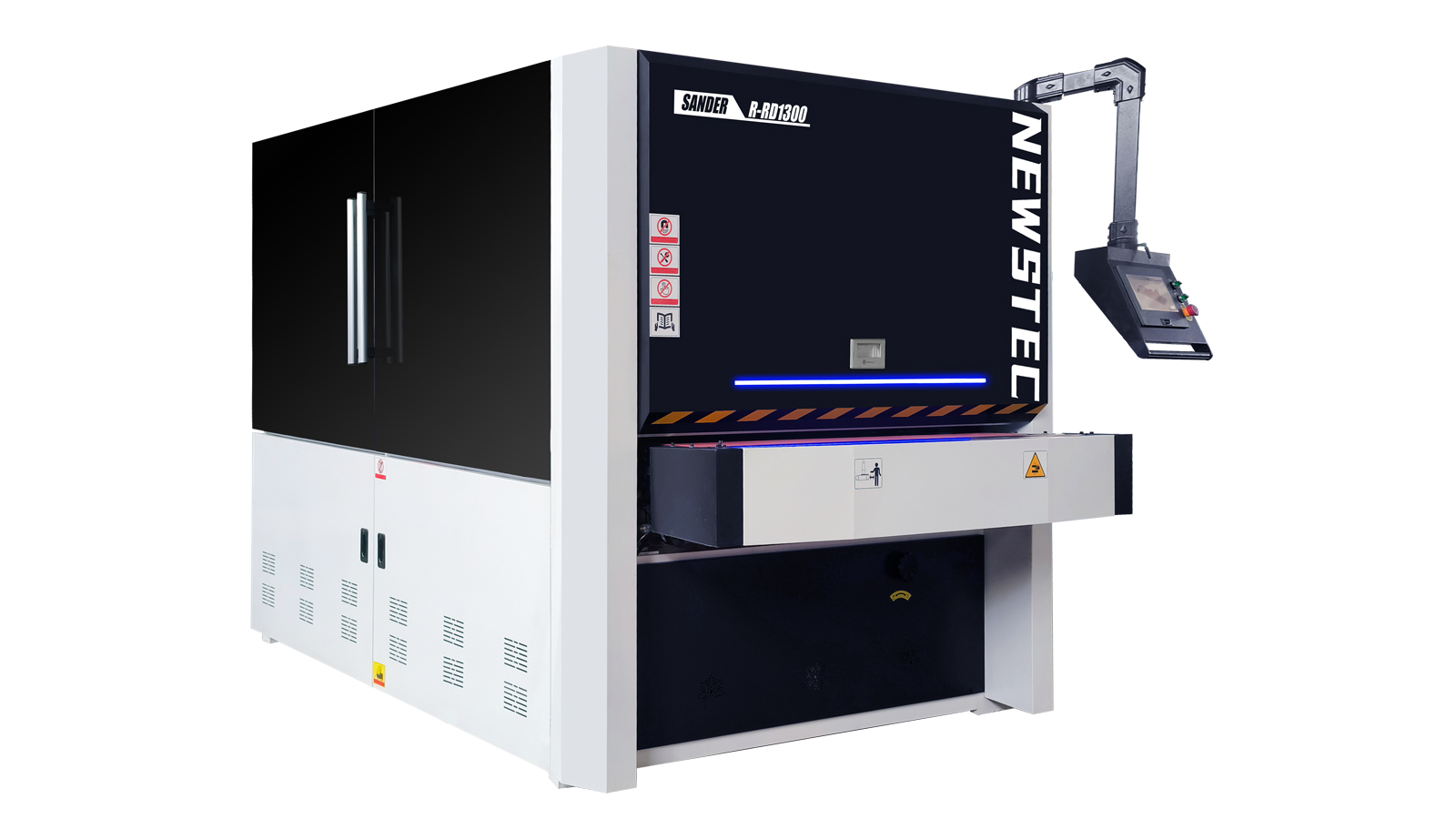

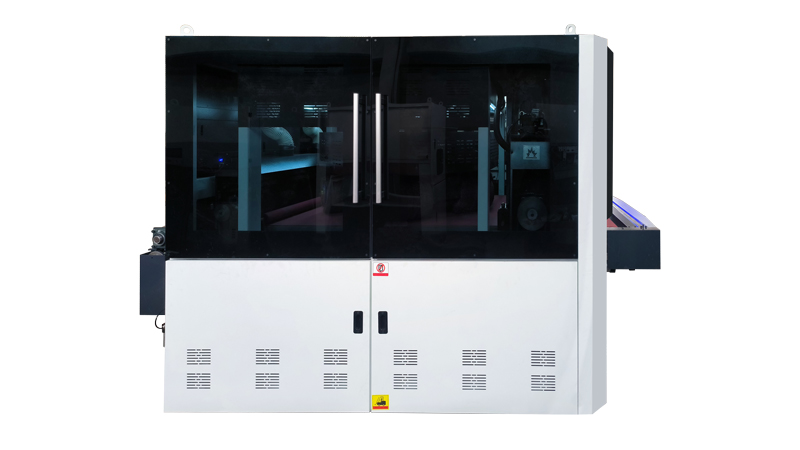

1300mm Metal Sheet Polishing And Deburring Machine
Parameters
| Working width（mm） | 1300 |
| Min.Working length（mm） | 300 |
| Working thickness（mm） | 0-100 |
| Abrasive belt motor（kw） | 18.5 |
| Rotary brush motor power（kw） | 2.2X3 |
| Total Power | 44kw |
| Transmission motor power（kw） | 4 |
| Lift motor power | 0.55 |
| No.1 unit of belt shelf | 210mm |
| Adsorption | 11kw 2900RPM |
| Controller system | Delta PLC |
| Rotary brush size(mm) | 300x300x25 |
| Rotary brush quantity | 6 |
| Voltage | 220v/380V3PH |
| Power | 50/60HZ |
| Abrasive belt size（mm） | 1320*2020mm |
| Overall dimensions（mm） | Machine :2700*2300*2100mm Vacuum pump :1000*1000*2000mm |
| Gross Weight(with wooden case)（kg） | 3200KGS |
product description

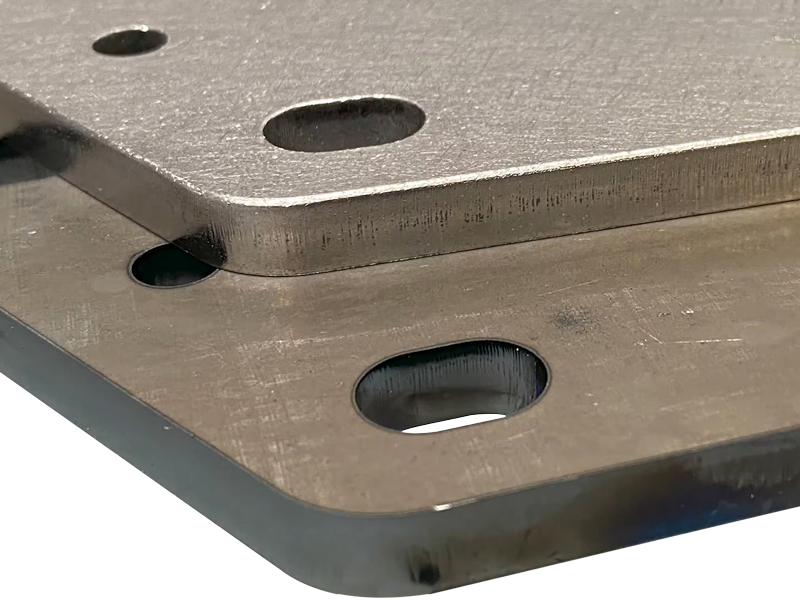

Matching laser cutting machine, CNC stamping, a variety of CNC processing or other machining deburring edge production line, equipment through linear processing, multiple groups of sand line wheel rotation, revolution, alternating, can truly uniform removal of parts surface, contour edge and hole edge burr and uniform chamfering.

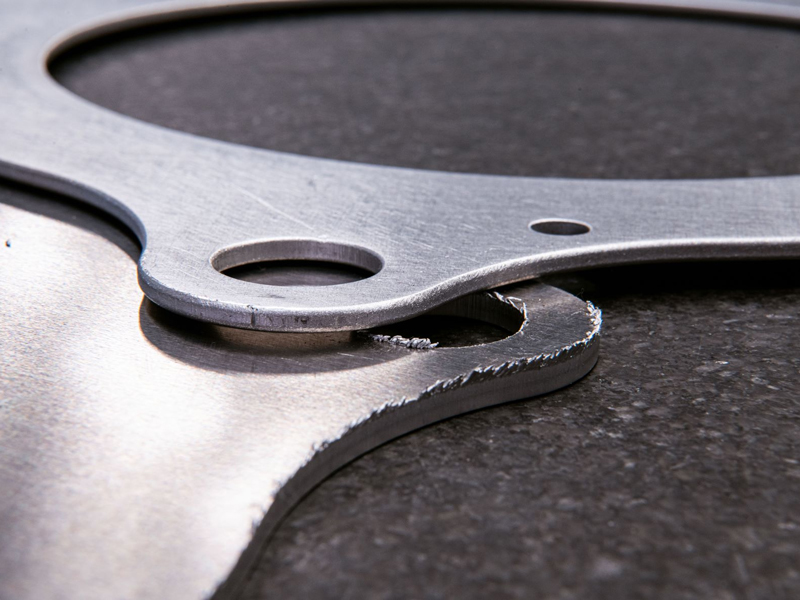

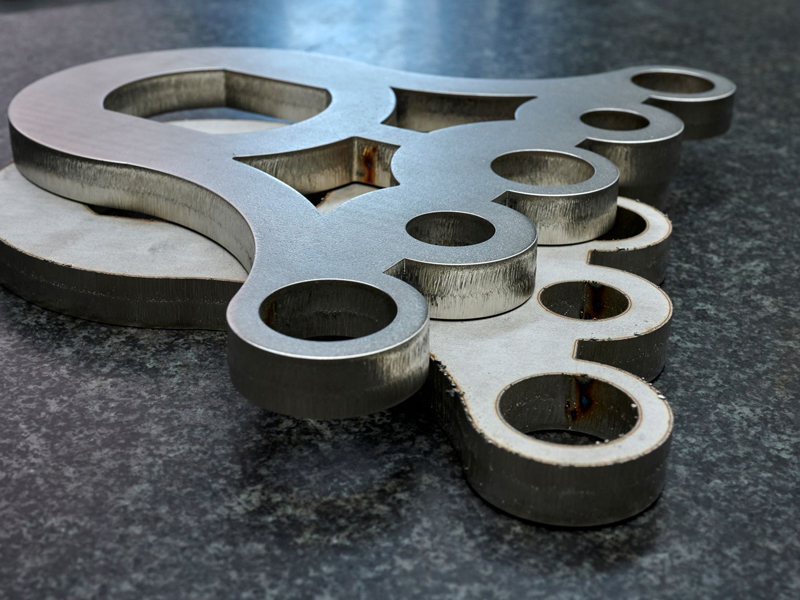

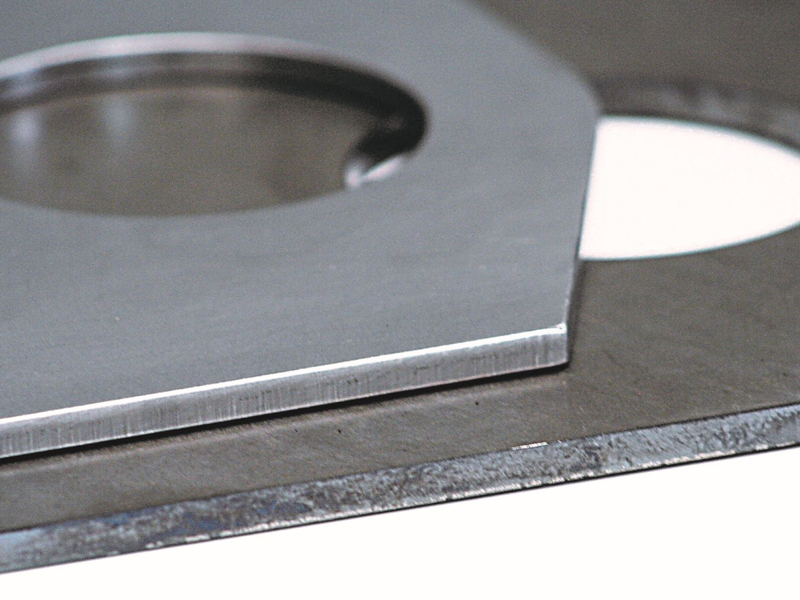

In any cutting, drilling, laser, mill, and other machining processes, burrs, hot slag, and scum will be produced at the edge of the workpiece, so it is particularly important to choose the correct deburring machine.
-

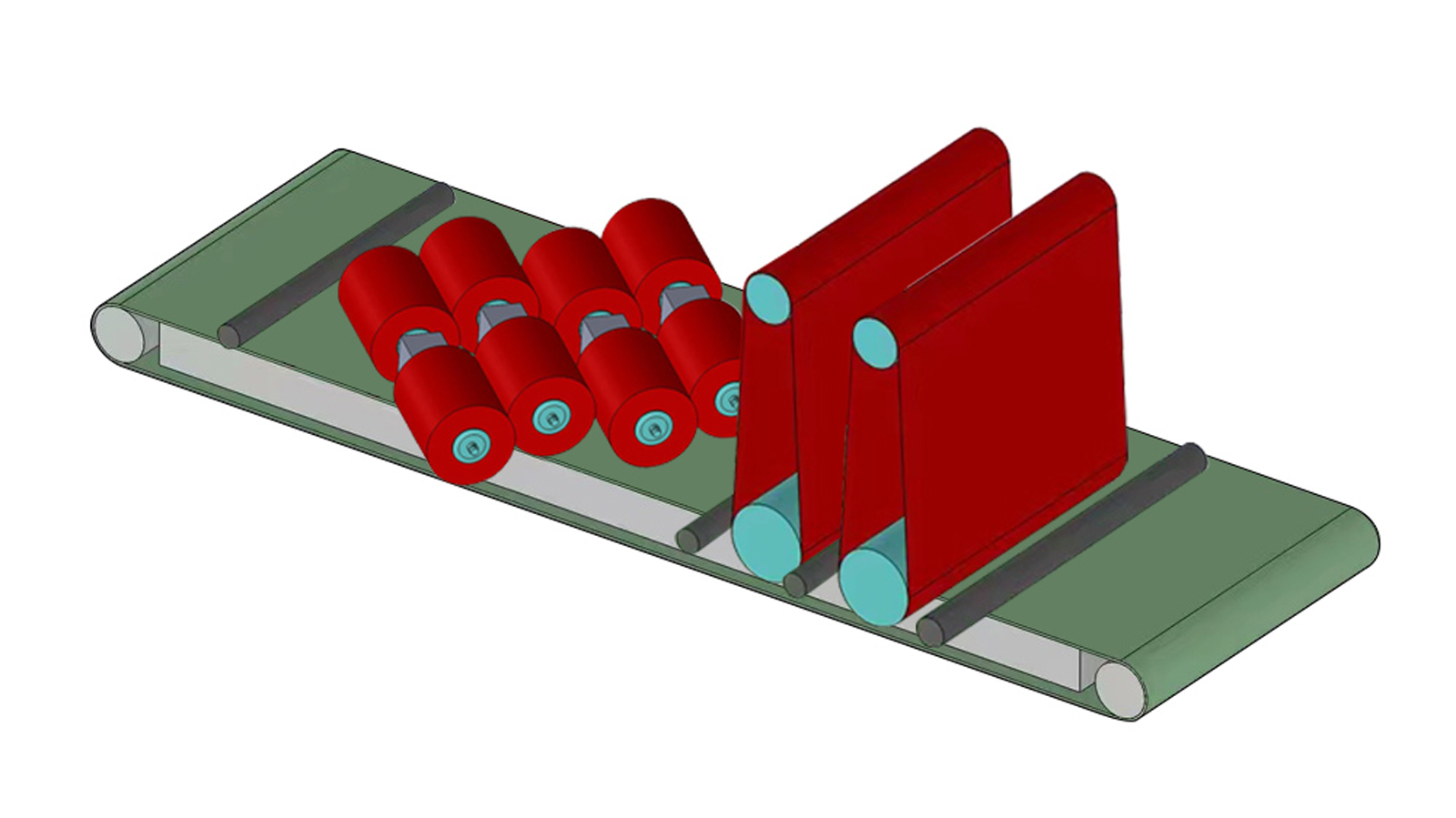

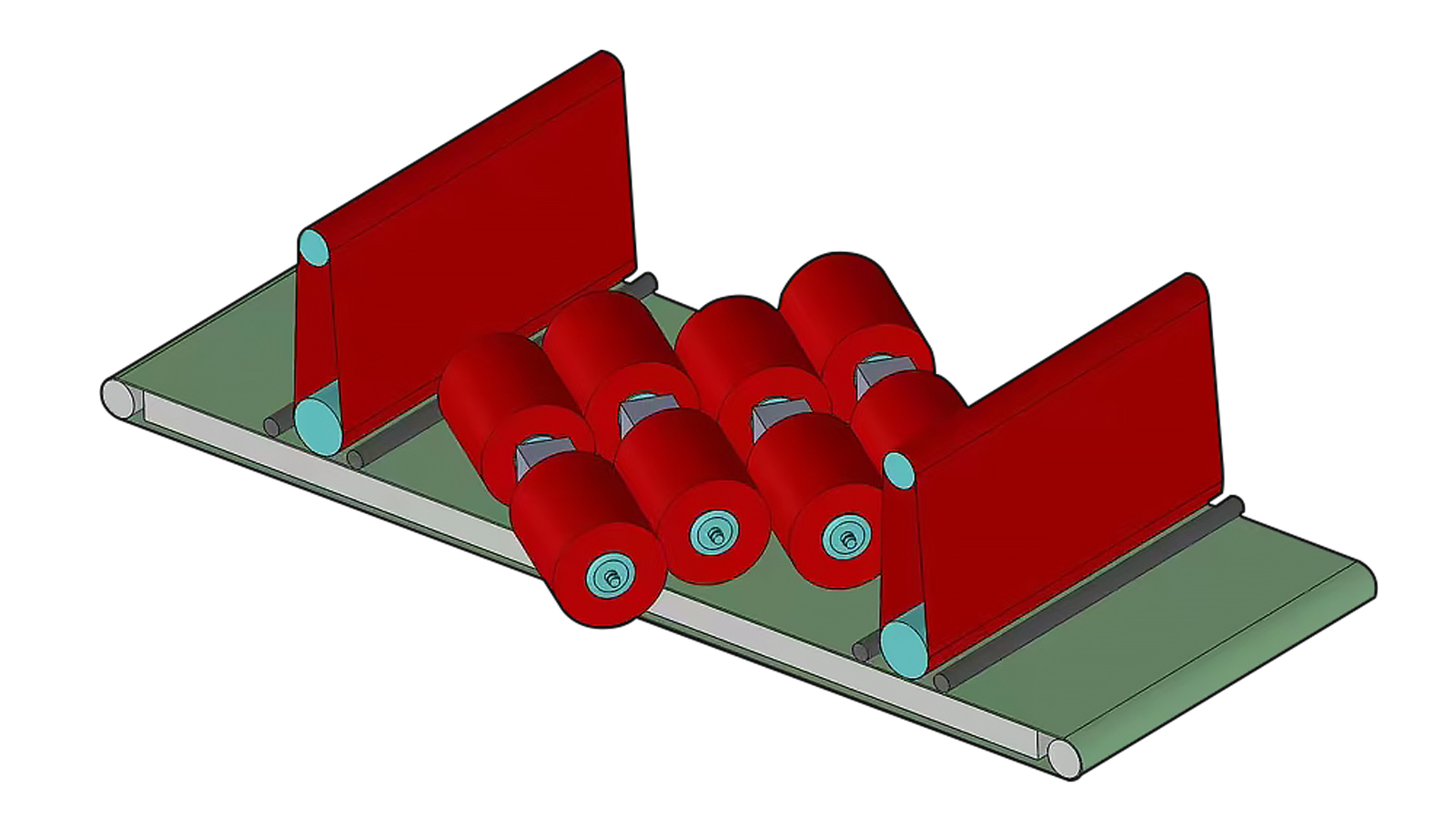

UNITSTRUCTURE

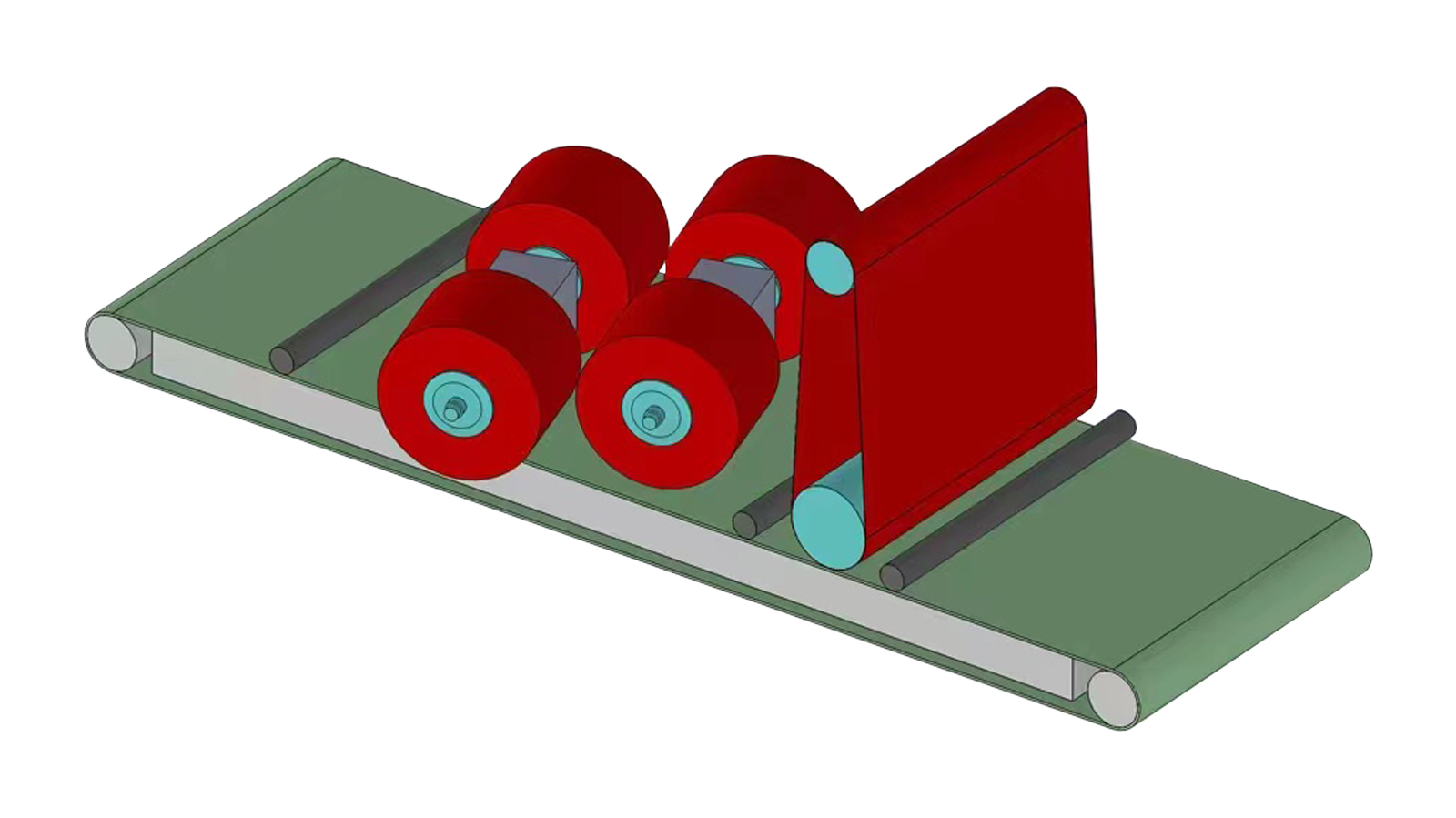

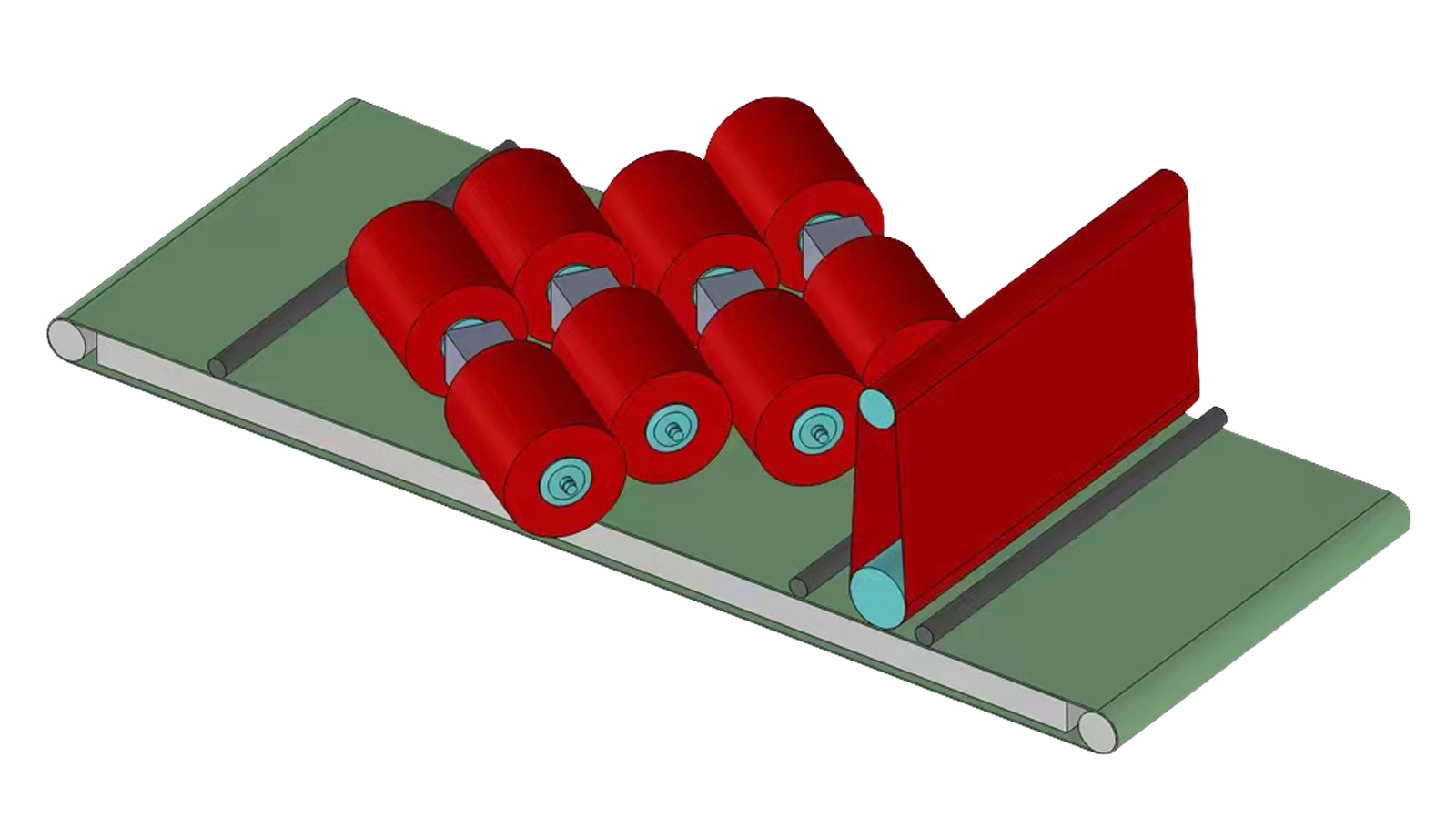

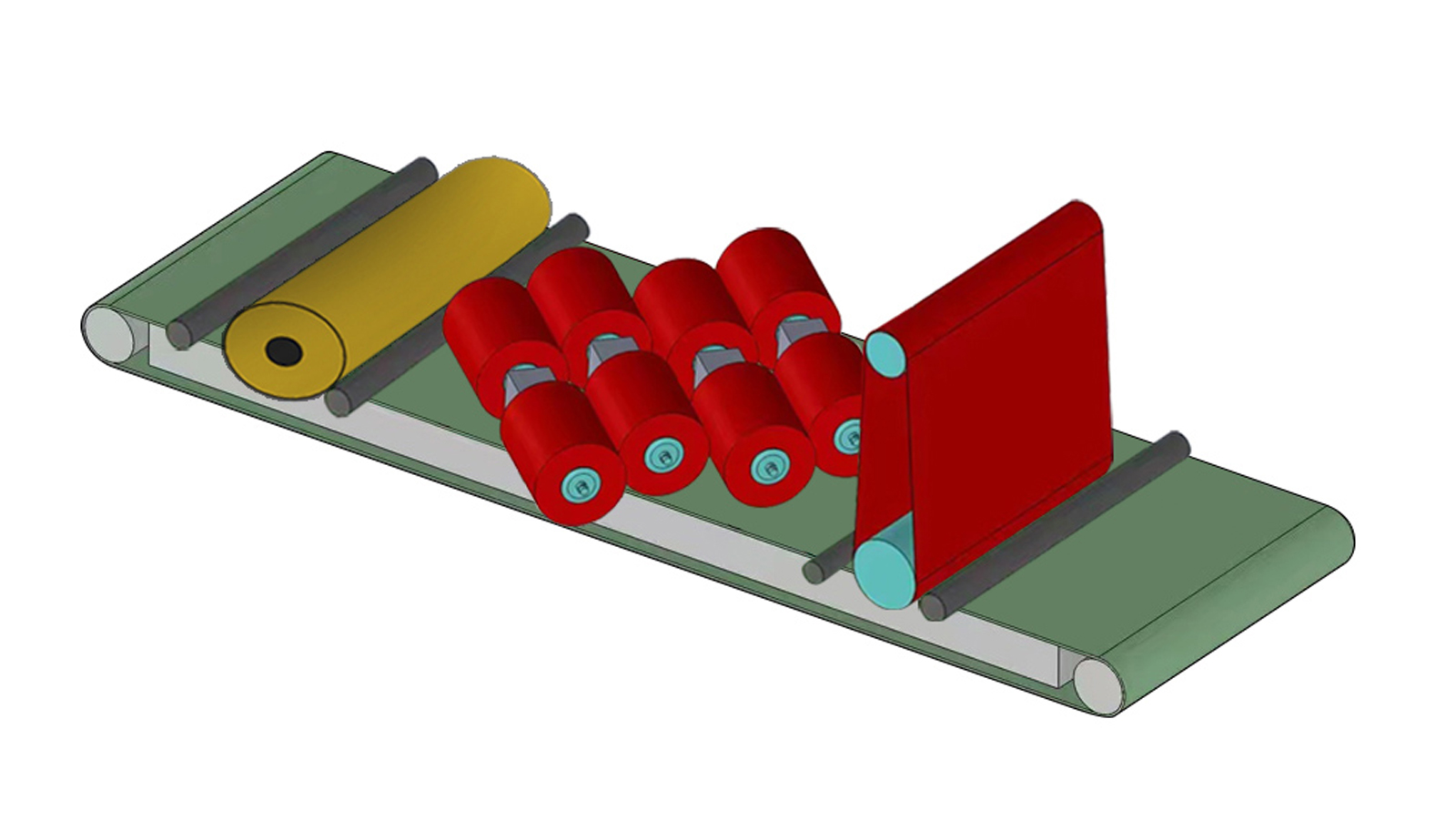

Each unit is independently controlled and can be combined as needed.
-

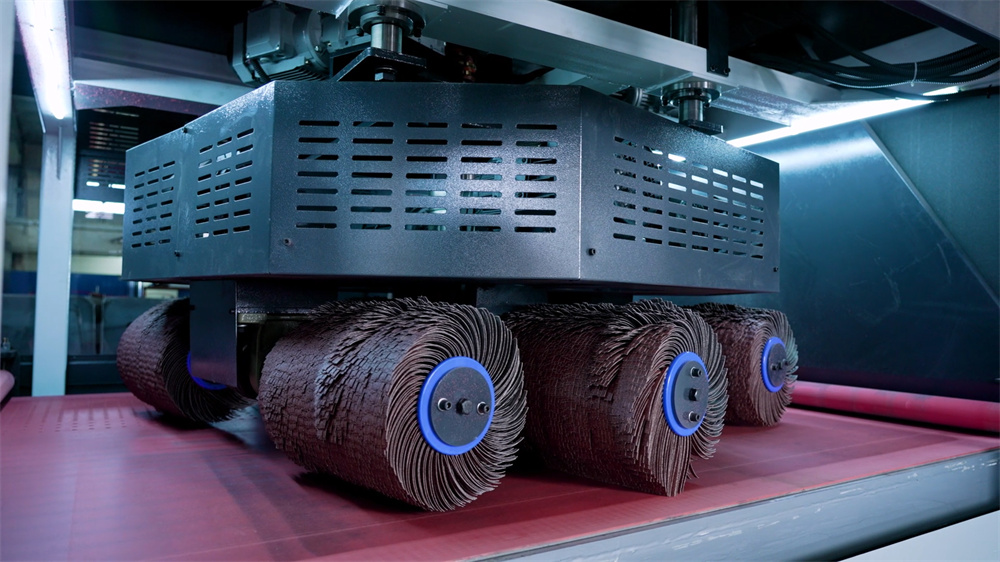

RUAR

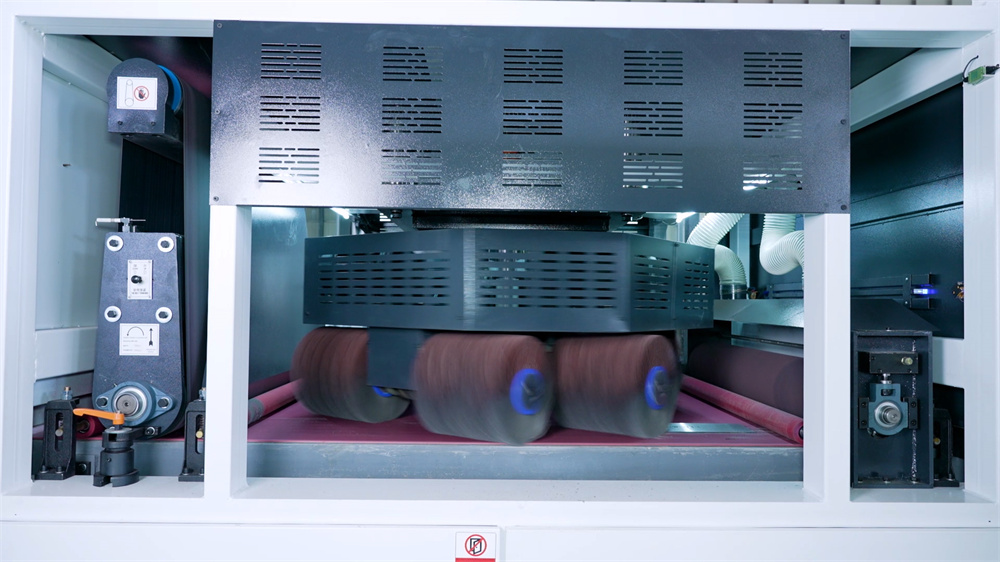

Deburring, chamfering and finishing of internal and external contours.
-

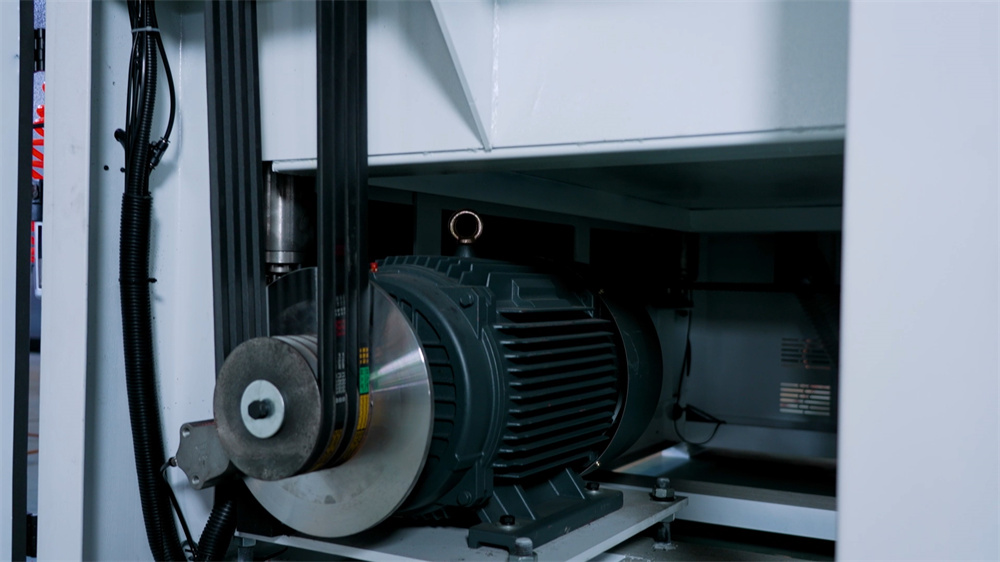

MUTDR
Copper core motor, stable and durable, long service Ife.
-
PLATFORM LIFTING

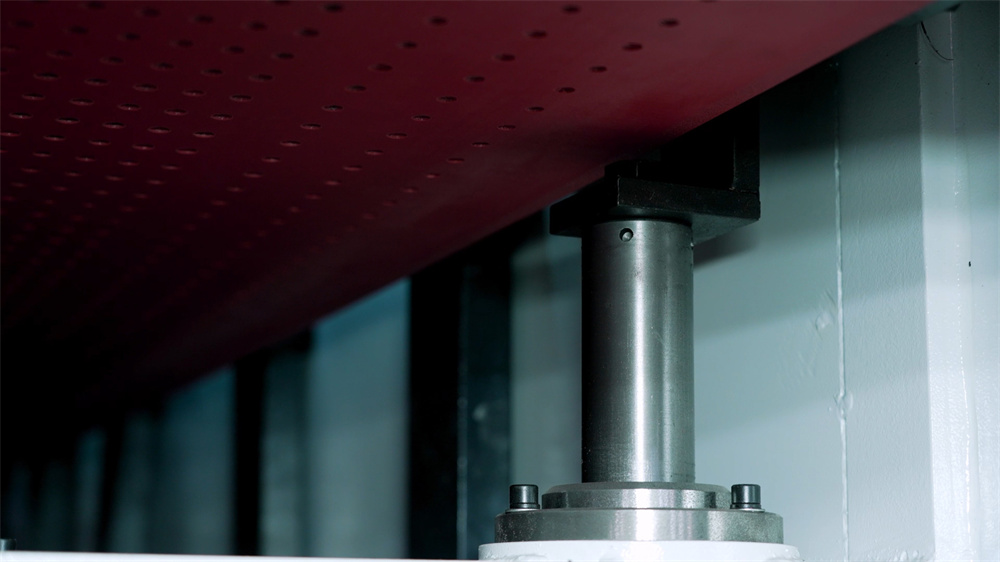

0-100mm lifting platform precise lifting, high stability and large load-bearing capacity.
Video
Application
The application scope of the equipment: It is suitable for flat panel parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber and plastic materials, etc.
