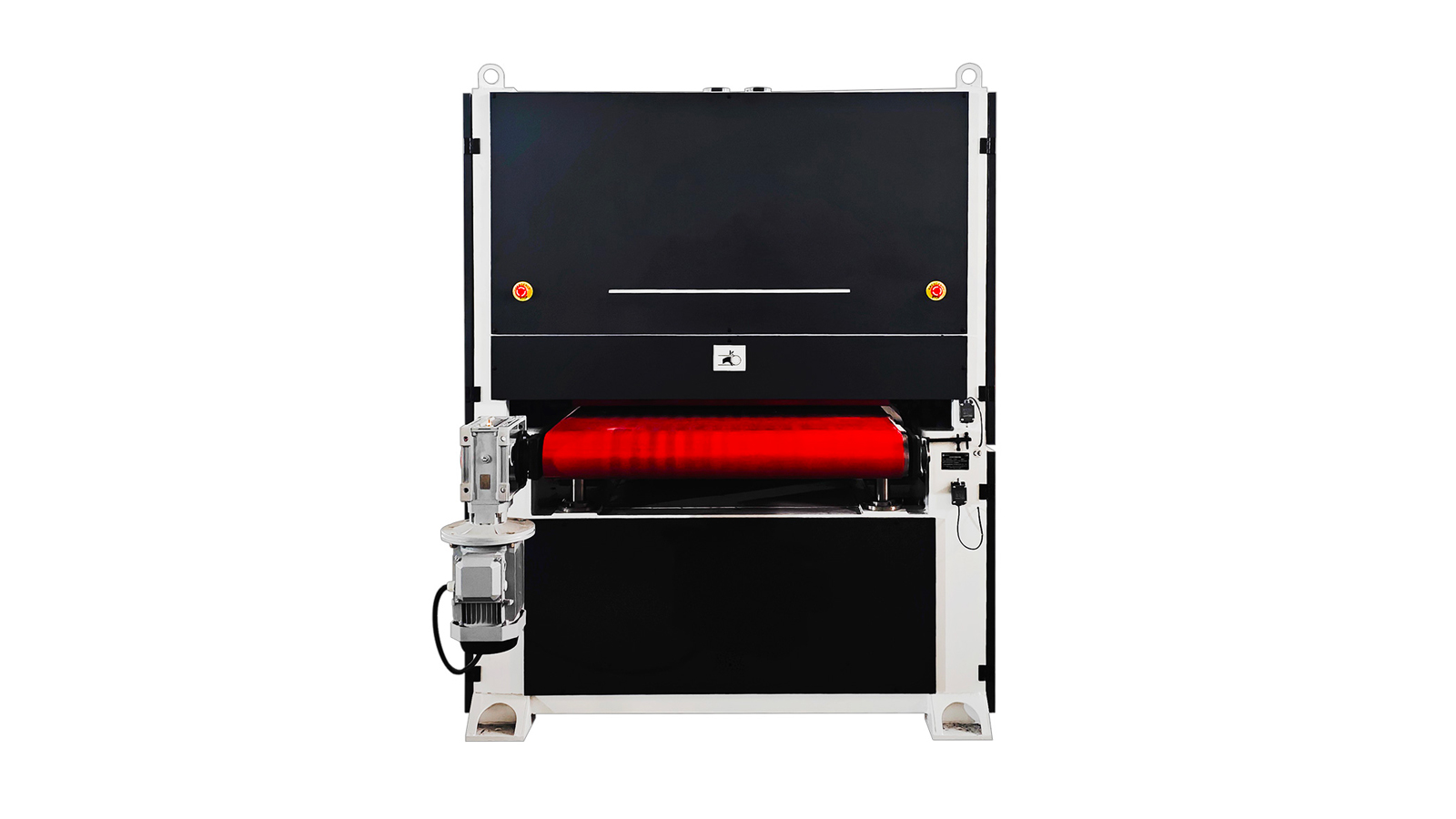

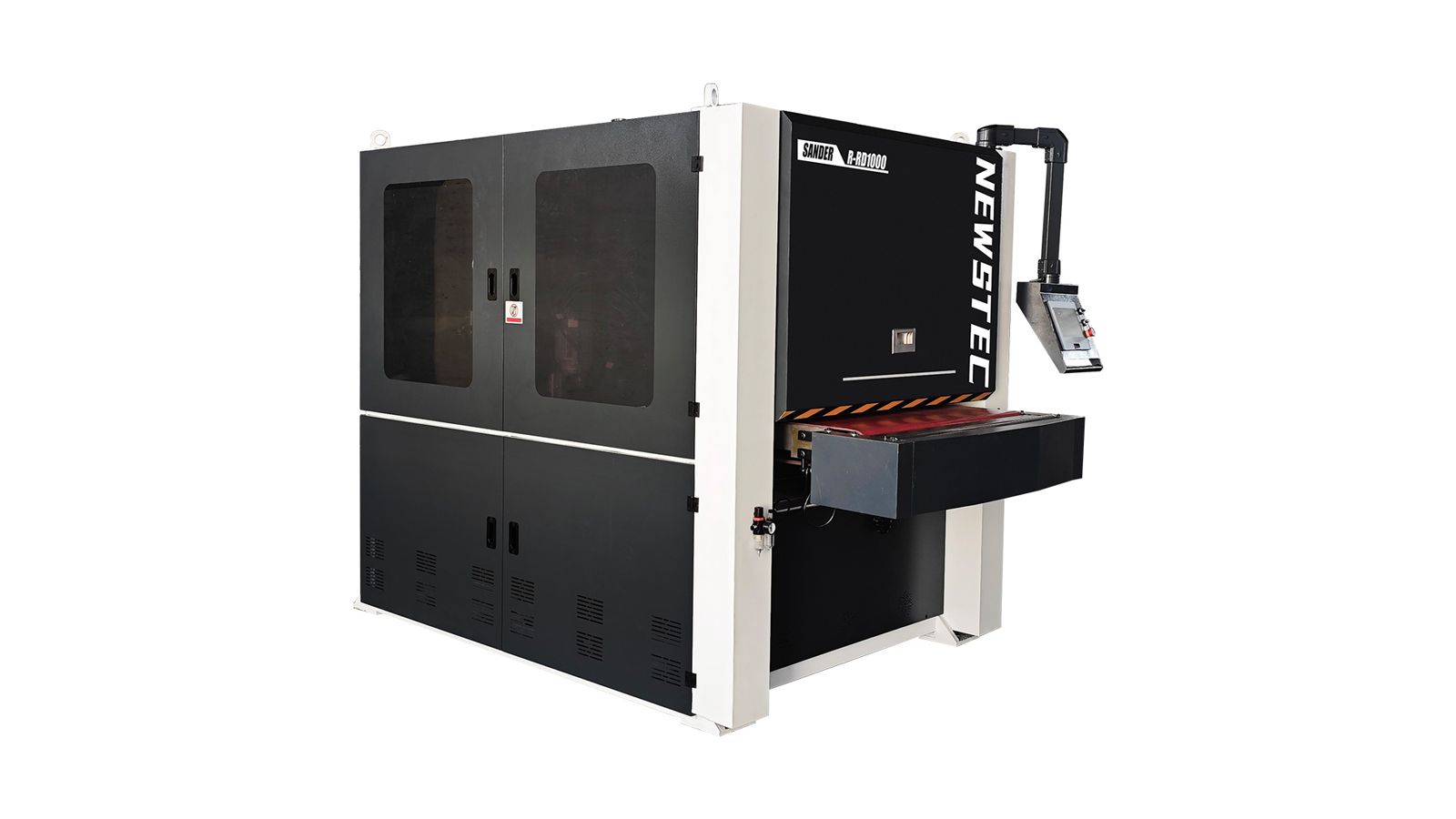

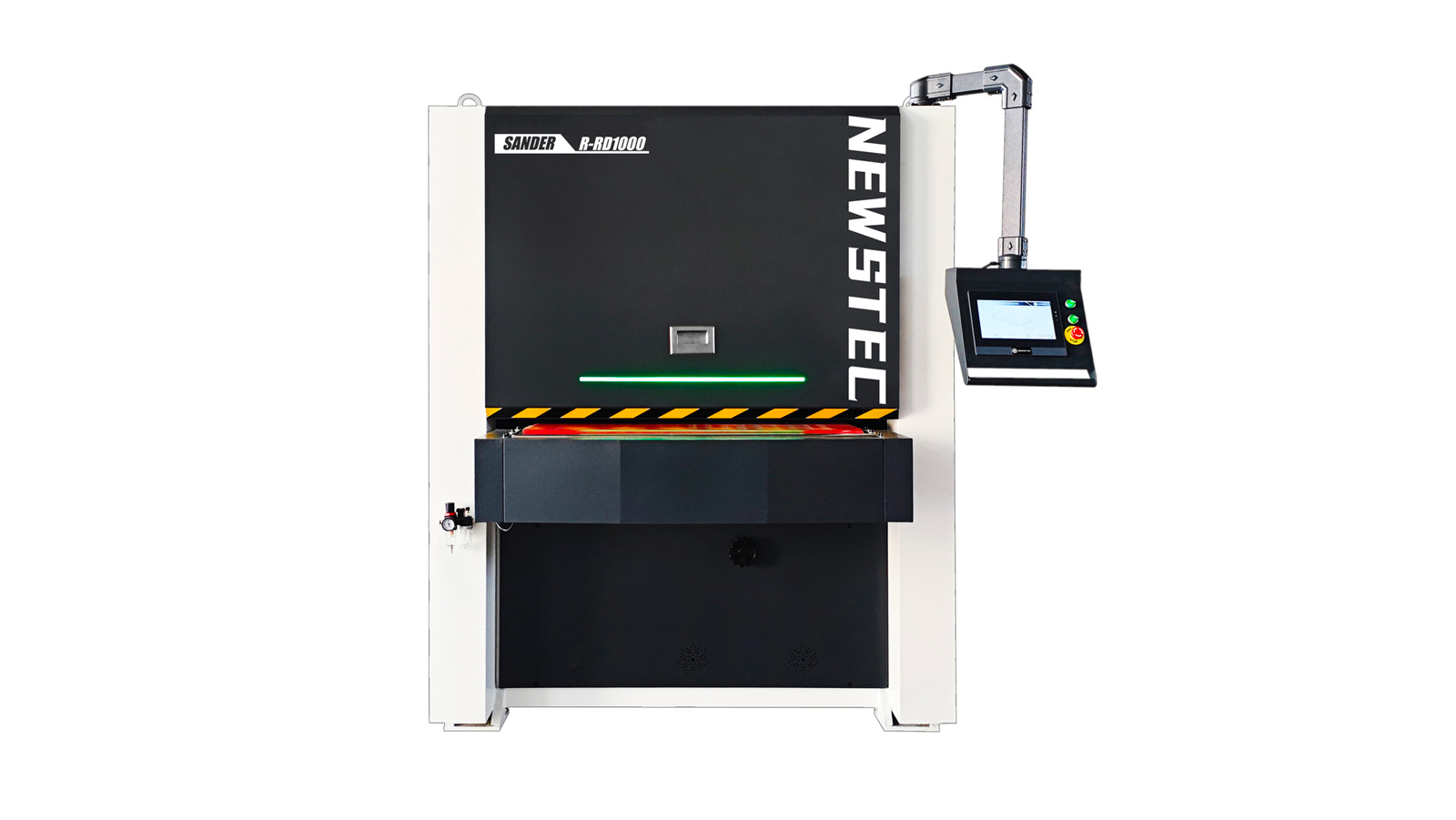

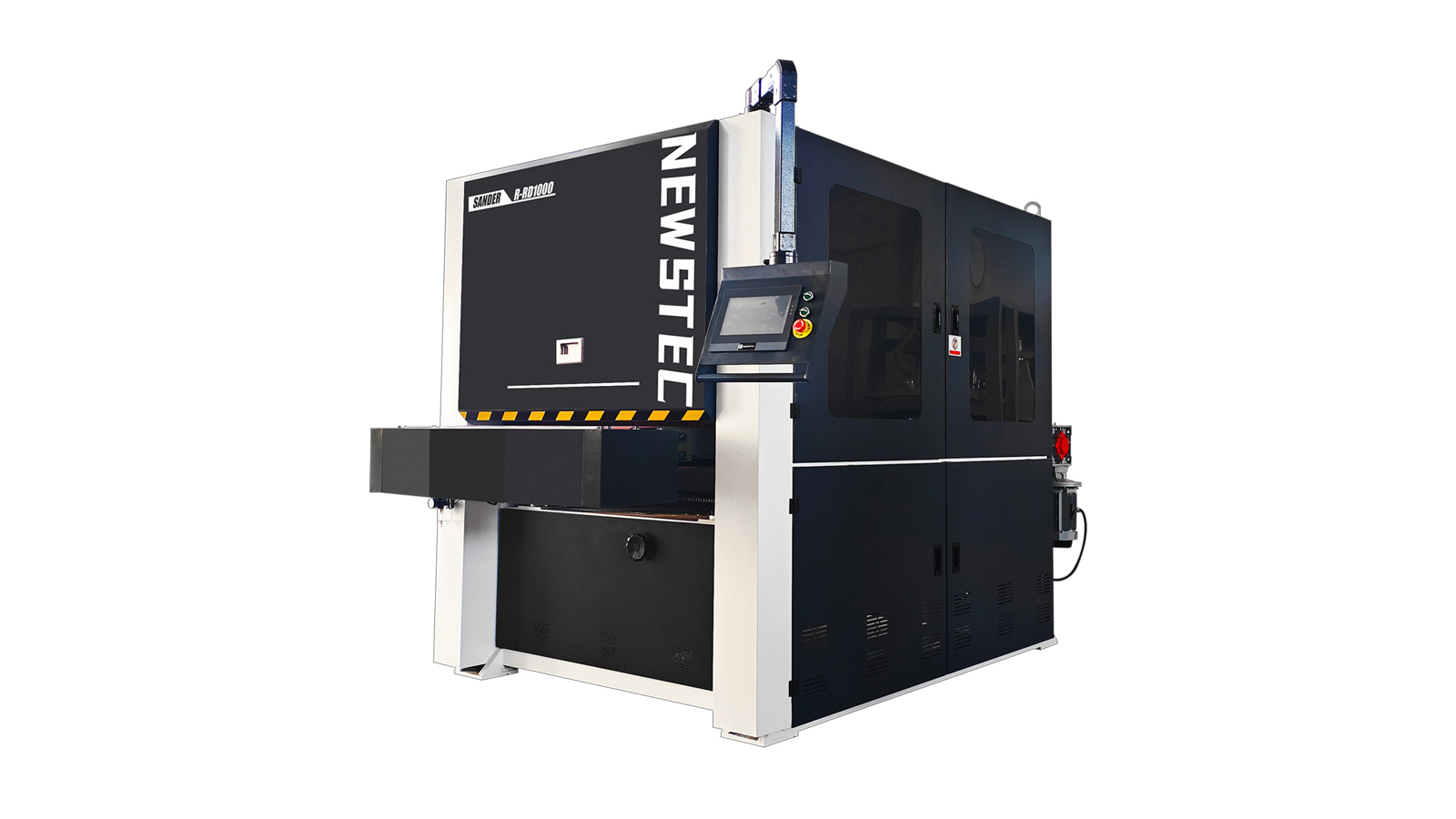

1300mm Metal Deslagging Sanding Machine

A metal deslagging machine, also known as a slag removal machine, is used to remove slag (excess material) from metal parts, particularly after processes like plasma or flame cutting. These machines are crucial for achieving a smooth, clean finish and preparing metal components for subsequent manufacturing steps.

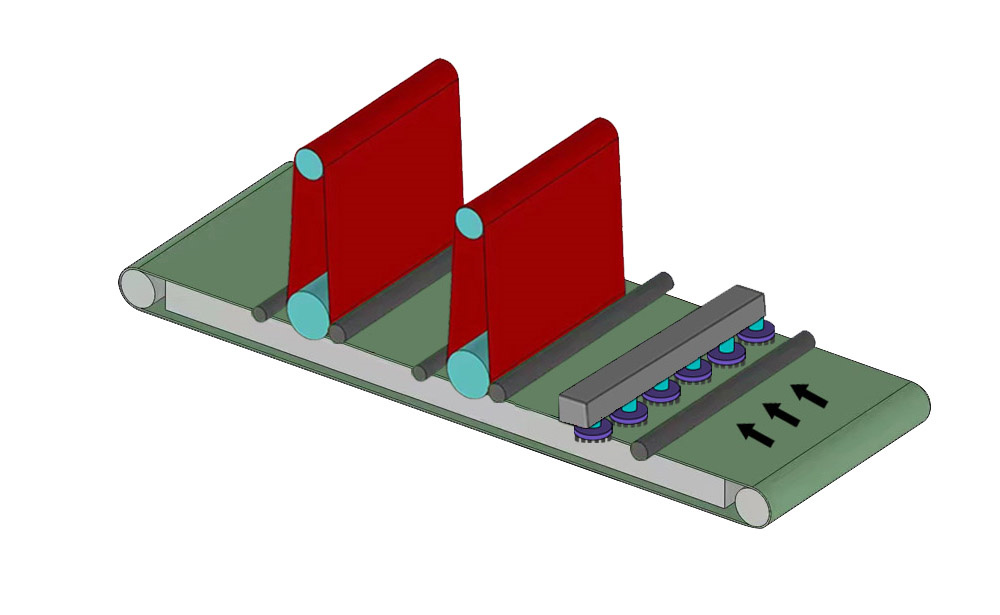

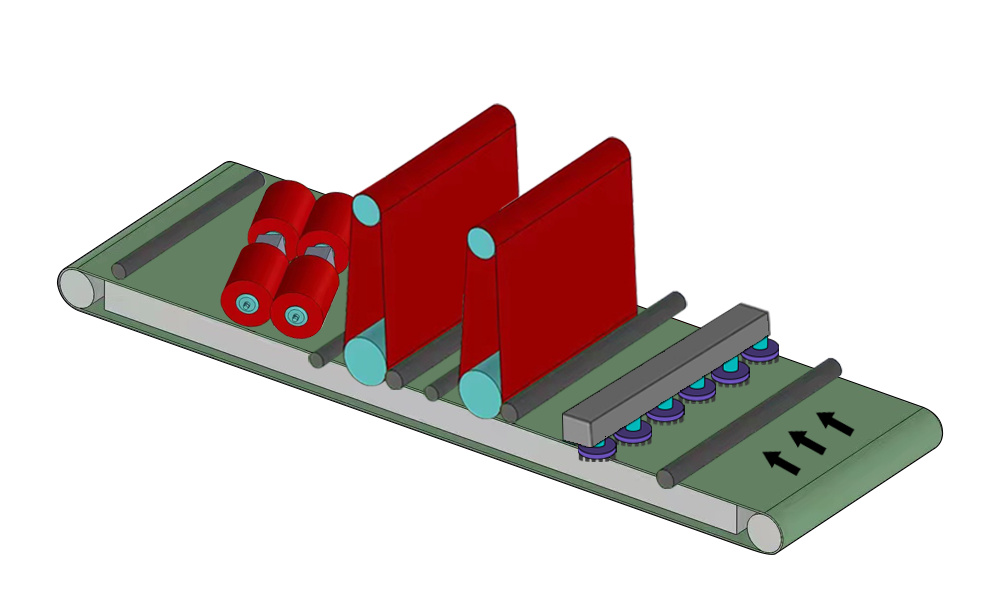

Workstation Display

0102

product details

Parameters

Working width（mm）	1300
Min.Working length（mm）	300
Working thickness（mm）	0-100
Abrasive belt motor（kw）	18.5
Rotary brush motor power（kw）	2.2X3
Total Power	44kw
Transmission motor power（kw）	4
Lift motor power	0.55
No.1 unit of belt shelf	210mm
Adsorption	11kw 2900RPM
Controller system	Delta PLC
Rotary brush size(mm)	300x300x25
Rotary brush quantity	6
Voltage	220v/380V3PH
Power	50/60HZ
Abrasive belt size（mm）	*13202020mm**
Overall dimensions（mm）	*Machine :270023002100mm* *Vacuum pump :100010002000mm*
Gross Weight(with wooden case)（kg）	3200KGS

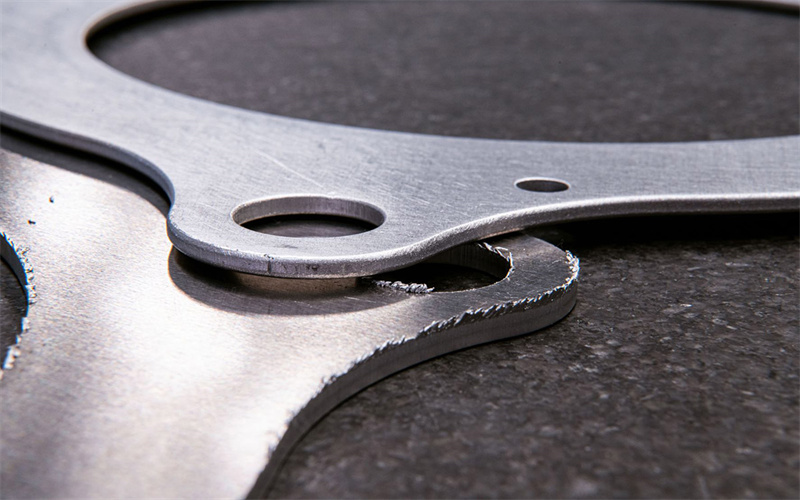

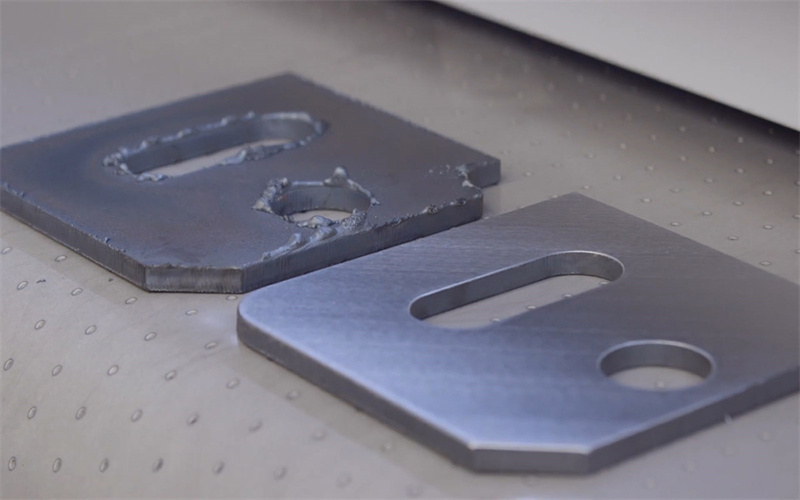

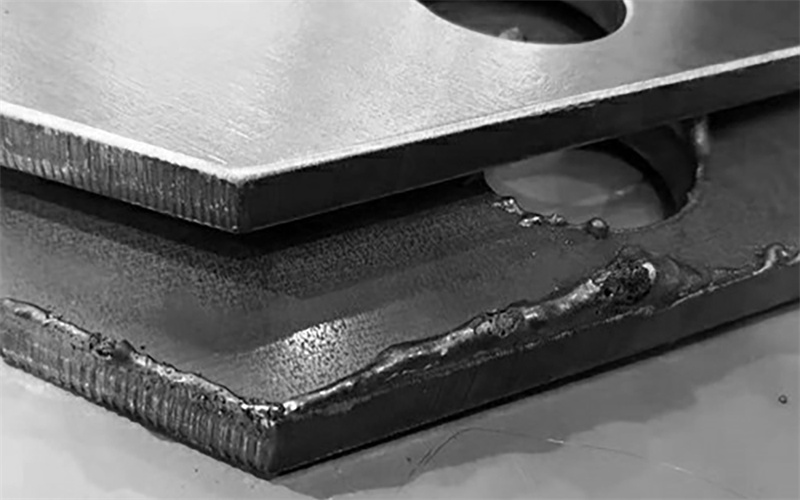

product description

Suitable for slag removal and surface grinding of thick metal plates

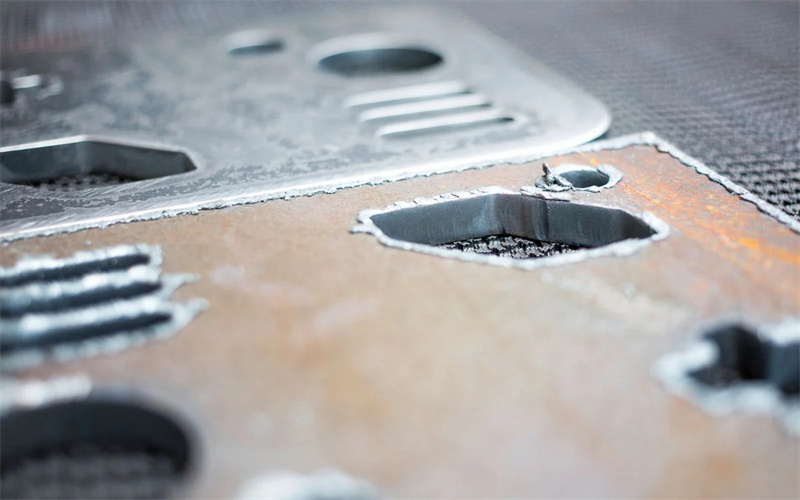

Removal of slag produced by plasma and flame cutting and laser cutting

Removal of burrs and slag on metal plates

Removal of surface oxides Precision grinding

Achieve high-quality metal surface treatment

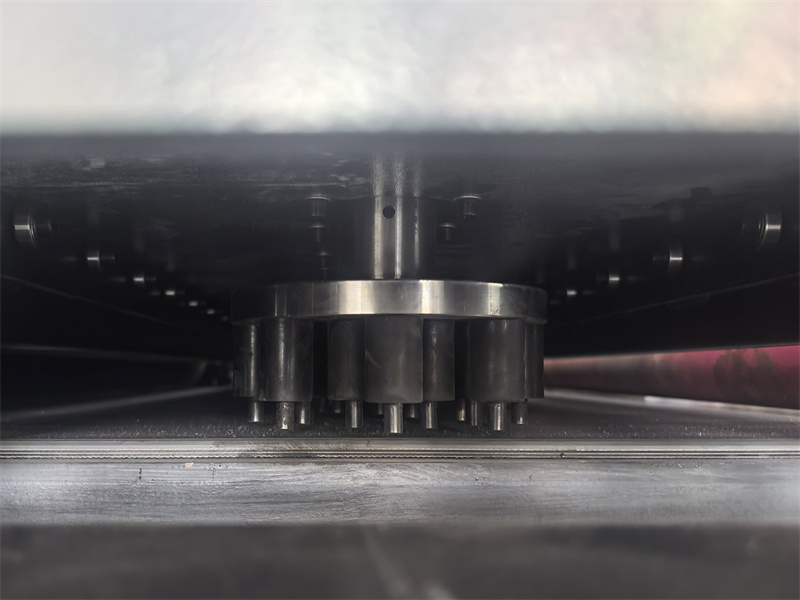

HAMMER DISC

Developed for removing slag from both sides of thick plate parts. It is ideal for flame cutting, plasma cutting and laser cutting of slag parts. Use the slag hammer to remove slag, saving time and manpower.

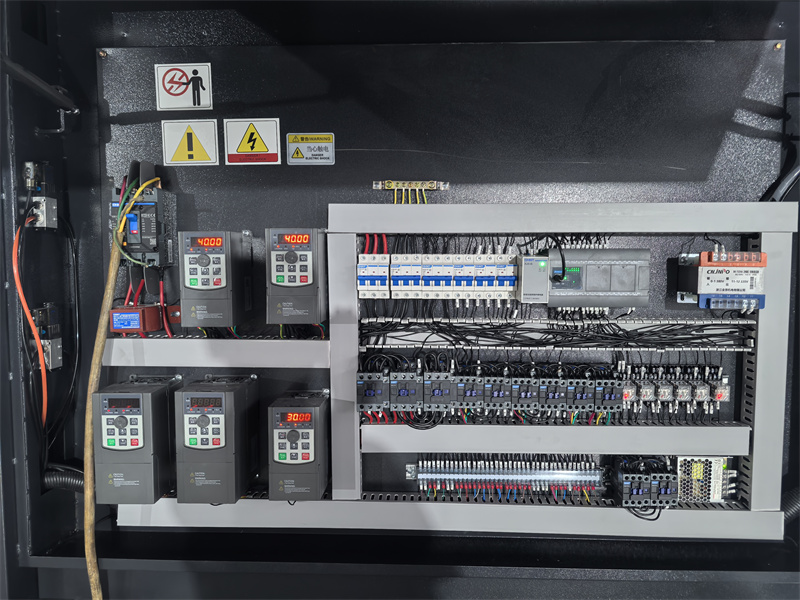

INTERNAL CIRCUITAIl

The electrical parts are made of Chint electric appliances with stable performance. The machine internal wire connection is clear, no clutter.

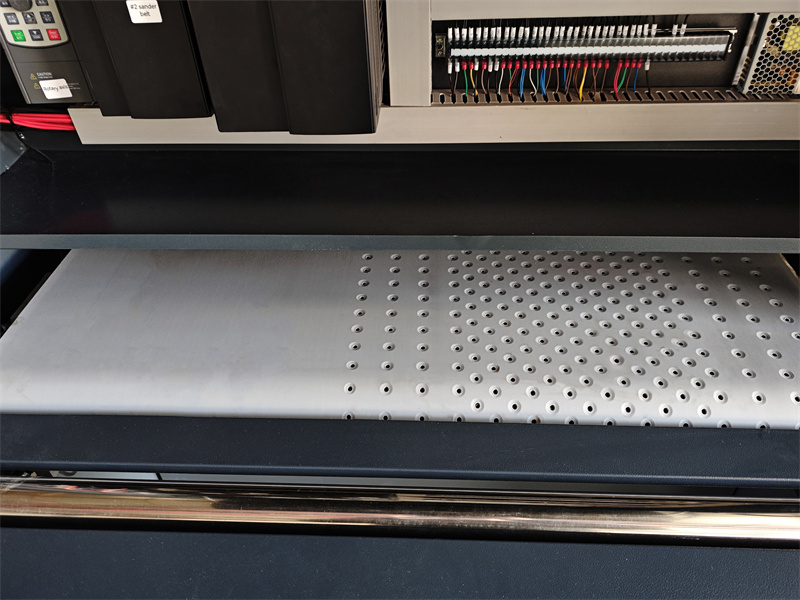

VACUUM AND MAGNETIC WORKBENCH

Safe adsorption, uniform suction, stable workpiece, improve processing accuracy, improve grinding efficiency, complete the surface processing of metal sheet.
